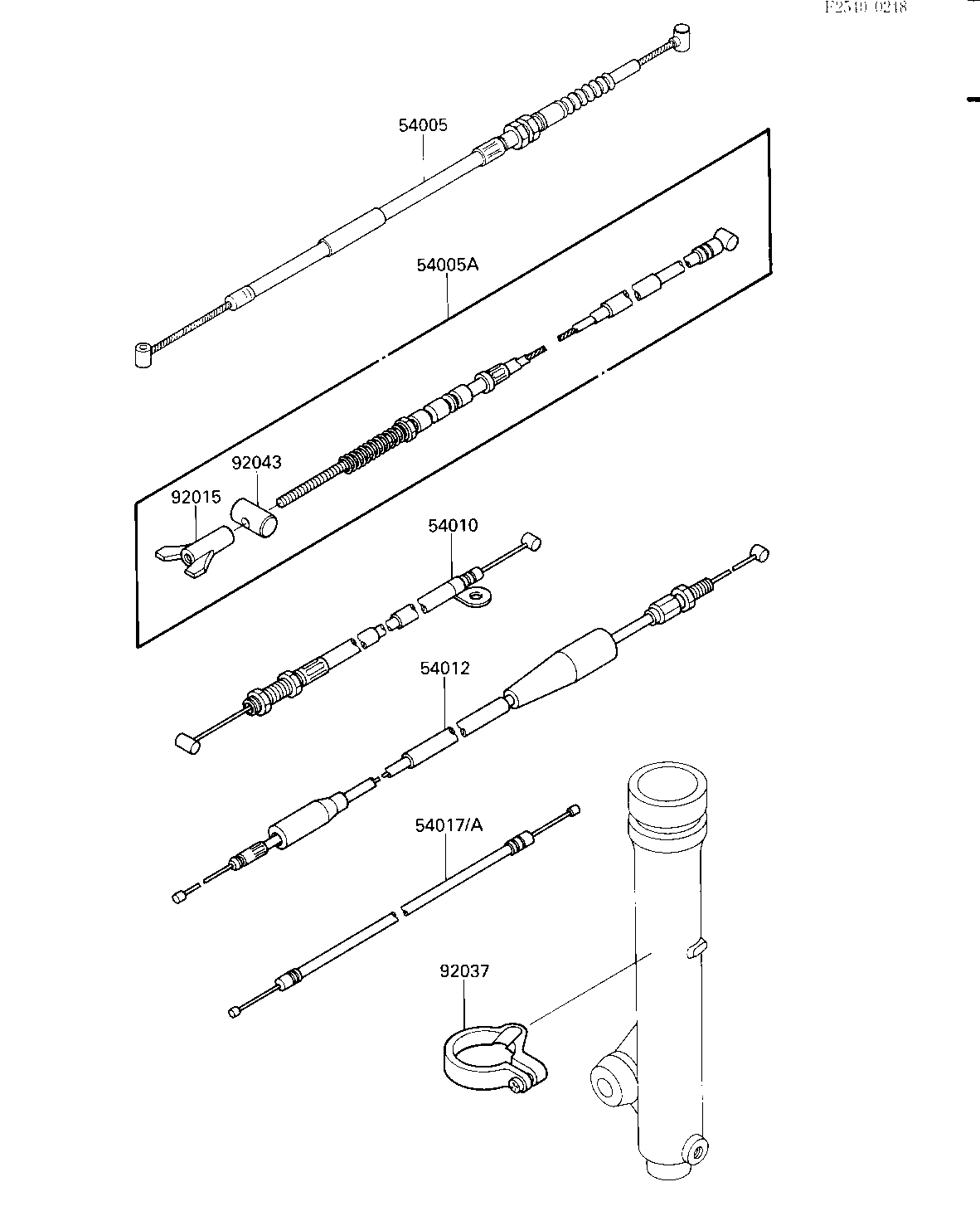

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CABLE BRAKE,FR 54005 54005-1107 1
CABLE-BRAKE 54005A 54005-1119 1
CABLE,REVERSE 54010 54010-1055 1
CABLE-THROTTLE 54012 54012-1266 1
CABLE-STARTER 54017A 54017-1083 1
NUT,WING,6MM 92015 92015-1497 1
CLAMP,CABLE 92037 92037-1548 1
PIN,12X20 92043 92043-1280 1
