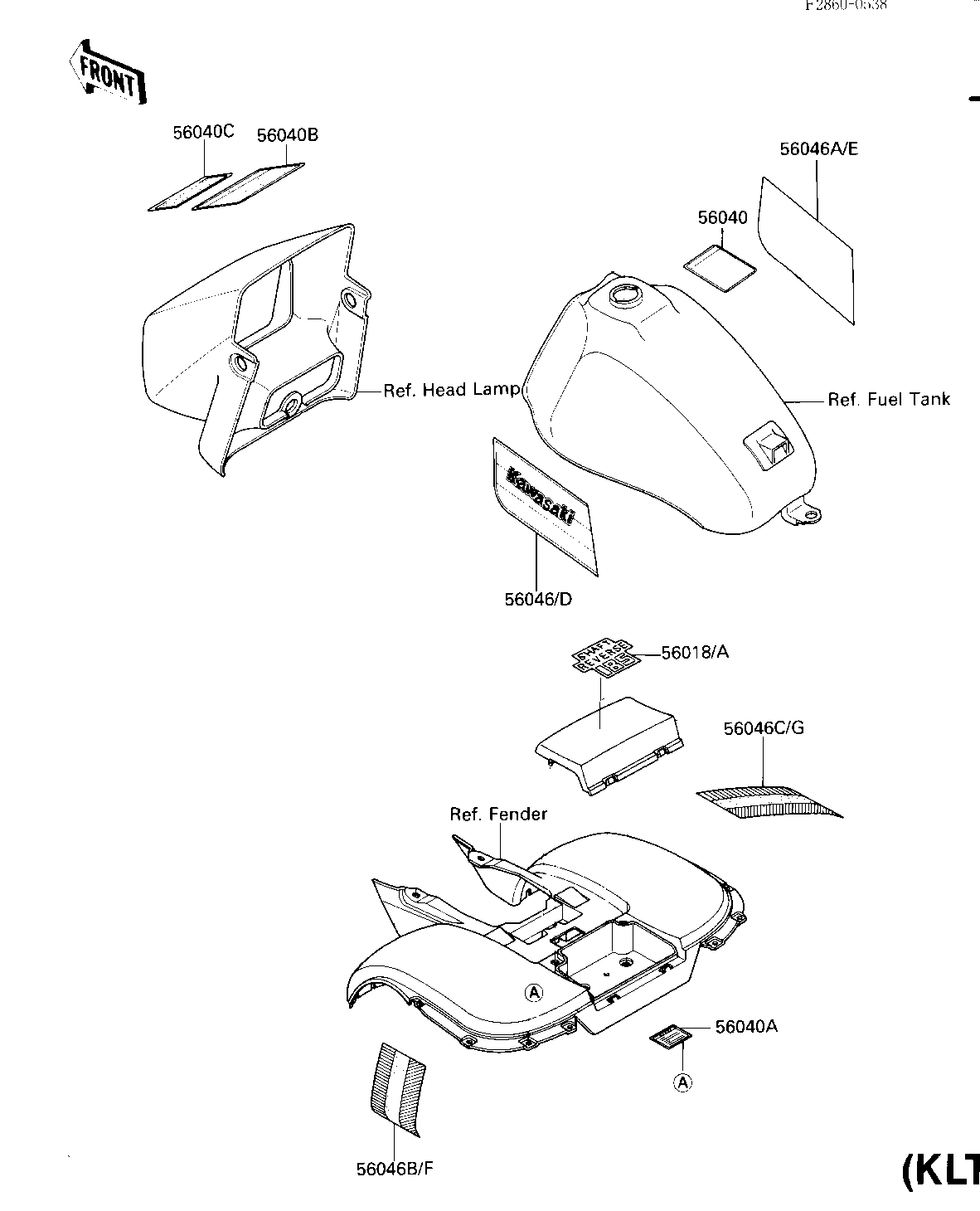

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,RR FENDER 56018 56018-1766 1
MARK,RR FENDER 56018A 56018-1767 1
LABEL-WARNING,IMPORTA 56040 56040-1151 1
LABEL-WARNING,TIRE&TR 56040A 56040-1152 1
LABEL-WARNING,CAUTION 56040B 56040-1154 1
LABEL-WARNING 56040C 56040-1158 1
PATTERN,FUEL,TANK LM 56046 56046-1896 1
PATTERN,FUEL TANK RM 56046A 56046-1897 1
PATTERN,RR FENDER 56046B 56046-1898 1
PATTERN,RR FENDER 56046C 56046-1899 1
PATTERN,FUEL TANK 56046D 56046-1900 1
PATTERN,FUEL TANK 56046E 56046-1901 1
PATTERN-R.FENDER-LH 56046F 56046-1902 1
PATTERN,RR FENDER RM 56046G 56046-1903 1
