Parts Diagrams |

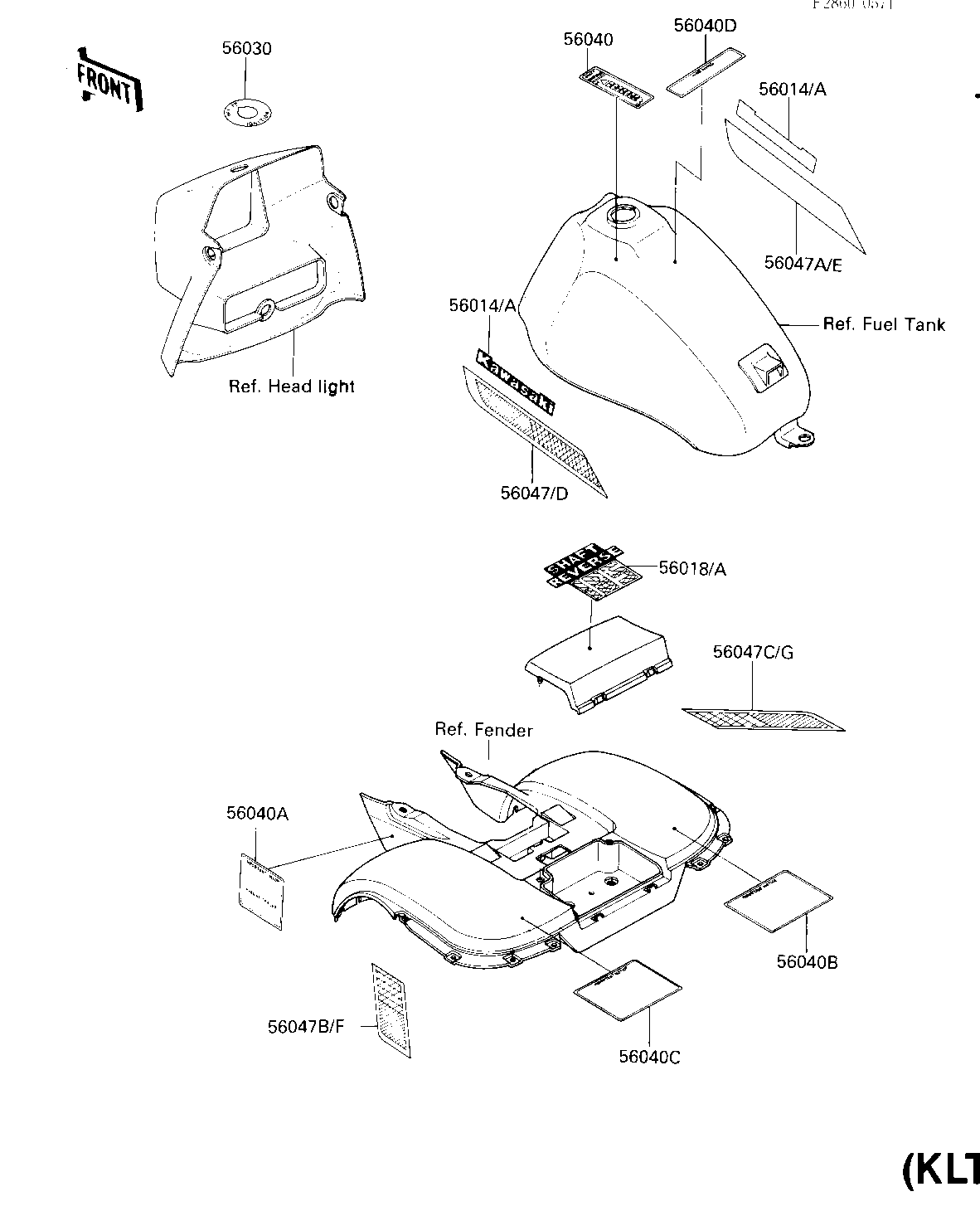

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
EMBLEM,FUEL TANK RED | 56014 | 56014-1158 | 2 | ||
EMBLEM FUEL TANK EBNY | 56014A | 56014-1159 | 2 | ||
MRK RR FNDR COVER RED | 56018 | 56018-1917 | 1 | ||
MRK RR FNDR COVER EBY | 56018A | 56018-1918 | 1 | ||
LABEL,IGNITION SWITCH | 56030 | 56030-1086 | 1 | ||
LABEL-WARNG,SHIFT PAT | 56040 | 56040-1262 | 1 | ||
LABEL-WARNING,IMPORTA | 56040A | 56040-1188 | 1 | ||
LABEL-WARNING | 56040B | 56040-1196 | 1 | ||
LABEL-WARNING,IMPORTA | 56040C | 56040-1197 | 1 | ||
LABEL-WARNING,REFUELI | 56040D | 56040-1200 | 1 | ||
PTTRN,FUEL TANK LH RD | 56047 | 56047-1222 | 1 | ||
PTTRN,FUEL TANK RH RD | 56047A | 56047-1223 | 1 | ||
PTTRN,RR FNDR LH RED | 56047B | 56047-1224 | 1 | ||
PTTRN RR FNDR RH RED | 56047C | 56047-1225 | 1 | ||
PTTRN FUEL TANK LH EB | 56047D | 56047-1226 | 1 | ||
PATT FUEL TANK RH EBY | 56047E | 56047-1227 | 1 | ||
PATTRN RR FNDR LH EBY | 56047F | 56047-1228 | 1 | ||
PATTRN RR FNDR RH EBY | 56047G | 56047-1229 | 1 |
EMBLEM,FUEL TANK RED | |
REF # | 56014 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
EMBLEM FUEL TANK EBNY | |
REF # | 56014A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
MRK RR FNDR COVER RED | |
REF # | 56018 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
MRK RR FNDR COVER EBY | |
REF # | 56018A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LABEL,IGNITION SWITCH | |
REF # | 56030 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LABEL-WARNG,SHIFT PAT | |
REF # | 56040 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LABEL-WARNING,IMPORTA | |
REF # | 56040A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LABEL-WARNING | |
REF # | 56040B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LABEL-WARNING,IMPORTA | |
REF # | 56040C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LABEL-WARNING,REFUELI | |
REF # | 56040D |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PTTRN,FUEL TANK LH RD | |
REF # | 56047 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PTTRN,FUEL TANK RH RD | |
REF # | 56047A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PTTRN,RR FNDR LH RED | |
REF # | 56047B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PTTRN RR FNDR RH RED | |
REF # | 56047C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PTTRN FUEL TANK LH EB | |
REF # | 56047D |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PATT FUEL TANK RH EBY | |
REF # | 56047E |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PATTRN RR FNDR LH EBY | |
REF # | 56047F |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PATTRN RR FNDR RH EBY | |
REF # | 56047G |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
