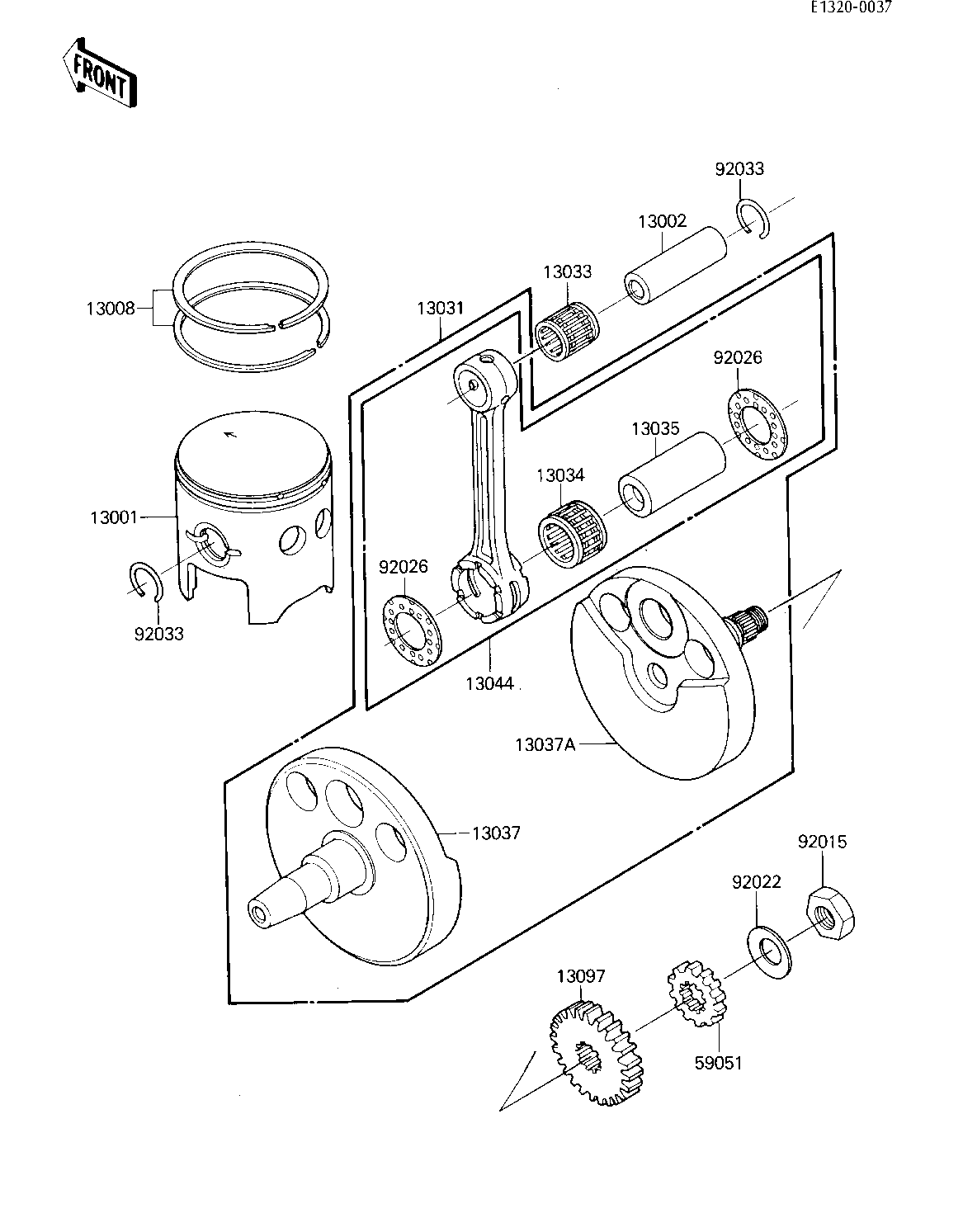

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PISTON,STD 13001 13001-1039 1
PIN-PISTON 13002 13002-017 1
RING-SET-PISTON 13008 13008-5068 1
CRANKSHAFT-COMP 13031 13031-1213 1
BEARING-SMALL END 13033 13033-1010 1
BEARING-BIG END,H24X3 13034 13034-1060 1
PIN,CRANK 13035 13035-034 1
CRANKSHAFT 13037 13037-1097 1
CRANKSHAFT,RH 13037A 13037-1275 1
SET-CONNECTING ROD 13044 13044-5042 1
GEAR-PRIMARY SPUR,18T 13097 13097-1084 1
GEAR-SPUR,WATER PUMP, 59051 59051-1049 1
NUT,16MM 92015 92015-1176 1
WASHER,16.3X29X1.75 92022 92022-1356 1
SPACER 92026 92026-1241 2
CIRCLIP-PISTON PIN 92033 92036-015 2
