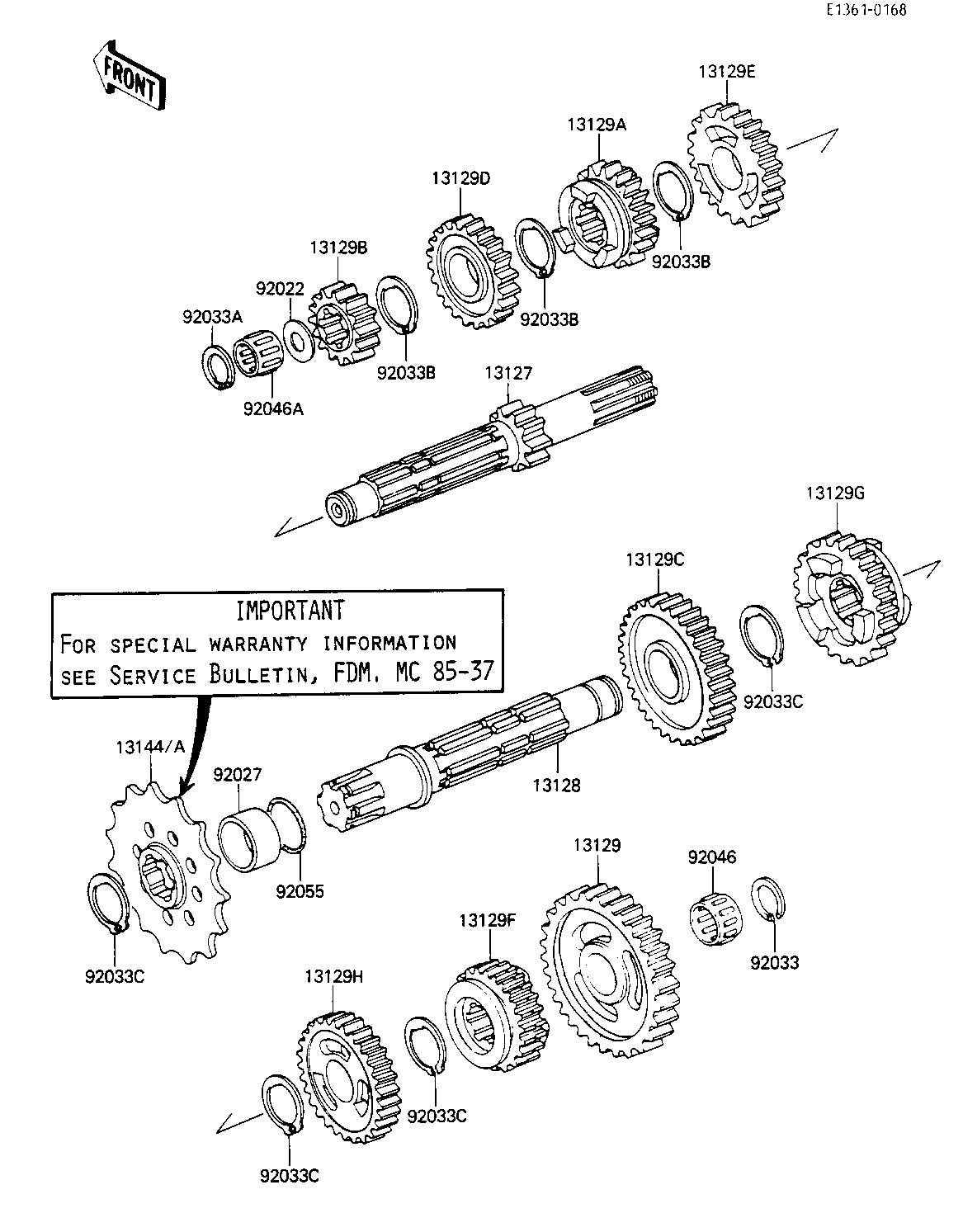

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SHAFT-TRANSMISSION IN | 13127 | 13127-1120 | 1 | ||
| SHAFT-TRANSMISSION OU | 13128 | 13128-1047 | 1 | ||
| LOW GEAR,OUTPUT,32T | 13129 | 13129-1160 | 1 | ||
| GEAR,INPUT 3RD,18T | 13129A | 13129-1956 | 1 | ||
| GEAR,INPUT 2ND,17T | 13129B | 13129-1392 | 1 | ||
| GEAR,OUTPUT 2ND,30T | 13129C | 13129-1394 | 1 | ||
| GEAR,INPUT 4TH,20T | 13129D | 13129-1526 | 1 | ||
| GEAR,INPUT TOP,28T | 13129E | 13129-1527 | 1 | ||
| GEAR,OUTPUT TOP,26T | 13129F | 13129-1529 | 1 | ||
| GEAR,OUTPUT 4TH,22T | 13129G | 13129-1762 | 1 | ||
| GEAR,OUTPUT,3RD 25T | 13129H | 13129-1763 | 1 | ||
| SPROCKET-OUTPUT | 13144 | 13144-1133 | 1 | ||
| ENGINE SPROCKET,14T | 13144A | 13144-1006 | 1 | (OPTION) | |
| WASHER,PLAIN | 92022 | 92022-271 | 1 | ||
| COLLAR,SPROCKET | 92027 | 92027-1963 | 1 | ||
| CIRCLIP,18MM | 92033 | 92033-029 | 1 | ||
| CIRCLIP,16MM | 92033A | 92033-032 | 1 | ||
| RING-SNAP | 92033B | 92033-1231 | 3 | ||
| RING-SNAP,25MM | 92033C | 92033-1089 | 4 | ||
| BEARING-NEEDLE,KT2026 | 92046 | 92046-1170 | 1 | ||
| BEARING-NEEDLE | 92046A | 92046-1184 | 1 | ||
| "O" RING | 92055 | 92055-035 | 1 |
| SHAFT-TRANSMISSION IN | |
| REF # | 13127 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHAFT-TRANSMISSION OU | |
| REF # | 13128 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LOW GEAR,OUTPUT,32T | |
| REF # | 13129 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,INPUT 3RD,18T | |
| REF # | 13129A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,INPUT 2ND,17T | |
| REF # | 13129B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,OUTPUT 2ND,30T | |
| REF # | 13129C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,INPUT 4TH,20T | |
| REF # | 13129D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,INPUT TOP,28T | |
| REF # | 13129E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,OUTPUT TOP,26T | |
| REF # | 13129F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,OUTPUT 4TH,22T | |
| REF # | 13129G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,OUTPUT,3RD 25T | |
| REF # | 13129H |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPROCKET-OUTPUT | |
| REF # | 13144 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ENGINE SPROCKET,14T | |
| REF # | 13144A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
| WASHER,PLAIN | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,SPROCKET | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP,18MM | |
| REF # | 92033 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP,16MM | |
| REF # | 92033A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-SNAP | |
| REF # | 92033B |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| RING-SNAP,25MM | |
| REF # | 92033C |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BEARING-NEEDLE,KT2026 | |
| REF # | 92046 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-NEEDLE | |
| REF # | 92046A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| "O" RING | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
