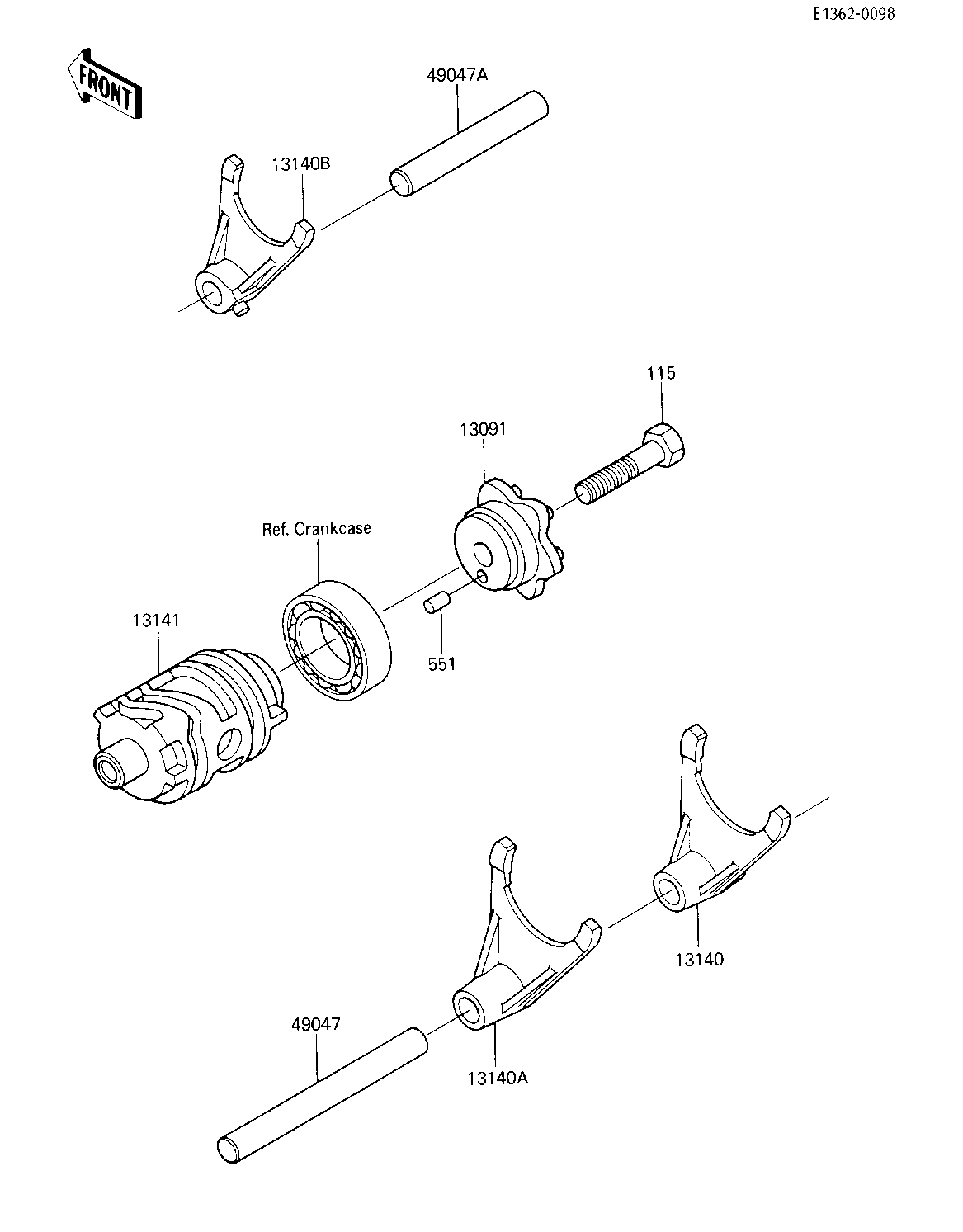

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER 13091 13091-1427 1
FORK-SHIFT,LOW 13140 13140-1071 1
FORK-SHIFT,2ND&3RD 13140A 13140-1072 1
FORK-SHIFT,4TH&TOP 13140B 13140-1073 1
DRUM-CHANGE 13141 13141-1069 1
ROD,SHIFT,10X90 49047 49047-1009 1
ROD,SHIFT,L=65M/M 49047A 49047-1011 1
BOLT-SMALL-UPSET 8X25 115 115G0825 1
PIN,DOWEL,4X8 551 551A0408 1
