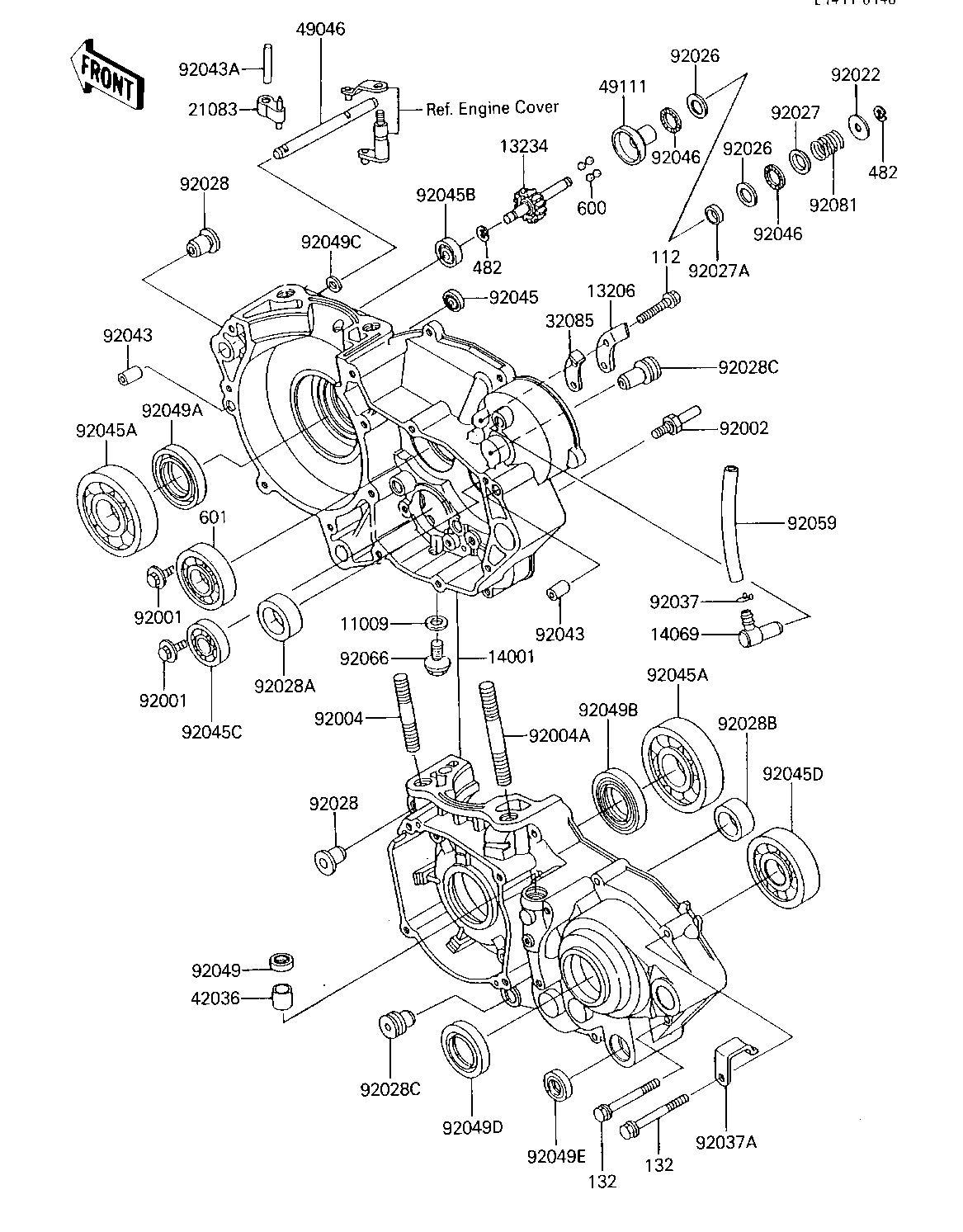

1986 Tecate - CRANKCASE

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET CHECK VALVE 11009 92065-058 1
GUIDE-KICK 13206 13206-1052 1
SHAFT-COMP,GOVERNOR 13234 13234-1061 1
SET-CRANKCASE 14001 14001-5206 1
BREATHER 14069 14069-003 1
ARM 21083 21083-1058 1
STOPPER,KICKSTARTER 32085 32085-1016 1
SLEEVE 42036 42036-1177 1
ROD-GOVERNOR 49046 49046-1055 1
HOLDER-GOVERNOR WEIGH 49111 49111-1051 1
BOLT,W/WASHER,6X14 92001 92001-1829 4
BOLT,8X15 92002 92002-1601 1
STUD,10X35 92004 92004-1063 2
STUD,10X45 92004A 92004-1065 2
WASHER,8.3X28X1.6 92022 92022-1634 1
SPACER,15X28X1 92026 92026-1238 2
COLLAR 92027 92027-1838 1
COLLAR,15.2X17X4 92027A 92027-1839 1
BUSHING,CRANKCASE 92028 92028-1133 2
BUSHING 92028A 92028-131 1
BUSHING 92028B 92028-132 1
BUSHING 92028C 92028-1366 2
CLAMP FUEL PIPE 92037 92037-010 1
CLAMP,HARNESS 92037A 92037-1318 1
PIN-DOWEL 92043 92042-007 2
PIN,4X32 92043A 92043-1258 1
BEARING-BALL 92045 92045-1211 1
BEARING,BALL,#6305SH2 92045A 92045-1024 2
BEARING-BALL 92045B 92045-1212 1
BEARING-BALL,6905Z 92045C 92045-1058 1
BEARING-BALL,6205 92045D 92045-1115 1
BEARING-NEEDLE,AXK110 92046 92046-1052 2
OIL SEAL SB12205 92049 92049-004 1
OIL SEAL,TCJ25457 92049A 92049-1051 1
OIL SEAL,TCJ20407 92049B 92049-1052 1
SEAL-OIL,SDO8144 92049C 92049-1207 1
OIL SEAL TB3040 92049D 92050-033 1
OIL SEAL TB16267 92049E 92051-003 1
TUBE,6X9X500 92059 92059-1125 1
PLUG 92066 92066-1241 1
SPRING,GOVERNOR 92081 92081-1934 1
BOLT-UPSET 112 112G0618 2
BOLT-FLANGED-SMALL 132 132G0640 12
CIRCLIP 6MM 482 482J6000 2
BALL STEEL 5/16' 600 600A1000 4
BEARING BALL #6204 601 601B6204 1
