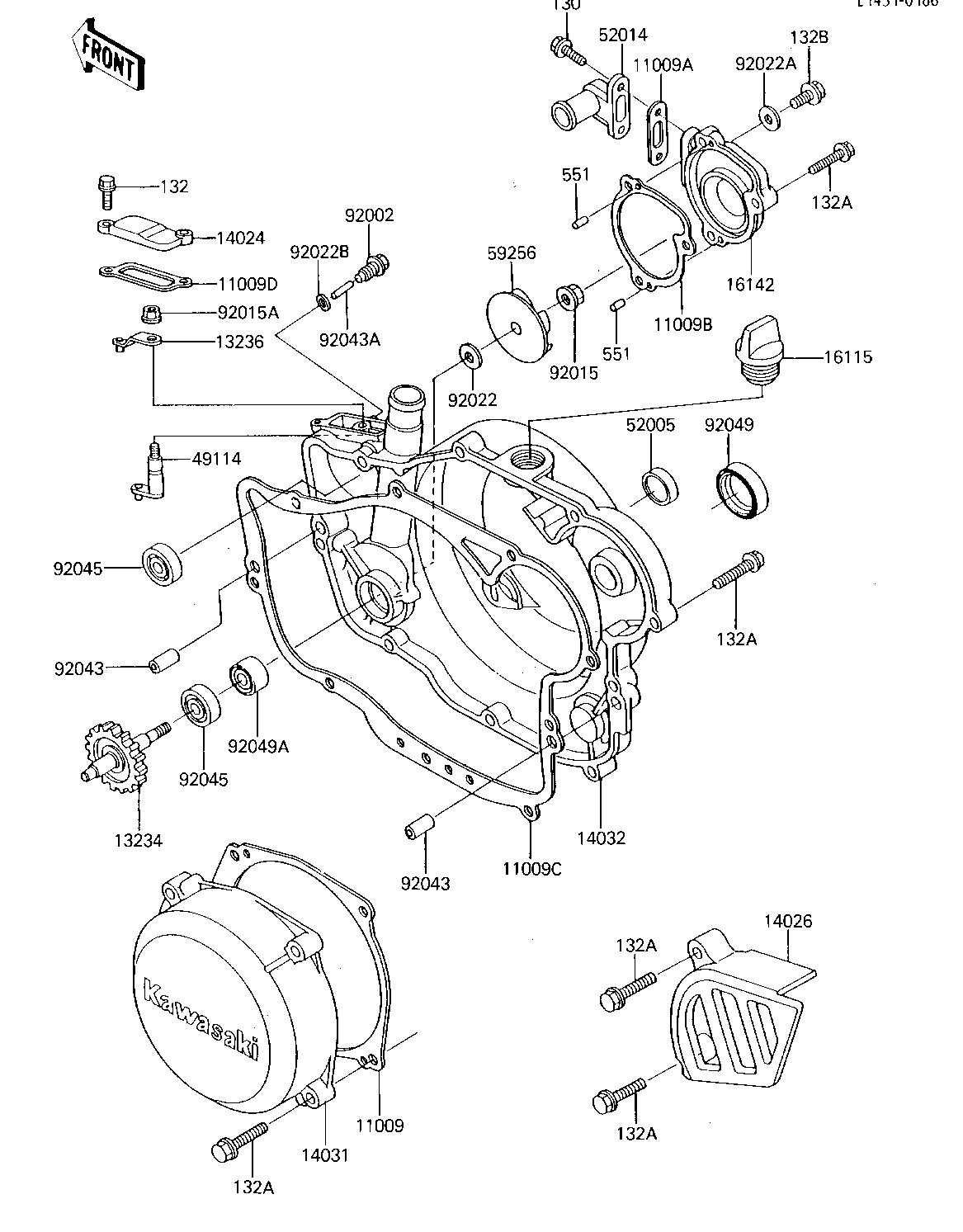

1986 Tecate - ENGINE COVERS/WATER PUMP

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,GENERATOR COVE 11009 11009-1319 1
GASKET,ELBOW 11009A 11009-1952 1
GASKET,WATER PUMP COV 11009B 11009-1953 1
GASKET,CLUTCH COVER 11009C 11009-1548 1
GASKET,GOVERNOR 11009D 11009-1549 1
SHAFT-COMP,WATER PUMP 13234 13234-1062 1
LEVER-COMP,GOVERNOR 13236 13236-1141 1
COVER,GOVERNOR 14024 14024-1139 1
COVER-CHAIN 14026 14026-1119 1
COVER-GENERATOR 14031 14031-1104 1
COVER-CLUTCH 14032 14032-1208 1
FILLER,OIL 16115 16115-018 1
COVER-PUMP 16142 16142-1067 1
SHAFT-GOVERNOR 49114 49114-1057 1
GAUGE,OIL LEVEL 52005 52005-1055 1
ELBOW 52014 52014-5001 1
IMPELLER,WATER PUMP 59256 59256-1002 1
BOLT 92002 92002-1357 1
NUT-6MM 92015 92015-1078 1
NUT,6MM 92015A 92015-1572 1
WASHER,6X14X2 92022 92022-1393 1
WASHER,8.2X14X1 92022A 92022-1488 1
WASHER,PLAIN 92022B 92022-304 1
PIN-DOWEL 92043 92042-007 2
PIN 92043A 92043-109 1
BEARING-BALL 92045 92045-1212 2
OIL SEAL,SB18307 92049 92049-013 1
SEAL-OIL,MHSD8X18X10J 92049A 92049-1366 1
BOLT-FLANGED 130 130G0516 2
BOLT-FLANGED-SMALL 132 132G0620 2
BOLT-FLANGED-SMALL 132A 132G0625 18
BOLT-FLANGED-SMALL 132B 132G0810 1
PIN,DOWEL,4X8 551 551A0408 2
