Part Item Information

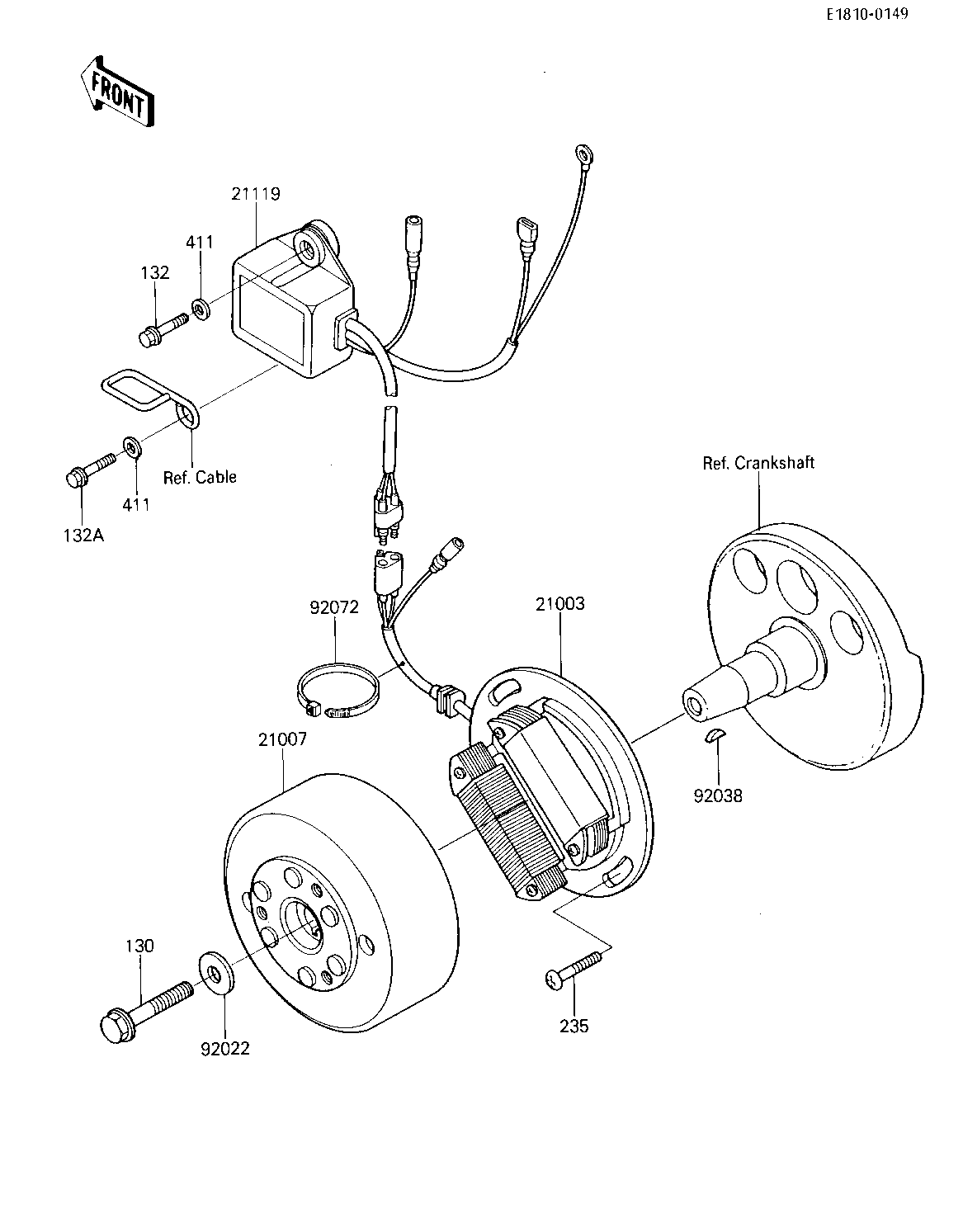

ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
STATOR 21003 21003-1177 1
ROTOR 21007 21007-1143 1
IGNITER 21119 21119-1074 1
WASHER,PLAIN,8MM 92022 92022-276 1
WOODRUFF KEY 92038 92038-001 1
BAND 92072 92072-3505 1
BOLT-FLANGED,8X40 130 130P0840 1
BOLT-FLANGED-SMALL 132 132G0616 1
BOLT-FLANGED-SMALL 132A 132G0620 1
SCREW-PAN-WP-CROS 235 235B0616 2
WASHER PLAIN 6MM 411 411B0600 2
