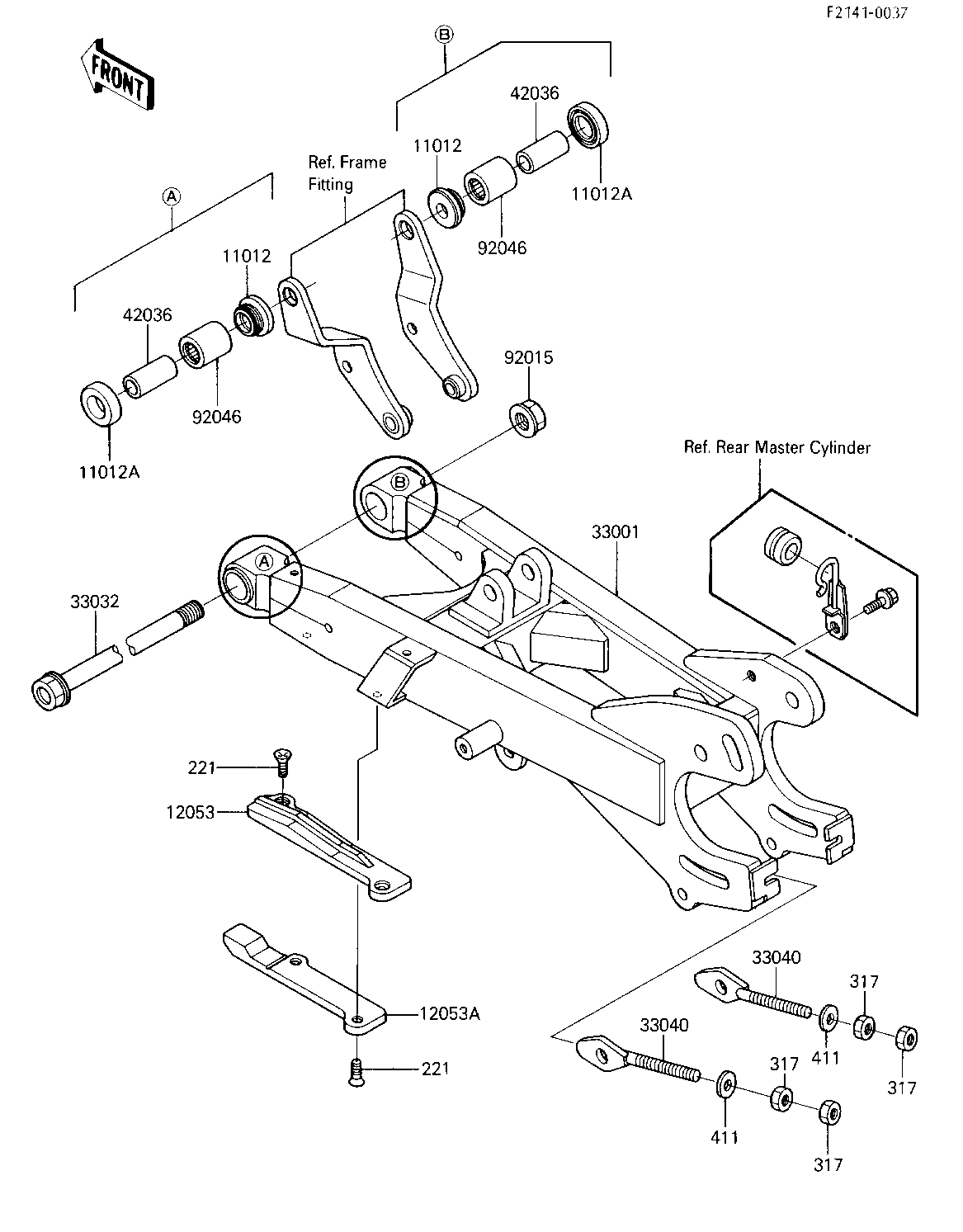

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,SWING ARM 11012 11012-1355 2
CAP,SWING ARM 11012A 11012-1417 2
GUIDE-CHAIN,FR,UPP 12053 12053-1101 1
GUIDE-CHAIN 12053A 12053-1144 1
ARM-COMP-SWING 33001 33001-1265 1
SHAFT-SWING ARM 33032 33032-1112 1
ADJUSTER-CHAIN 33040 33040-4006 2
SLEEVE,SWING ARM,L=40 42036 42036-1145 1
NUT,14MM 92015 92015-1407 1
BEARING-NEEDLE,TA2030 92046 92046-1128 2
SCREW CNTSNK HD 6X10 221 221B0610 4
NUT,8MM 317 317G0800 4
WASHER PLAIN 8MM 411 411B0800 2
