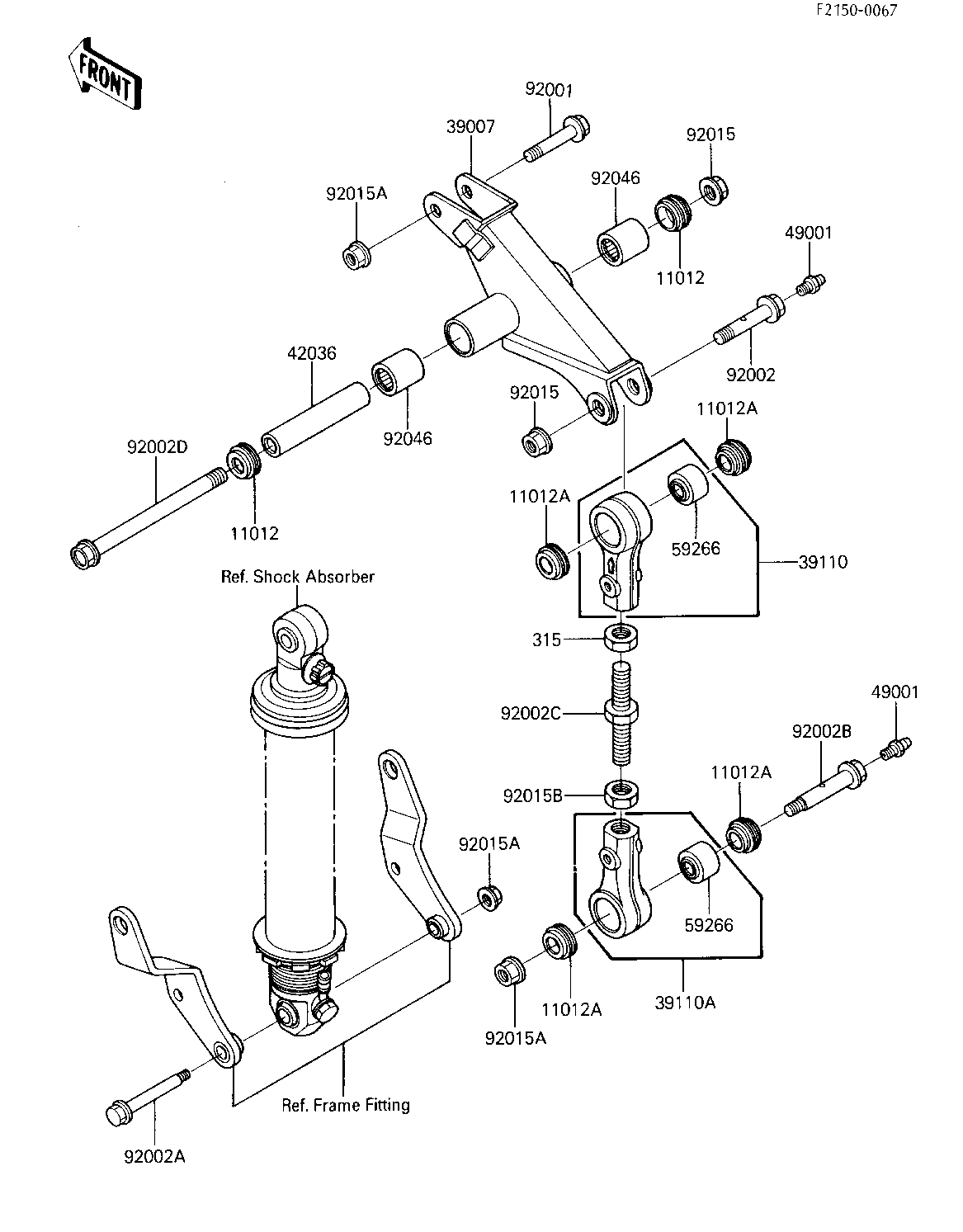

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,SWING ARM 11012 11012-1207 2
CAP,ROD 11012A 11012-1418 4
ARM-SUSP,UNI TRAK 39007 39007-1097 1
ROD-ASSY-TIE 39110 39110-1067 1
ROD-ASSY-TIE 39110A 39110-1068 1
SLEEVE,14X20X106 42036 42036-1172 1
NIPPLE-GREASE,ROD BOL 49001 49001-1051 2
JOINT-BALL,ROD 59266 59266-1056 2
BOLT,FLANGED,10X48 92001 92001-1962 1
BOLT,FLANGED,14X57 92002 92002-1390 1
BOLT,10X68 92002A 92002-1395 1
BOLT,ROD,10X65 92002B 92002-1397 1
BOLT,ROD 92002C 92002-1632 1
BOLT,ARM,14X152 92002D 92002-1638 1
NUT,14MM 92015 92015-1407 2
NUT,10MM 92015A 92015-1415 3
NUT,16MM 92015B 92015-1548 1
BEARING-NEEDLE,TA2030 92046 92046-1128 2
NUT-HEX-FINE 315 315G1600 1
