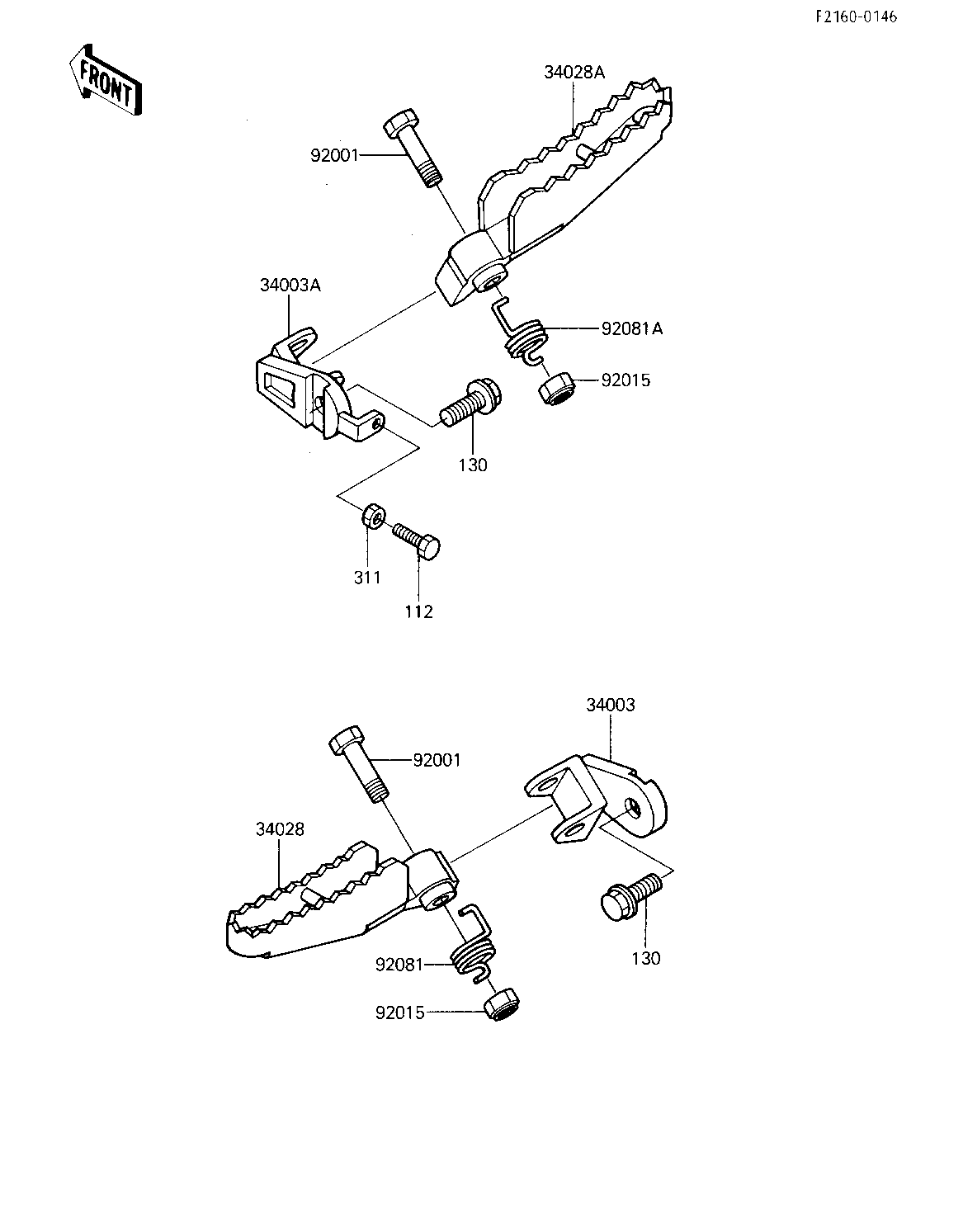

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER-STEP,LH 34003 34003-1248 1
HOLDER-STEP,RH 34003A 34003-1249 1
STEP,LH 34028 34028-1177 1
STEP,RH 34028A 34028-1178 1
BOLT,10X44 92001 92001-4038 2
NUT,LOCK,10MM 92015 92019-021 2
SPRING,STEP,LH 92081 92081-4027 1
SPRING,STEP,RH 92081A 92081-4028 1
BOLT-UPSET 112 112G0622 1
BOLT-FLANGED 130 130P1225 2
NUT,6M/M 311 311G0600 1
