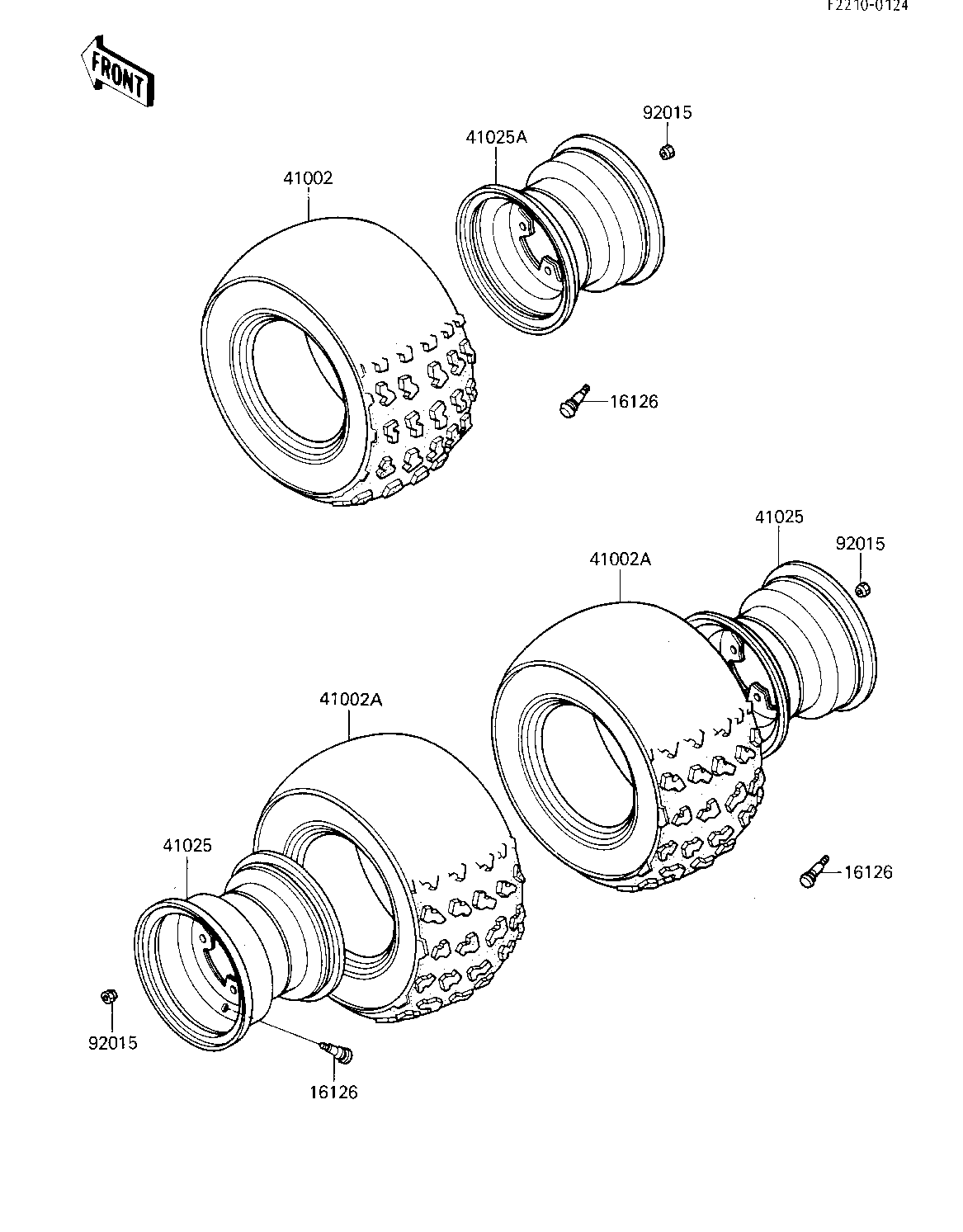

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
VALVE,TIRE 16126 16126-4001 3
TIRE,FR,23X9.00-11,KT 41002 41002-1549 1
TIRE,RR,20X11.00-10,K 41002A 41002-1550 2
RIM,10X8.5 41025 41025-1114 2
RIM,FR,7.00-11 41025A 41025-1140 1
NUT,10MM 92015 92015-1415 12
