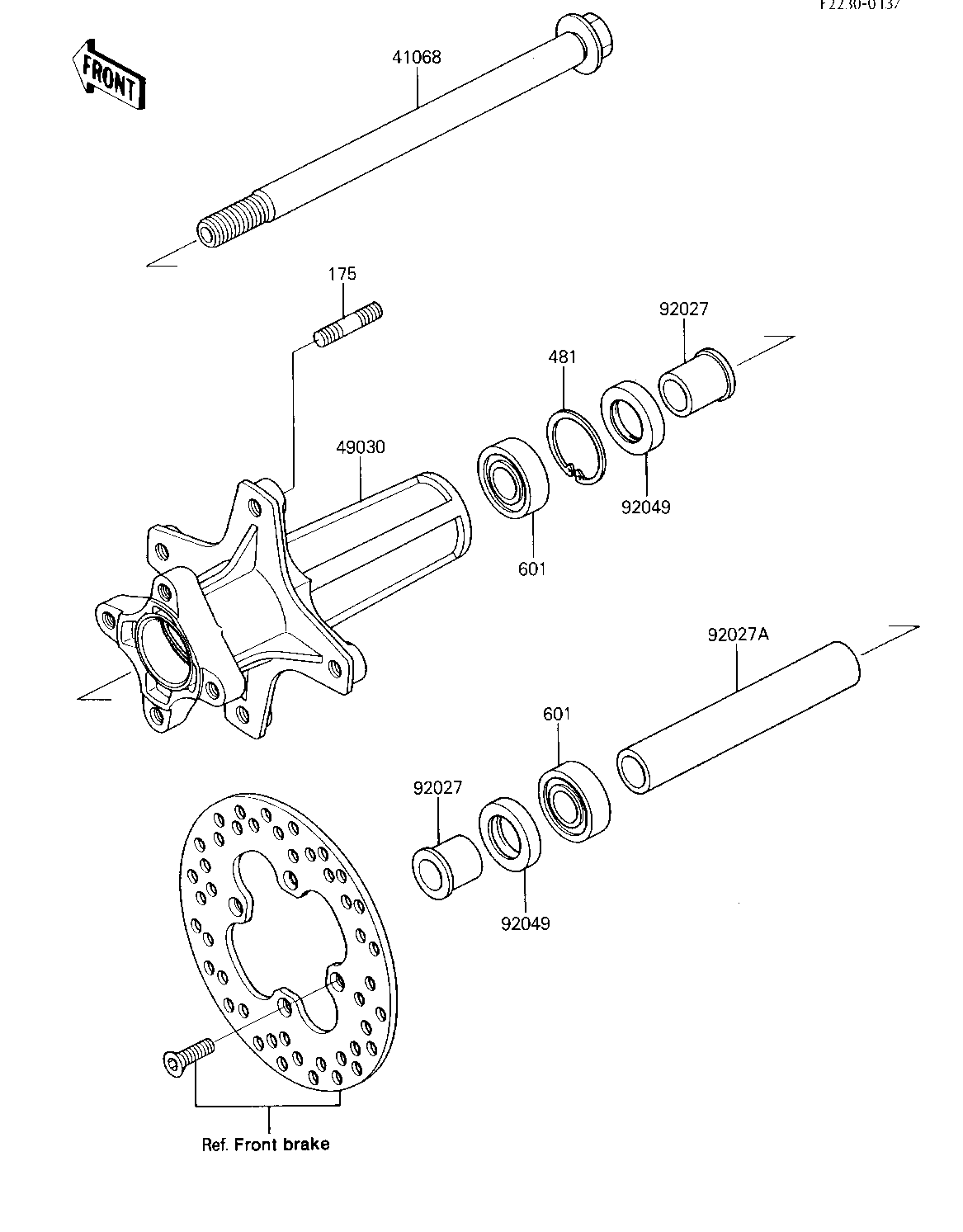

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
AXLE,FR 41068 41068-1206 1
HUB,FR 49030 49030-1071 1
COLLAR,L=20 92027 92027-1951 2
COLLAR,40.2X45.4X129 92027A 92027-1953 1
SEAL-OIL,AG1258A0 92049 92049-1110 2
BOLT-STUD-FINE,10X20 175 175G1020 4
RING, SNAP,43.5M/M 481 92033-1040 1
BEARING-BALL #6203 601 601B6203ZZ 2
