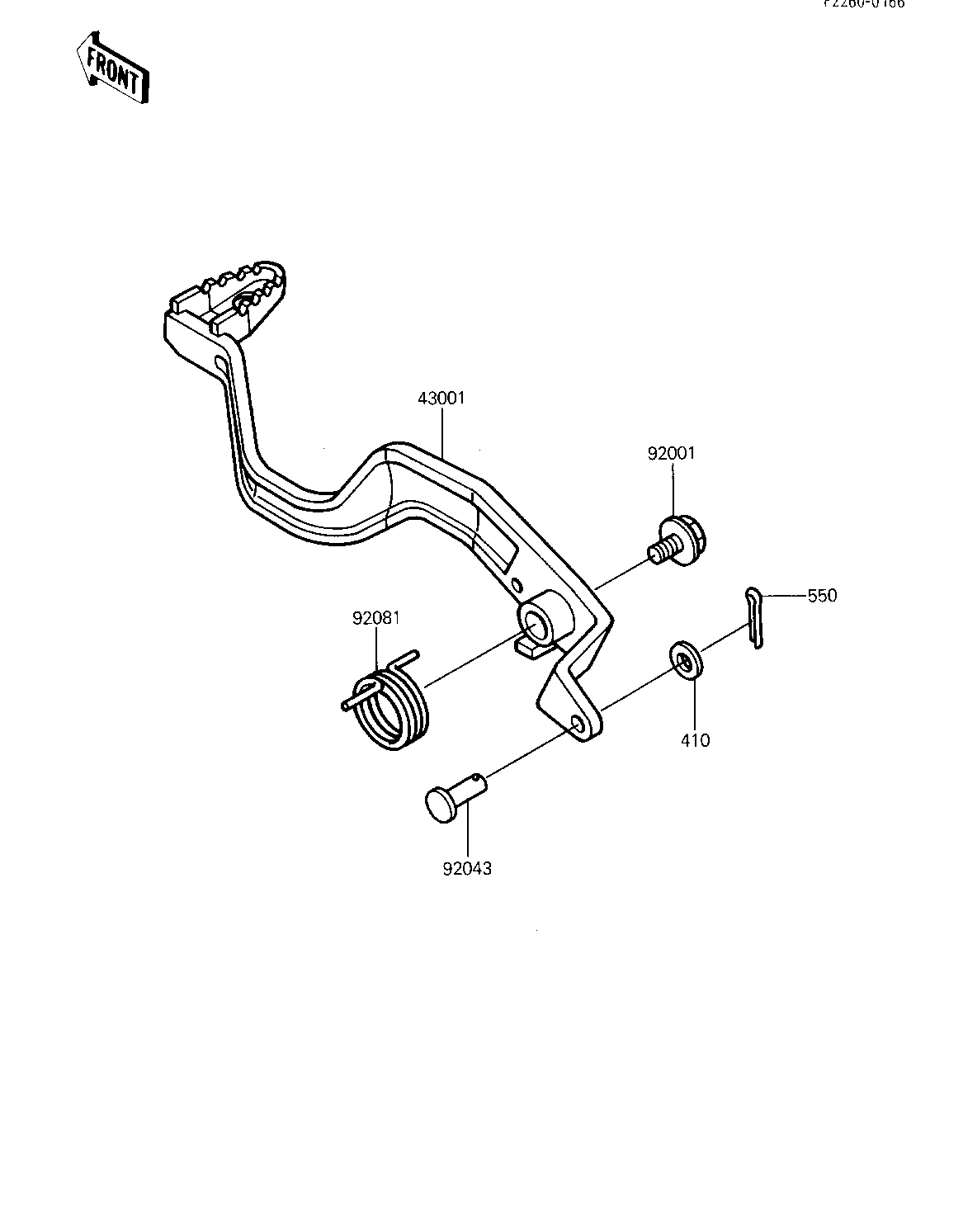

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LEVER-BRAKE,PEDAL 43001 43001-1203 1
BOLT,HEX HEAD,6X10 92001 92001-1034 1
PIN 92043 92043-1013 1
SPRING,BRAKE RETURN 92081 92081-1640 1
WASHER PLAIN 8MM 410 410B0800 1
PIN COTTER 2.0X15 550 550D2015 1
