Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |

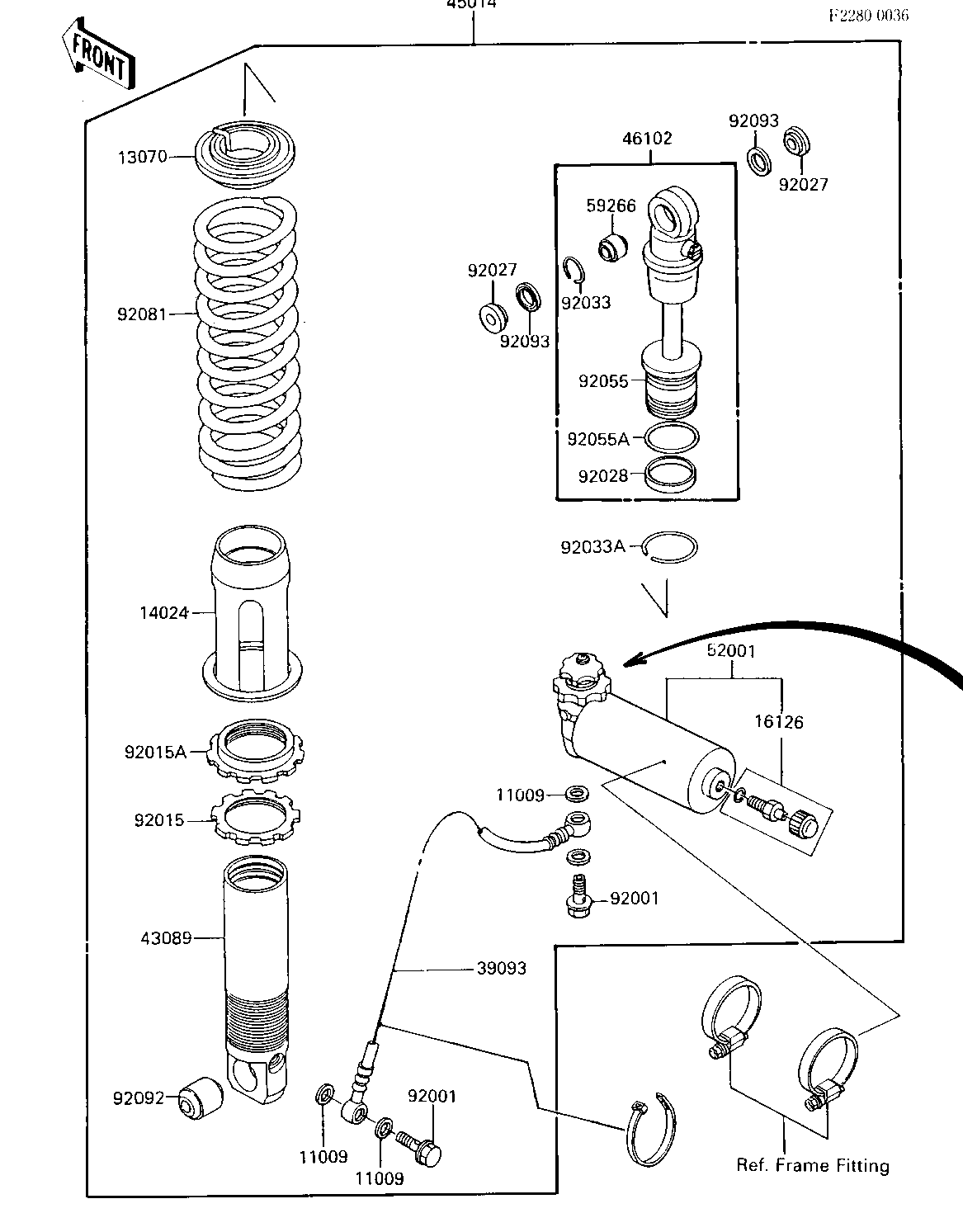

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,FORK CYLINDER | 11009 | 44045-057 | 4 | ||
GUIDE,SPRING | 13070 | 13070-1075 | 1 | ||
COVER | 14024 | 14024-1145 | 1 | ||
VALVE,AIR | 16126 | 16126-1118 | 1 | ||
PIPE-COMP-SUSP | 39093 | 39093-1106 | 1 | ||
CYLINDER-SHOCKABSORBE | 43089 | 43089-1109 | 1 | ||
SHOCKABSORBER | 45014 | 45014-1359 | 1 | ||
ROD,SHOCKABSORBER | 46102 | 46102-1160 | 1 | ||
TANK-OIL | 52001 | 52001-1068 | 1 | ||
JOINT-BALL,REAR SHOCK | 59266 | 59266-1053 | 1 | ||
BOLT,PIPE-COMP-SUSP | 92001 | 92001-1752 | 2 | ||
NUT,SPRING ADJUST LOC | 92015 | 92015-1551 | 1 | ||
NUT | 92015A | 92015-1552 | 1 | ||
COLLAR,SHOCKABSORBER | 92027 | 92027-1871 | 2 | ||
BUSHING,ROD | 92028 | 92028-1288 | 1 | ||
RING-SNAP,REARSHOCK | 92033 | 92033-1090 | 1 | ||
RING-SNAP | 92033A | 92033-1206 | 1 | ||
RING-O,ROD | 92055 | 92055-1181 | 1 | ||
RING-O,ROD | 92055A | 92055-1234 | 1 | ||
SPRING,SHOCKABSORBER | 92081 | 92081-1937 | 1 | ||
BUSHING-RUBBER,SHOCKA | 92092 | 92092-1054 | 1 | ||
SEAL,REAR SHOCK | 92093 | 92093-1183 | 2 |
GASKET,FORK CYLINDER | |
REF # | 11009 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
GUIDE,SPRING | |
REF # | 13070 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER | |
REF # | 14024 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
VALVE,AIR | |
REF # | 16126 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIPE-COMP-SUSP | |
REF # | 39093 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CYLINDER-SHOCKABSORBE | |
REF # | 43089 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SHOCKABSORBER | |
REF # | 45014 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ROD,SHOCKABSORBER | |
REF # | 46102 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TANK-OIL | |
REF # | 52001 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
JOINT-BALL,REAR SHOCK | |
REF # | 59266 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,PIPE-COMP-SUSP | |
REF # | 92001 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT,SPRING ADJUST LOC | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT | |
REF # | 92015A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COLLAR,SHOCKABSORBER | |
REF # | 92027 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BUSHING,ROD | |
REF # | 92028 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-SNAP,REARSHOCK | |
REF # | 92033 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-SNAP | |
REF # | 92033A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-O,ROD | |
REF # | 92055 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-O,ROD | |
REF # | 92055A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING,SHOCKABSORBER | |
REF # | 92081 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BUSHING-RUBBER,SHOCKA | |
REF # | 92092 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL,REAR SHOCK | |
REF # | 92093 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
