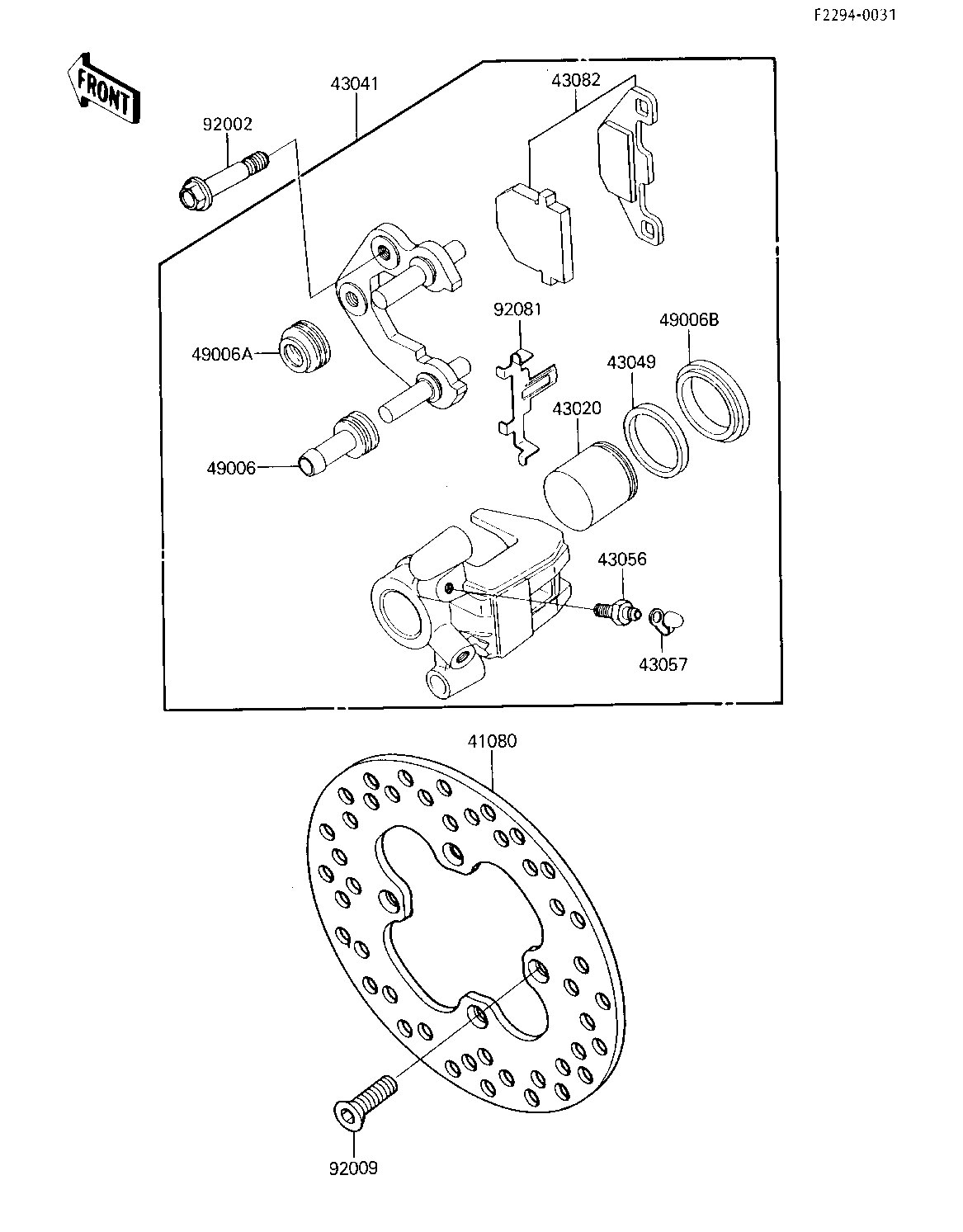

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
DISC 41080 41080-1162 1
PISTON-COMP-BRAKE 43020 43020-1082 1
CALIPER-ASSY,FR 43041 43041-1222 1
PACKING,PISTON SEAL 43049 43049-1026 1
BREEDER 43056 43056-003 1
CAP,BREEDER 43057 43057-003 1
PAD-ASSY-BRAKE,FR 43082 43082-1027 1
BOOT,CALIPER 49006 49006-1054 1
BOOT,CALIPER 49006A 49006-1055 1
BOOT,PISTON 49006B 49006-1091 1
BOLT,8X20 92002 92002-1250 2
SCREW,8X18 92009 92009-1408 4
SPRING 92081 92081-1341 1
