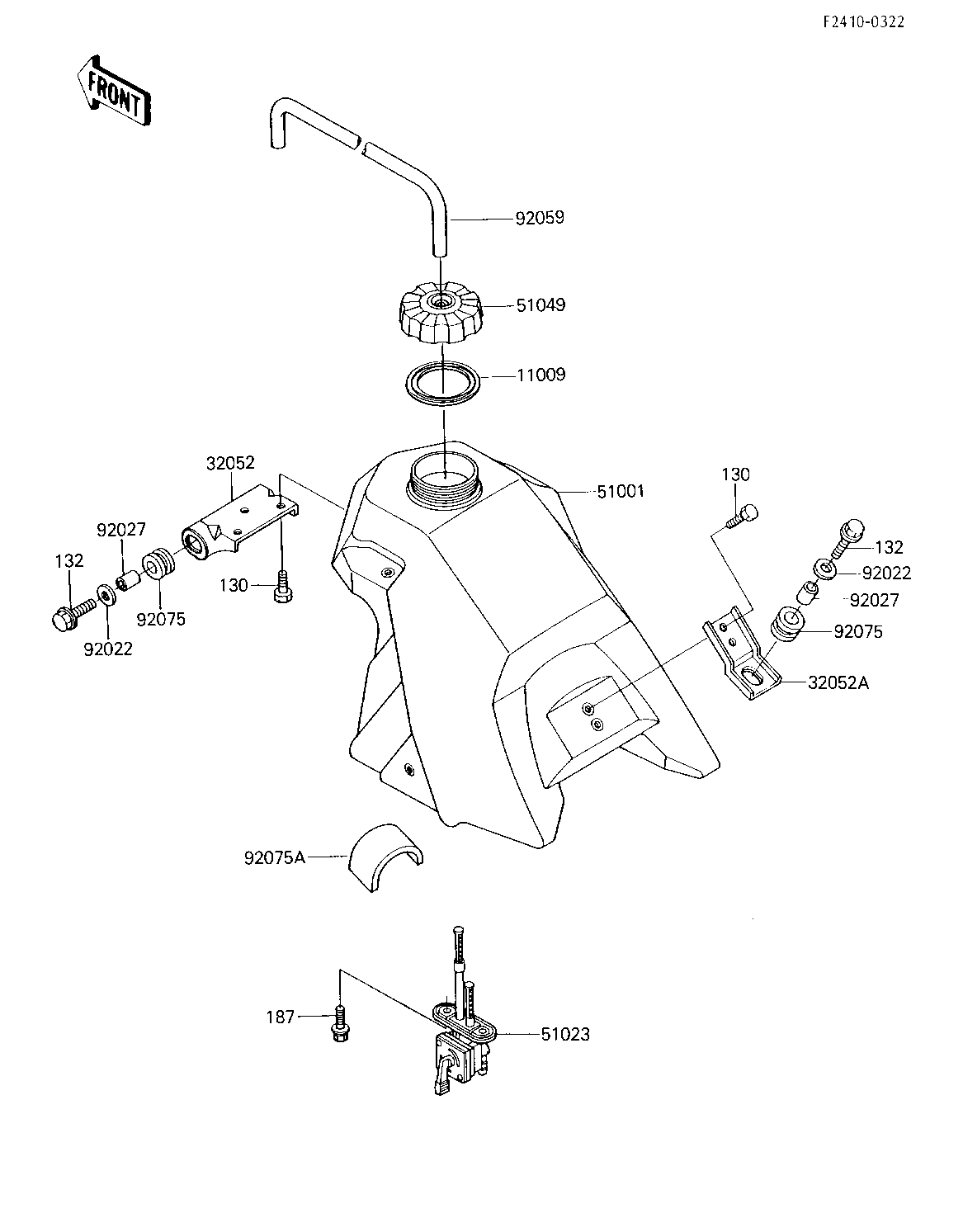

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FUEL TANK CAP 11009 11009-1623 1
BRACKET-TANK 32052 32052-1216 1
BRACKET-TANK 32052A 32052-1217 1
TANK-COMP 51001 51001-1232-6W 1
TAP-ASSY 51023 51023-1045 1
CAP-TANK,FUEL 51049 51049-1068 1
WASHER 92022 92022-1690 3
COLLAR 92027 92027-169 3
TUBE,5X9X350 92059 92059-1265 1
DAMPER RUBB TANK REAR 92075 92075-030 3
DAMPER 92075A 92075-1382 1
BOLT,FLANGED,6X10 130 130B0610 5
BOLT-FLANGED-SMALL 132 132G0625 3
BOLT-UPSET-WSP 187 187B0616 2
