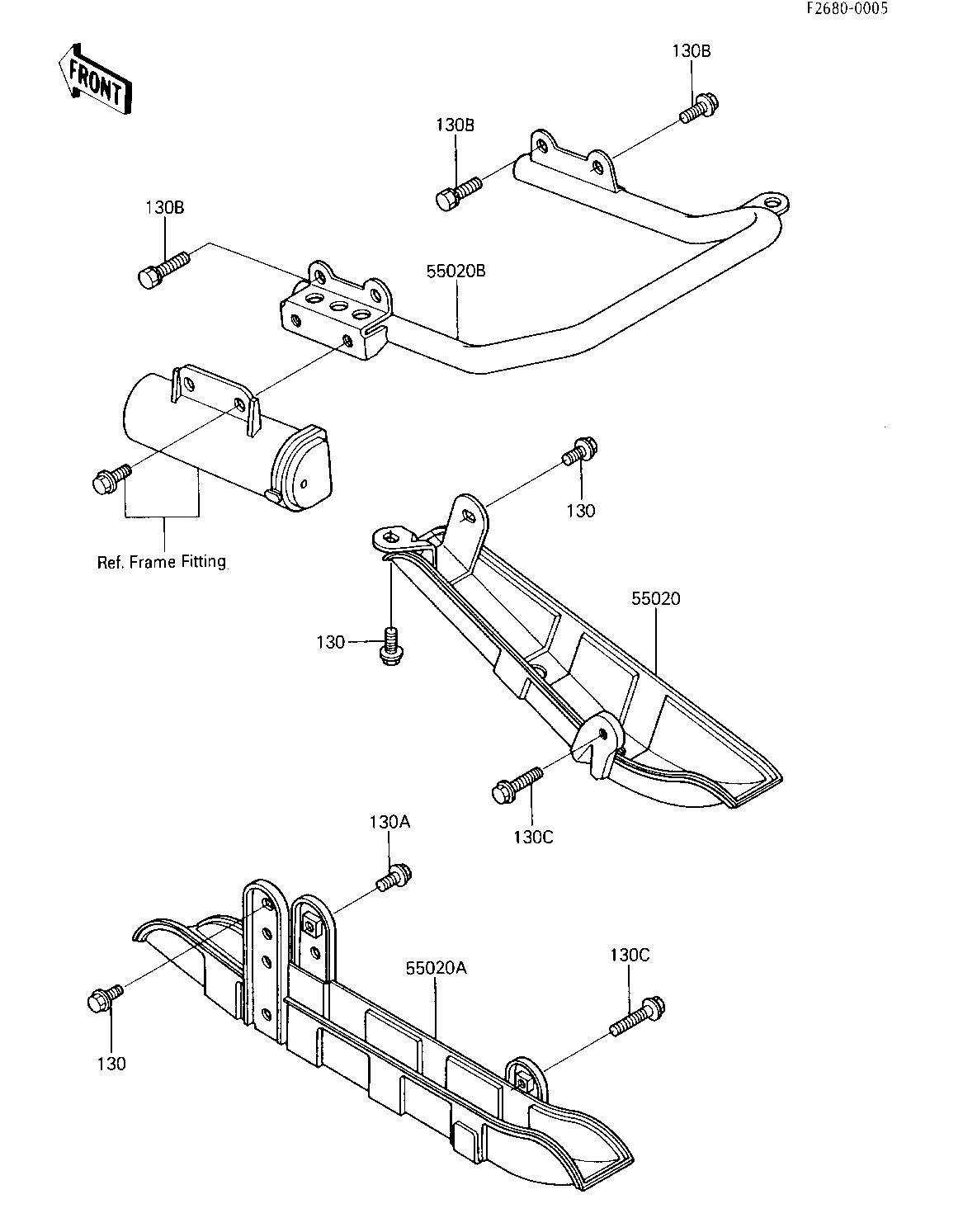

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GUARD,DISK 55020 55020-1205 1
GUARD,CHAIN 55020A 55020-1206 1
GUARD,REAR STAY 55020B 55020-1217 1
BOLT-FLANGED 130 130B0810 3
BOLT,FLANGED,8X14 130A 130G0814 1
BOLT-FLANGED,8X16 130B 130B0816 4
BOLT-FLANGED,8X20 130C 130B0820 2
