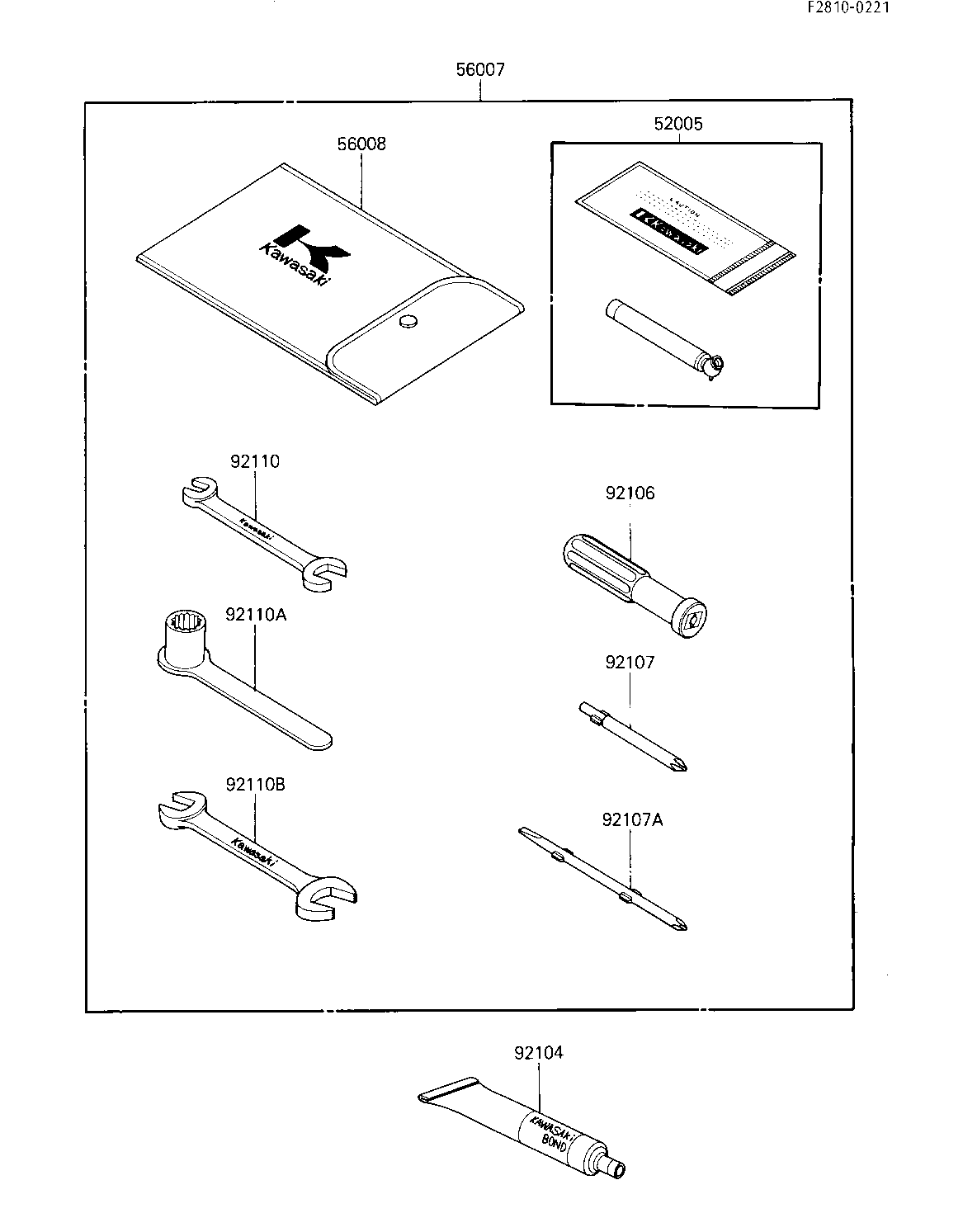

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GAUGE,AIR 52005 52005-1082 1
TOOLKIT 56007 56007-1309 1
BAG,TOOL 56008 56008-1007 1
LIQUID GASKET 92104 92104-002 1
GRIP,SCREW DRIVER 92106 92106-1001 1
SCREW DRIVER #3 PHLIP 92107 92107-005 1
92107-1052 (Canada) 92107A 92107-1051 1
TOOL-WRENCH,OPEN END, 92110 92110-1152 1
TOOL-WRENCH,SPARK PLU 92110A 92110-1126 1
TOOL-WRENCH,OPEN END, 92110B 92110-1153 1
