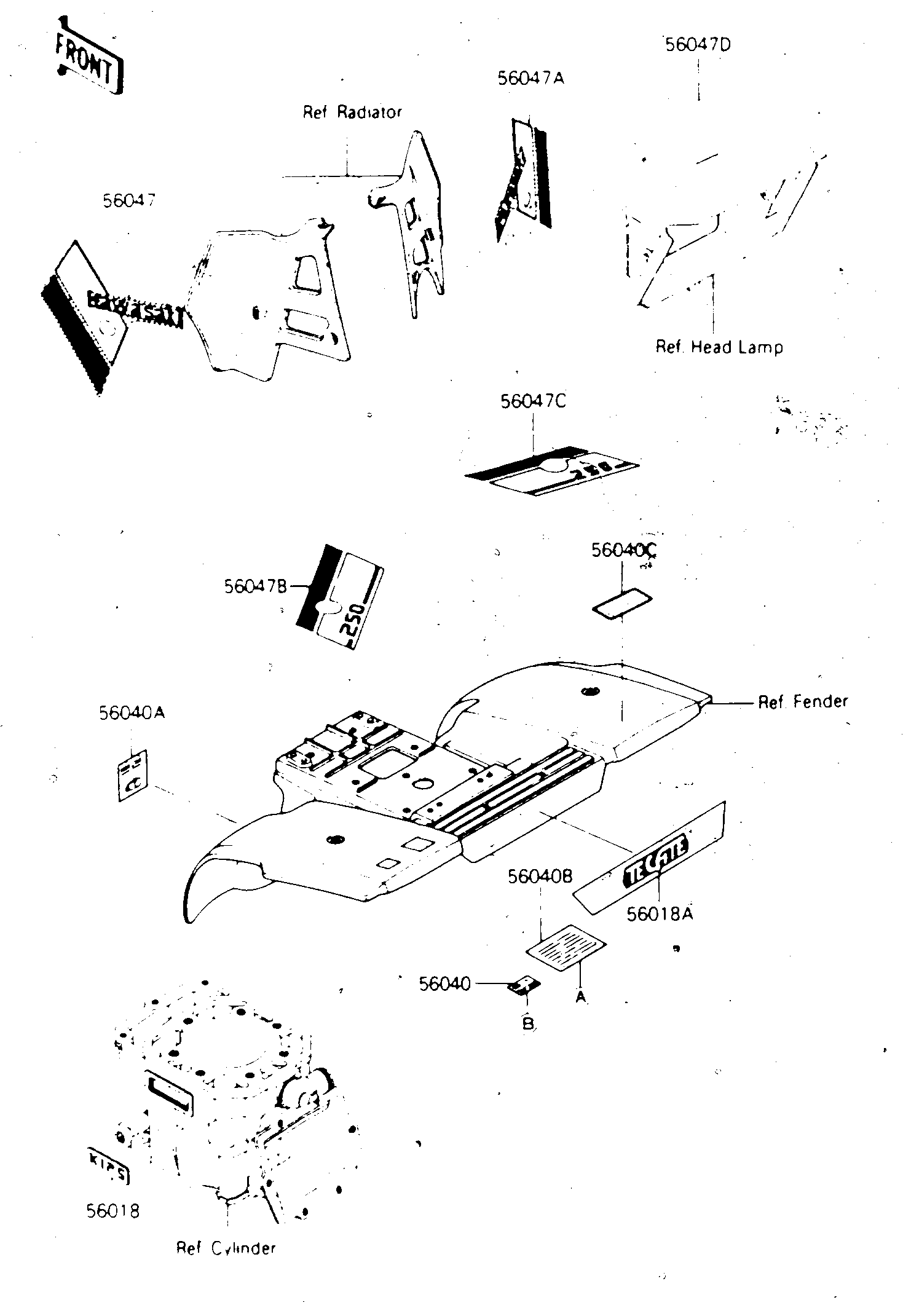

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK 56018 56018-1651 1
MARK,REAR FENDER 56018A 56018-1834 1
LABEL,GASOLINE 56040 56040-1048 1
LABEL-WARNING 56040A 56040-1161 1
LABEL-WARNING,IMPORTA 56040B 56040-1165 1
LABEL-WARNING 56040C 56040-1166 1
PATTERN,SHROUD,L.H 56047 56047-1002 1
PATTERN,SHROUD.R.H. 56047A 56047-1003 1
PATTERN,REAR FENDER 56047B 56047-1004 1
PATTERN,REAR FENDER 56047C 56047-1005 1
PATTERN,HEAD LAMP 56047D 56047-1006 1
