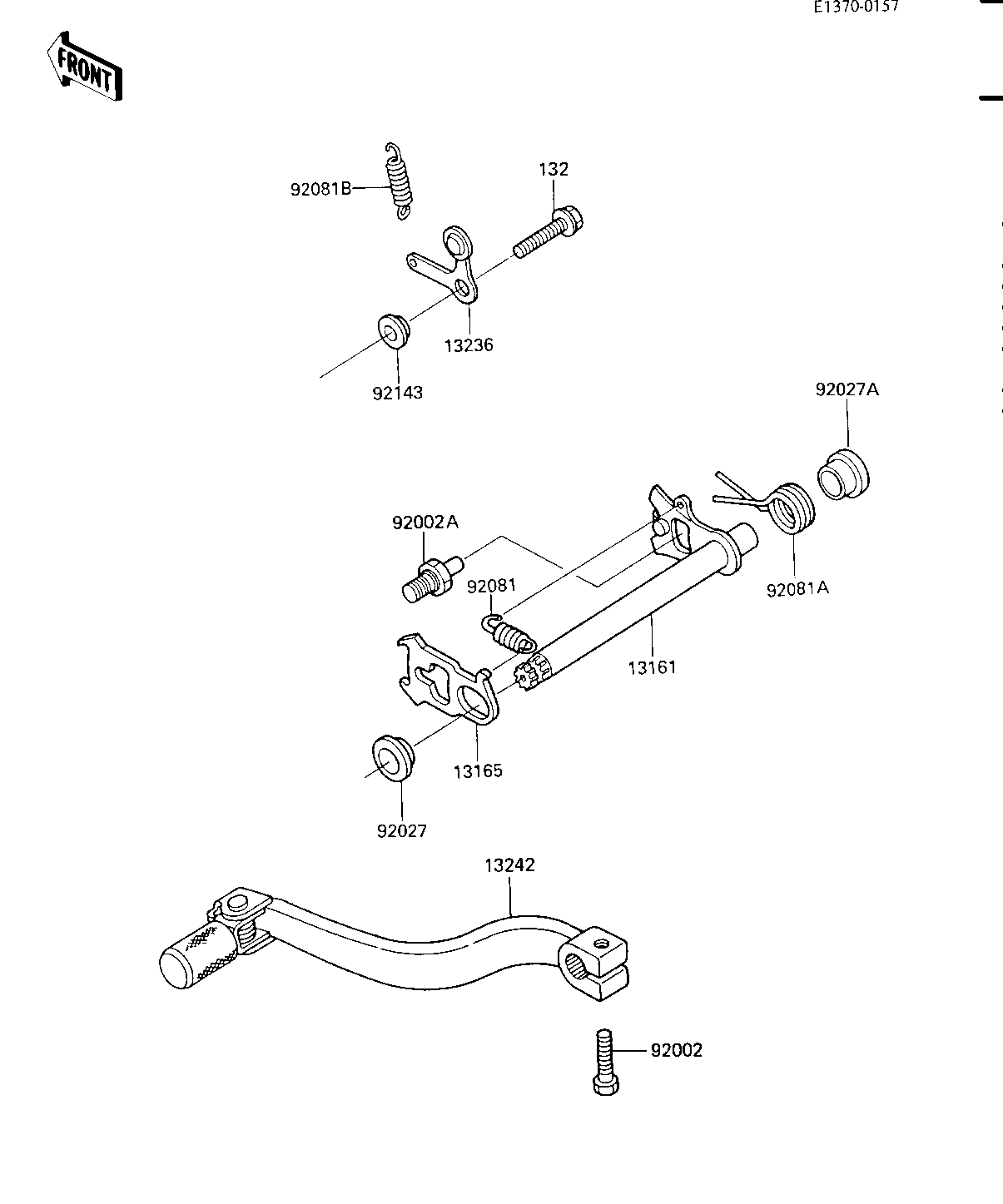

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LEVER-COMP-CHANGE SHA 13161 13161-1126 1
PAWL,CHANGE LEVER 13165 13165-1114 1
LEVER-COMP,POSITION 13236 13236-1152 1
LEVER-ASSY-CHANGE,PED 13242 13242-1205 1
BOLT,6X20 92002 92002-1237 1
BOLT,8X15 92002A 92002-1601 1
COLLAR 92027 92027-1939 1
COLLAR 92027A 92027-1940 1
SPRING-CHANGE LEVER 92081 92081-076 1
SPRING,CHANGE SHAFT R 92081A 92081-1716 1
SPRING,CHNG DRUM LEV 92081B 92083-012 1
COLLAR 92143 92143-1055 1
BOLT-FLANGED-SMALL 132 132G0616 1
