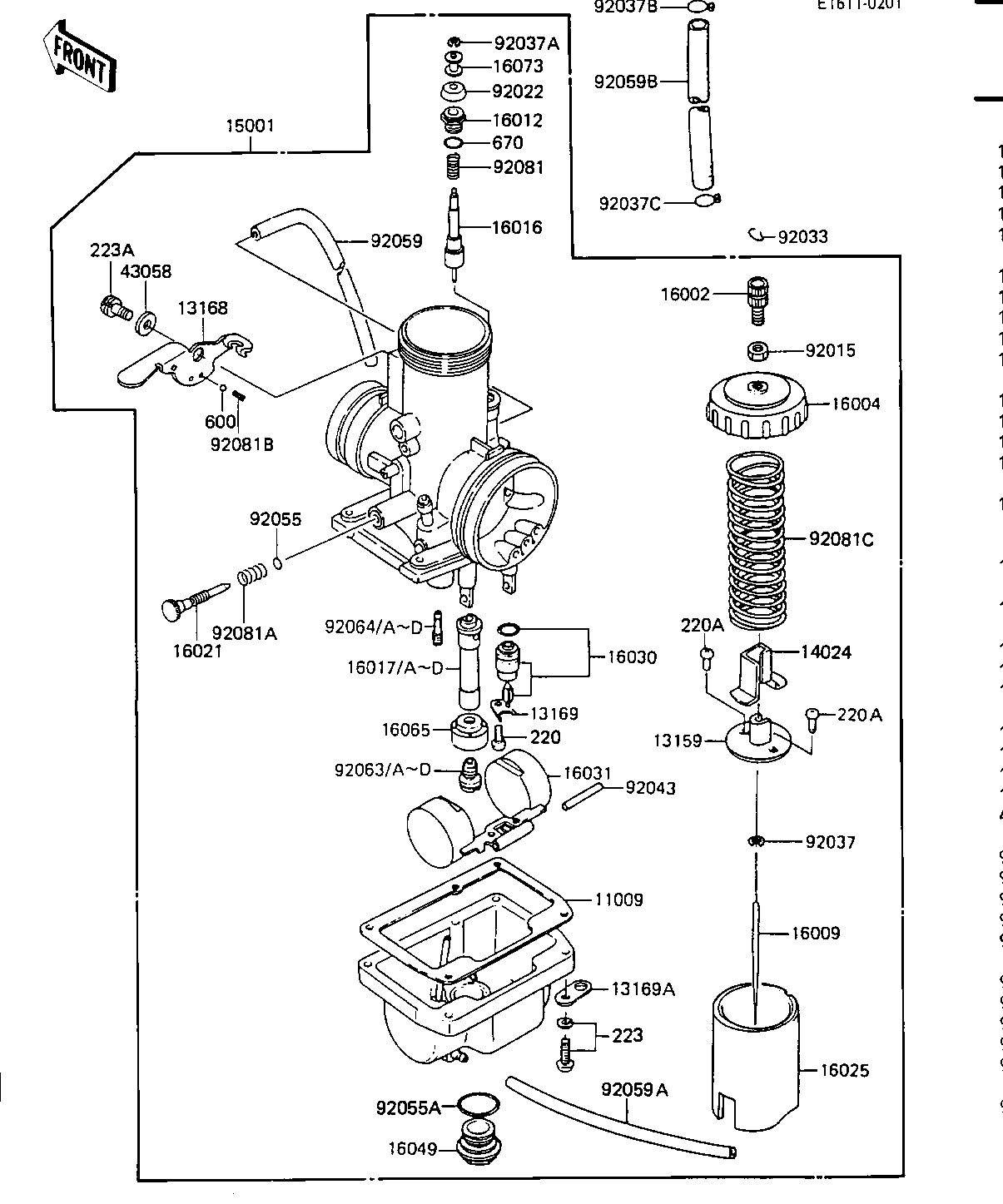

1987 KX80 - CARBURETOR (KX80-G2)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FLOAT CHAMBER 11009 11009-1178 1
CONNECTOR,THROTTLE 13159 13159-1010 1
LEVER,STARTER 13168 13168-1289 1
PLATE, LOCK 13169 13169-1190 1
PLATE,TUBE CLAMP 13169A 13169-1226 1
COVER,THROTTLE VALVE 14024 14025-1494 1
CARBURETOR-ASSY 15001 15001-1308 1
CABLE ADJUSTER 16002 16002-011 1
CAP,MIXING CHAMBER 16004 16004-025 1
NEEDLE-JET,6EJ3 16009 16009-1223 1
CAP-STARTER PLUNGER 16012 16012-1057 1
PLUNGER,STARTER 16016 16016-021 1
JET-NEEDLE,P-2 16017 16017-1223 1
JET-NEEDLE,P-6 16017A 16017-1224 1 (OPTION)
JET-NEEDLE,P-4 16017B 16017-1225 1 (OPTION)
JET-NEEDLE,0-8 16017C 16017-1227 1 (OPTION)
JET-NEEDLE,0-8 16017D 16017-1227 1 (OPTION)
SCREW-THROTTLE STOP 16021 16021-1042 1
VALVE-THROTTLE,CA 2.0 16025 16025-1133 1
FLOAT VALVE ASSY,2.5 16030 16030-1013 1
FLOAT 16031 16031-1011 1
COVER,MAIN JET 16049 16049-1003 1
HOLDER,MAIN JET RING 16065 16065-1033 1
COLLAR 16073 16073-014 1
RING 43058 43058-1061 1
NUT-CABLE ADJUST LOCK 92015 16003-006 1
CAP,STARTER PLUNGER 92022 16039-015 1
CIRCLIP 92033 92036-018 1
CIRCLIP 92037 16008-010 1
CIRCLIP 92037A 16076-003 1
CLAMP,CHAIN OILER 92037B 92037-147 1
CLAMP 92037C 92037-1712 1
FLOAT PIN 92043 16032-003 1
"0" RING 92055 92055-044 1
"0" RING 92055A 92055-1076 1
TUBE,3X5X300 92059 92059-1755 1
TUBE,3X5X250,BLACK 92059A 92059-1308 1
TUBE,5.3X10.5X200 92059B 92059-1665 1
JET-MAIN NO 180A 92063 92063-020 1 (OPTION)
JET-MAIN NO 190A 92063A 92063-021 1 (OPTION)
JET-MAIN NO 200A 92063B 92063-022 1
JET-MAIN NO 210A 92063C 92063-023 1 (OPTION)
JET-MAIN NO 220A 92063D 92063-024 1 (OPTION)
JET-PILOT NO 30 92064 92064-022 1 (OPTION)
JET-PILOT NO 35 92064A 92064-023 1
JET-PILOT NO 40 92064B 92064-024 1 (OPTION)
JET-PILOT NO 45 92064C 92064-044 1 (OPTION)
JET-PILOT,#27.5 92064D 92064-1033 1 (OPTION)
SPRING,STARTER PLUG 92081 16013-008 1
SPRING,THROTTLE ADJST 92081A 92081-1152 1
SPRING,FAST IDLE SHFT 92081B 92081-1260 1
SPRING,THROTTLE VALVE 92081C 92081-1724 1
SCREW PAN HEAD 4X8 220 220B0408 1
SCREW-PAN-CROS 220A 220C0308 2
SCREW-PAN-WS-CROS 223 223B0416 4
SCREW-PAN-WS-CROS 223A 223B0612 1
BALL,STEEL,1/8" 600 600A0400 1
"O" RING,9MM 670 670B1509 1
