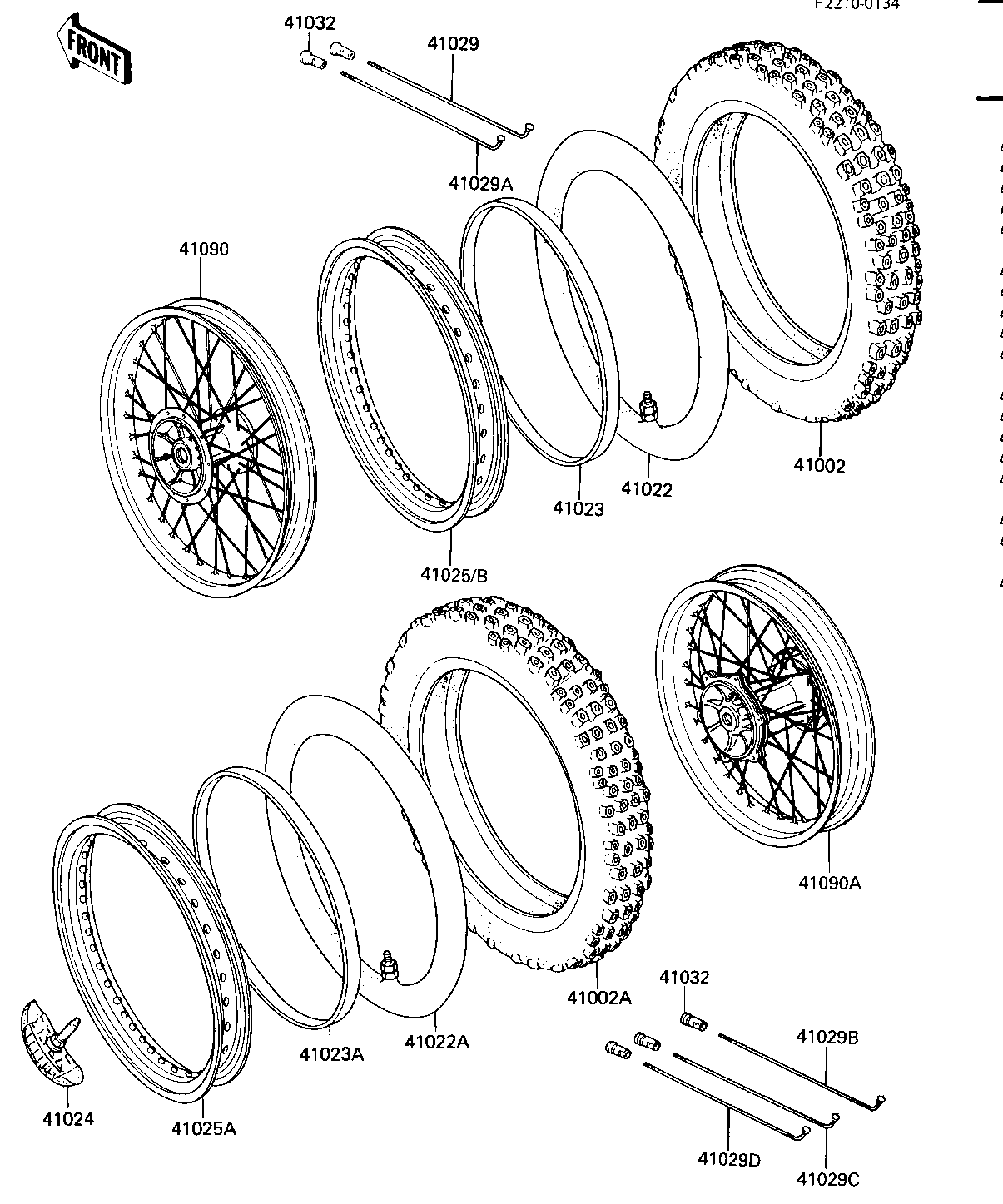

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
TIRE 41002 41002-1574 1
TIRE,RR,90/100-14,K69 41002A 41002-1787 1
TUBE-TIRE 41022 41022-1124 1
TUBE-TIRE 41022A 41022-1125 1
BAND-RIM,FR 41023 41023-1067 1
BAND-RIM,RR 41023A 41023-1068 1
PROTECTOR,BEAD 1.60A 41024 41024-010 1
RIM,RR 41025A 41025-1134 1
RIM,FR,1.40X17 41025B 41025-1170 1
SPOKE-INNER,FR,189MMX 41029 41029-1113 14
SPOKE-INNER,FR,185MMX 41029A 41029-1114 14
SPOKE-INNER,RR,RH 41029B 41029-1138 14
SPOKE-INNER,RR,LH 41029C 41029-1139 7
SPOKE-INNER 41029D 41029-1171 7
NIPPLE-SPOKE 41032 41032-1057 56
WHEEL-SUB ASSY,FR 41090 41090-1054 1 (OPTION)
WHEEL-SUB ASSY,RR 41090A 41090-1055 1 (OPTION)
