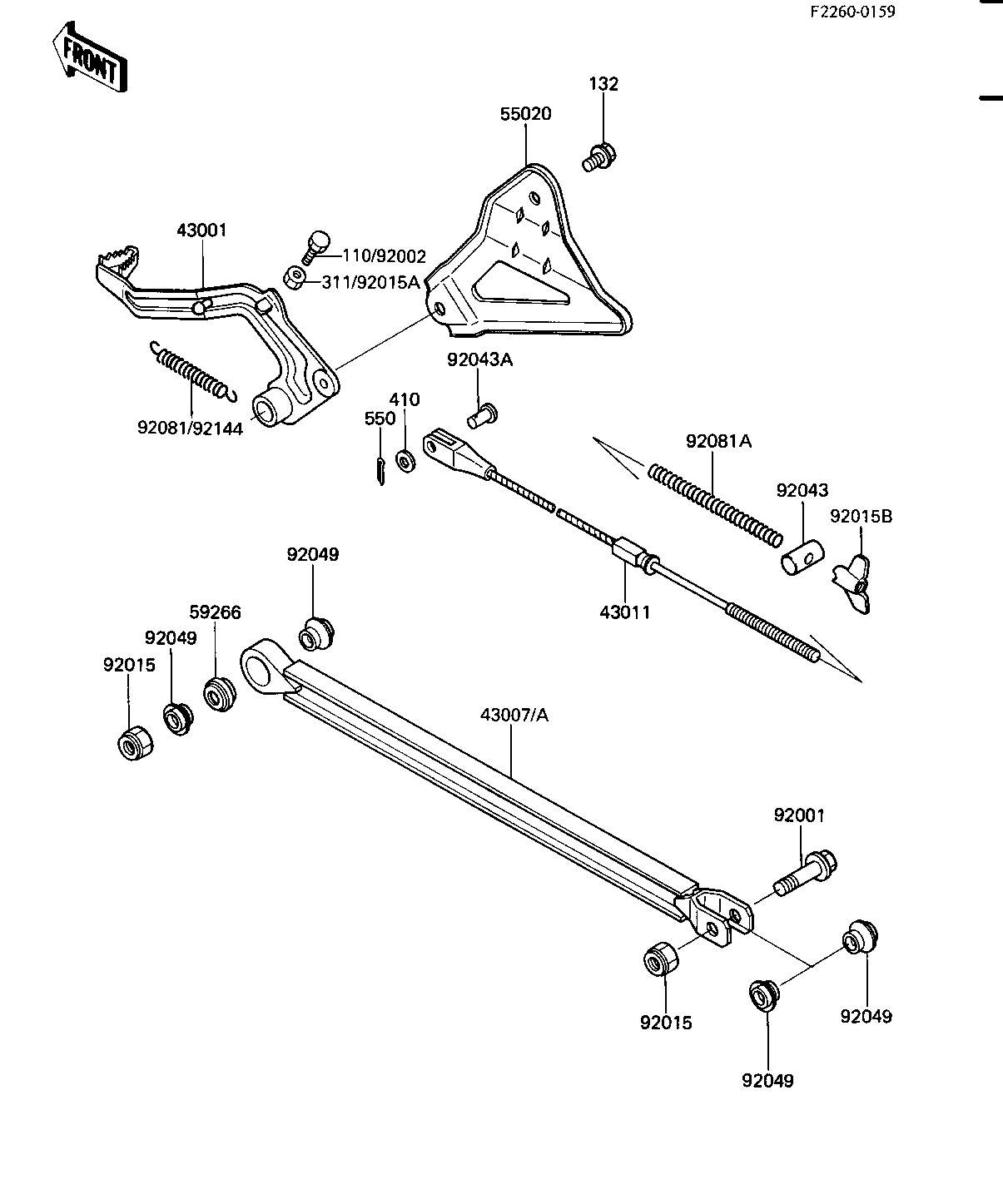

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LEVER-BRAKE,PEDAL 43001 43001-1189 1
ROD-TORQUE 43007A 43007-1127 1
ROD-BRAKE 43011 43011-1123 1
GUARD,BRAKE PEDAL 55020 55020-1200 1
JOINT-BALL,BRAKE PANE 59266 59266-1013 1
BOLT 92001 92001-1738 1
BOLT,6X20 92002 92002-1373 1
NUT,8MM 92015 92015-1134 2
NUT,6MM 92015A 92015-1391 1
NUT,WING,6M/M 92015B 92015-4004 1
PIN BRAKE 92043 92043-039 1
PIN-BRAKE ROD FITTING 92043A 92043-064 1
SEAL-OIL,TORQUE ROD 92049 92049-1100 4
SPRING,BAAKE ROD 92081A 92081-1688 1
SPRING,BRAKE PEDAL RE 92144 92144-1047 1
BOLT-FLANGED-SMALL 132 132G0610 2
WASHER PLAIN 6MM 410 410B0600 1
PIN COTTER 2.0X15 550 550D2015 1
