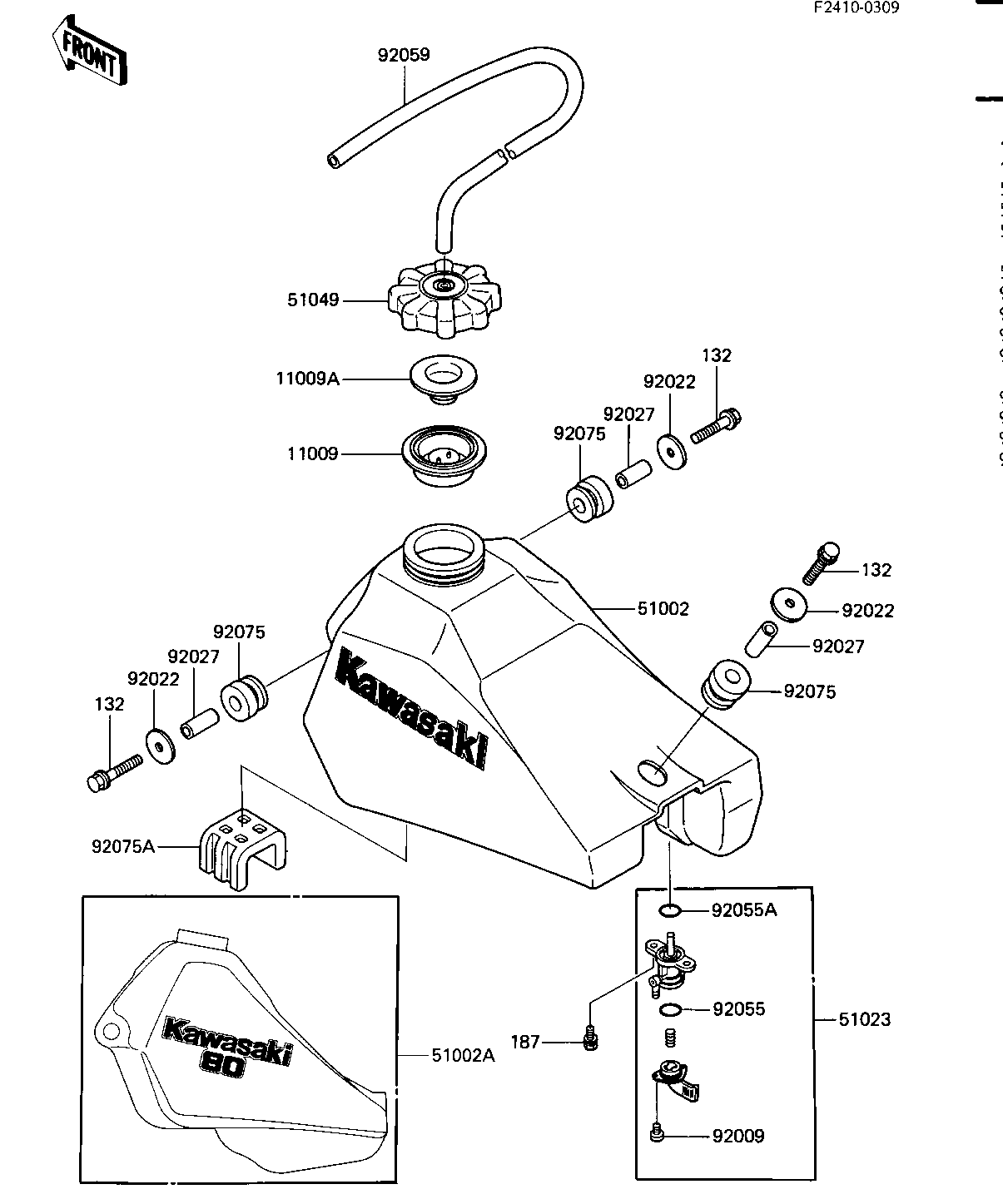

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FUEL TANK 11009 11009-1452 1
GASKET 11009A 11009-1514 1
TANK-COMP-FUEL,L.GREE 51002A 51002-5253-6W 1
TAP-ASSY-FUEL 51023 51023-1115 1
CAP-TANK,FUEL 51049 51049-1006 1
SCREW PAN HEAD 3X8 92009 220E0308 2
WASHER 92022 92022-1690 3
COLLAR,6.8X10X17 92027 92027-1833 3
RING-O 92055 92055-1299 1
RING-O 92055A 92055-1300 1
TUBE,5X9X350 92059 92059-1265 1
DAMPER 92075 92075-1660 3
DAMPER 92075A 92075-1761 1
BOLT-FLANGED-SMALL 132 132G0630 3
BOLT-UPSET-WSP 187 187B0616 2
