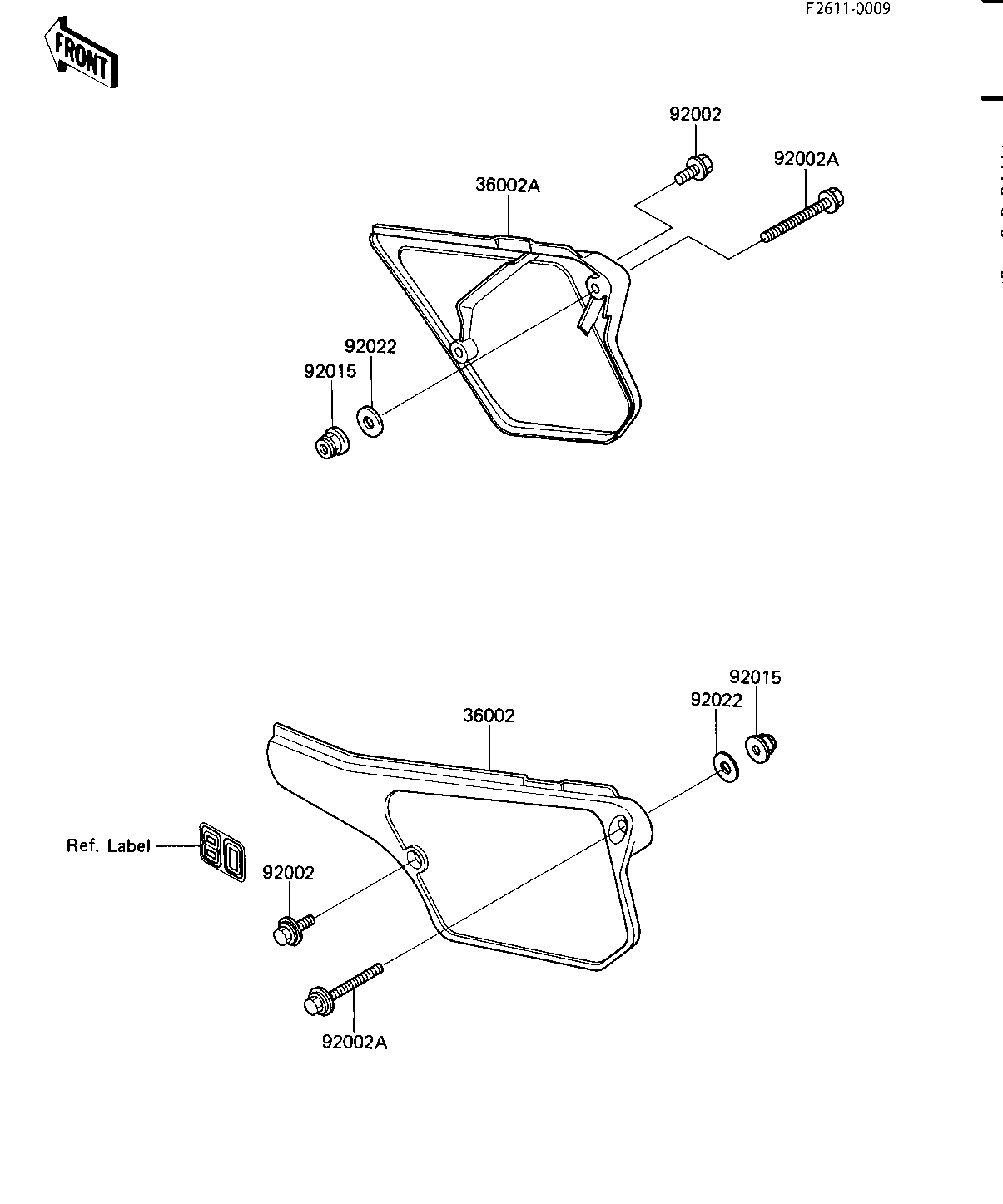

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER-SIDE,LH,L.GREEN 36002 36002-5155-6W 1
COVER-SIDE,RH,L.GREEN 36002A 36002-5156-6W 1
BOLT 92002 92150-1506 2
BOLT 92002A 92150-1486 2
NUT,LOCK,FLANGED,6MM 92015 92015-1339 2
WASHER PLAIN 92022 92022-024 2
