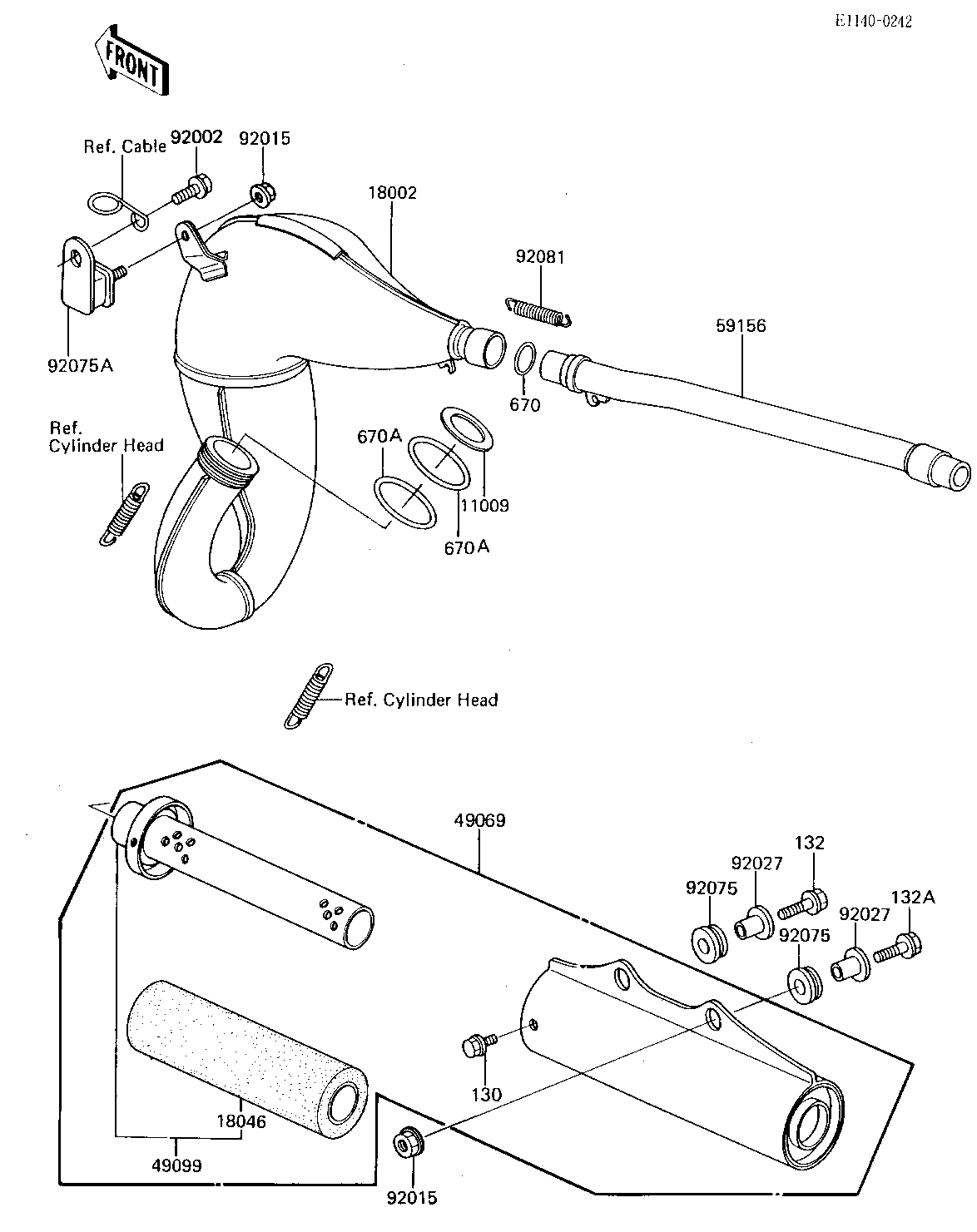

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,EXHAUST PIPE 11009 11009-1587 1
BODY-COMP-MUFFLER 18002 18002-1627 1
WOOL,MUFFLER BAFFLE 18046 18046-1060 1
MUFFLER-ASSY 49069 49069-1053 1
BAFFLE-PIPE MUFFLER 49099 49099-1168 1
PIPE-TAIL,MUFFLER 59156 59156-1052 1
BOLT,6X14 92002 92150-1340 1
NUT-6MM 92015 92015-1078 3
COLLAR 92027 92027-194 2
DAMPER, HEAD LMP FIT 92075 92075-1123 2
DAMPER,MUFFLER 92075A 92075-1891 1
SPRING,MUFFLER 92081 92081-1988 1
BOLT-FLANGED 130 130G0508 2
BOLT-FLANGED-SMALL 132 132G0625 1
BOLT-FLANGED-SMALL 132A 132G0630 1
"O" RING,22M/M 670 670E2022 1
"0" RING,45M/M 670A 670E3045 2
