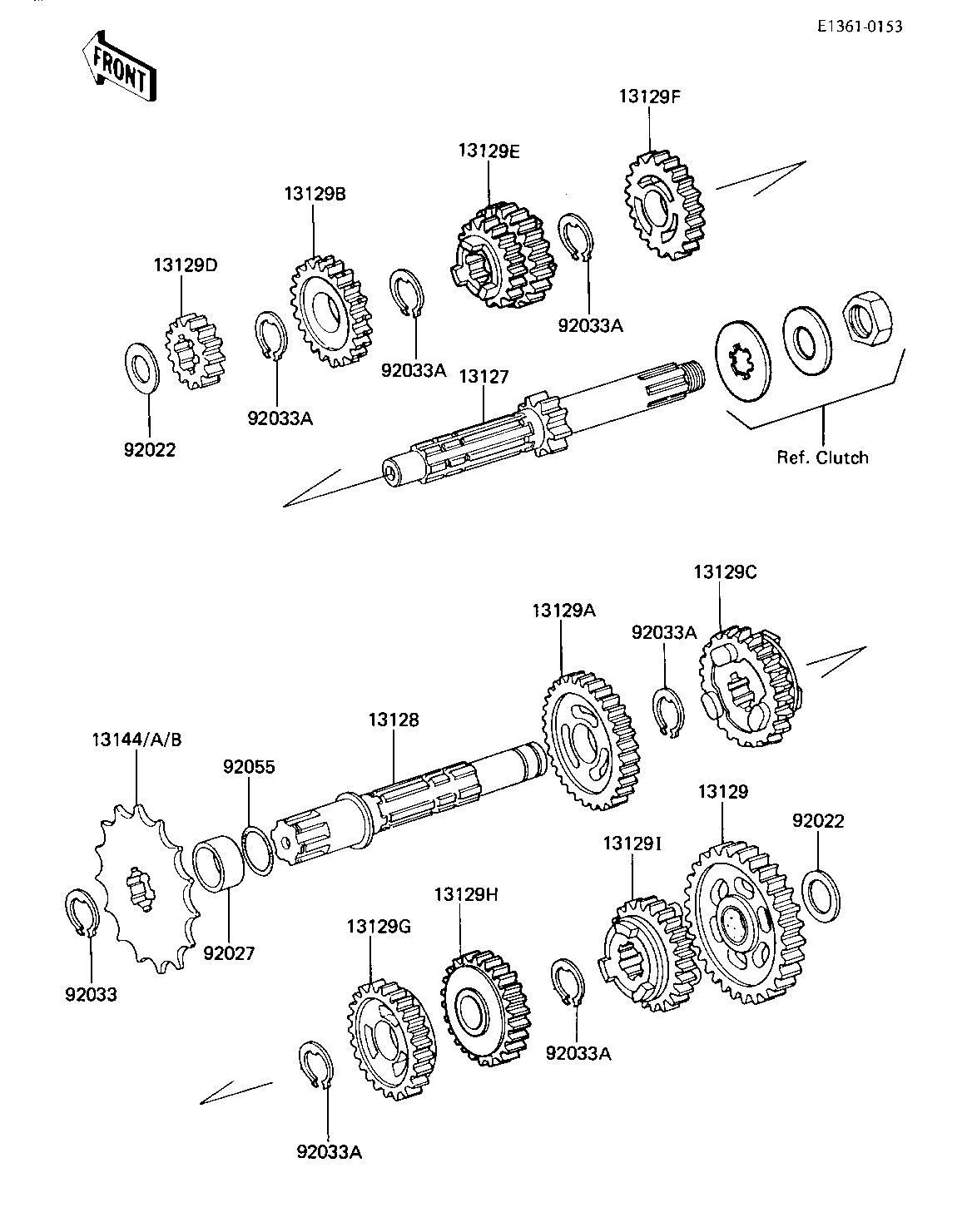

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SHAFT-TRANSMISSION I | 13127 | 13127-1116 | 1 | ||
| SHAFT-TRANSMISSION O | 13128 | 13128-1115 | 1 | ||
| GEAR,OUTPUT,LOW,30T | 13129 | 13129-1304 | 1 | ||
| GEAR OUTPUT 2ND,28T | 13129A | 13129-1386 | 1 | ||
| GEAR,INPUT 5TH,24T | 13129B | 13129-1399 | 1 | ||
| GEAR,OUTPUT 5TH,25T | 13129C | 13129-1405 | 1 | ||
| GEAR,INPUT 2ND,16T | 13129D | 13129-1624 | 1 | ||
| GEAR,INPUT 3RD&4TH,2 | 13129E | 13129-1625 | 1 | ||
| GEAR,INPUT TOP,22T | 13129F | 13129-1626 | 1 | ||
| GEAR,OUTPUT 3RD,28T | 13129G | 13129-1627 | 1 | ||
| GEAR,OUTPUT 4TH,26T | 13129H | 13129-1628 | 1 | ||
| GEAR,OUTPUT TOP,21T | 13129I | 13129-1629 | 1 | ||
| ENGINE SPROCKET,11T | 13144 | 13144-1036 | 1 | (OPTION) | |
| SPROCKET-OUTPUT,12T | 13144A | 13144-1049 | 1 | ||
| SPROCKET-OUTPUT 13T | 13144B | 13144-1050 | 1 | (OPTION) | |
| WASHER,THRUST,15MM | 92022 | 92022-279 | 2 | ||
| COLLAR,20X25X10.8 | 92027 | 92027-1445 | 1 | ||
| RING-SNAP,18MM | 92033 | 92033-1079 | 1 | ||
| RING-SNAP | 92033A | 92033-1231 | 6 | ||
| "0" RING | 92055 | 92055-022 | 1 |
| SHAFT-TRANSMISSION I | |
| REF # | 13127 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHAFT-TRANSMISSION O | |
| REF # | 13128 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,OUTPUT,LOW,30T | |
| REF # | 13129 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR OUTPUT 2ND,28T | |
| REF # | 13129A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,INPUT 5TH,24T | |
| REF # | 13129B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,OUTPUT 5TH,25T | |
| REF # | 13129C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,INPUT 2ND,16T | |
| REF # | 13129D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,INPUT 3RD&4TH,2 | |
| REF # | 13129E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,INPUT TOP,22T | |
| REF # | 13129F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,OUTPUT 3RD,28T | |
| REF # | 13129G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,OUTPUT 4TH,26T | |
| REF # | 13129H |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,OUTPUT TOP,21T | |
| REF # | 13129I |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ENGINE SPROCKET,11T | |
| REF # | 13144 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
| SPROCKET-OUTPUT,12T | |
| REF # | 13144A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPROCKET-OUTPUT 13T | |
| REF # | 13144B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
| WASHER,THRUST,15MM | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR,20X25X10.8 | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-SNAP,18MM | |
| REF # | 92033 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-SNAP | |
| REF # | 92033A |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| "0" RING | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
