Parts Diagrams |

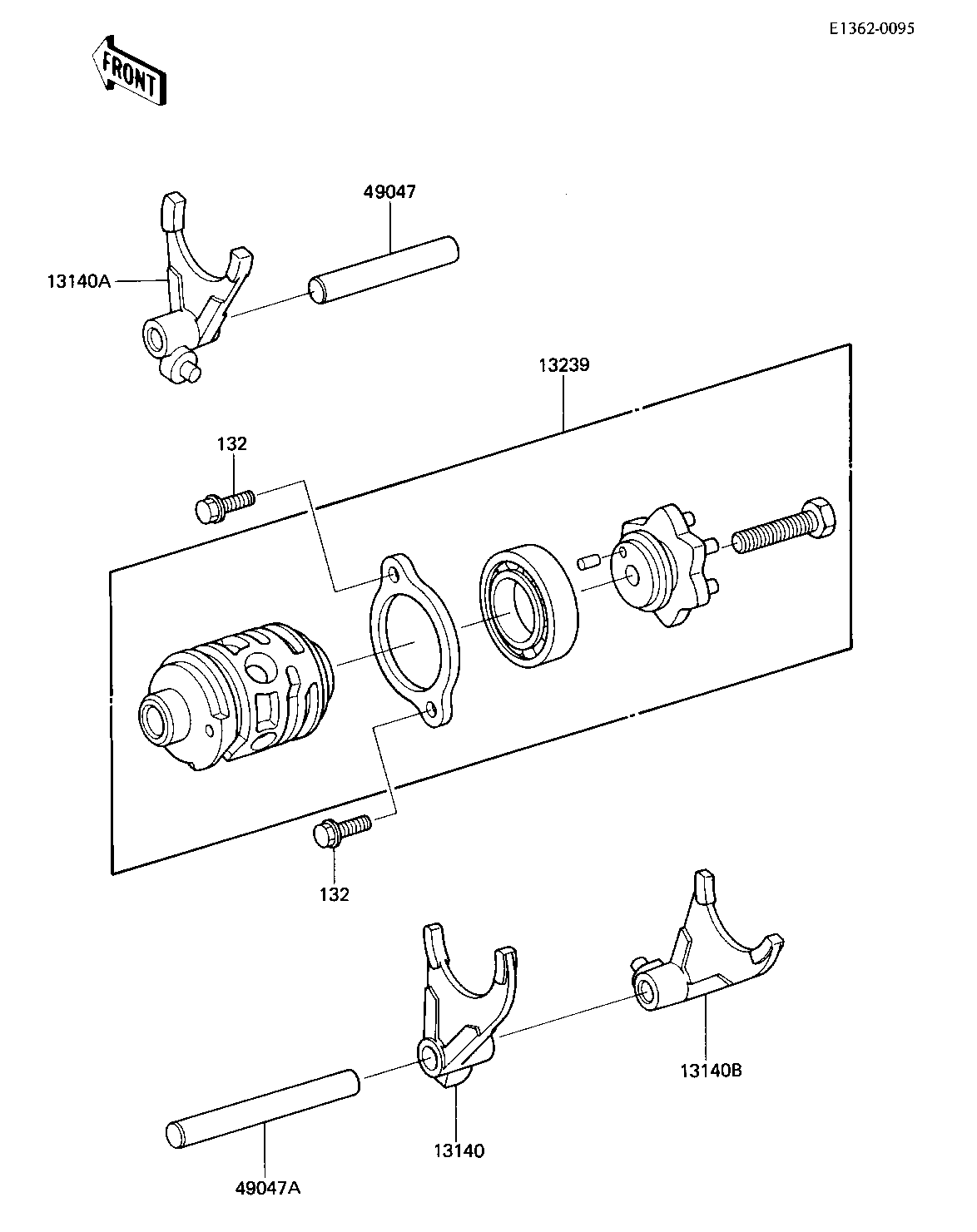

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
FORK-SHIFT,2ND&3RD | 13140 | 13140-1070 | 1 | ||
FORK-SHIFT,5TH&TOP | 13140A | 13140-1123 | 1 | ||
FORK-SHIFT,LOW&4TH | 13140B | 13140-1124 | 1 | ||
DRUM-ASSY-CHANGE | 13239 | 13239-1120 | 1 | ||
ROD-SHIFT,8X58 | 49047 | 49047-1017 | 1 | ||
ROD-SHIFT,8X79.5 | 49047A | 49047-1018 | 1 | ||
BOLT-FLANGED-SMALL | 132 | 132G0614 | 2 |
FORK-SHIFT,2ND&3RD | |
REF # | 13140 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
FORK-SHIFT,5TH&TOP | |
REF # | 13140A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
FORK-SHIFT,LOW&4TH | |
REF # | 13140B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DRUM-ASSY-CHANGE | |
REF # | 13239 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ROD-SHIFT,8X58 | |
REF # | 49047 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ROD-SHIFT,8X79.5 | |
REF # | 49047A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-FLANGED-SMALL | |
REF # | 132 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
