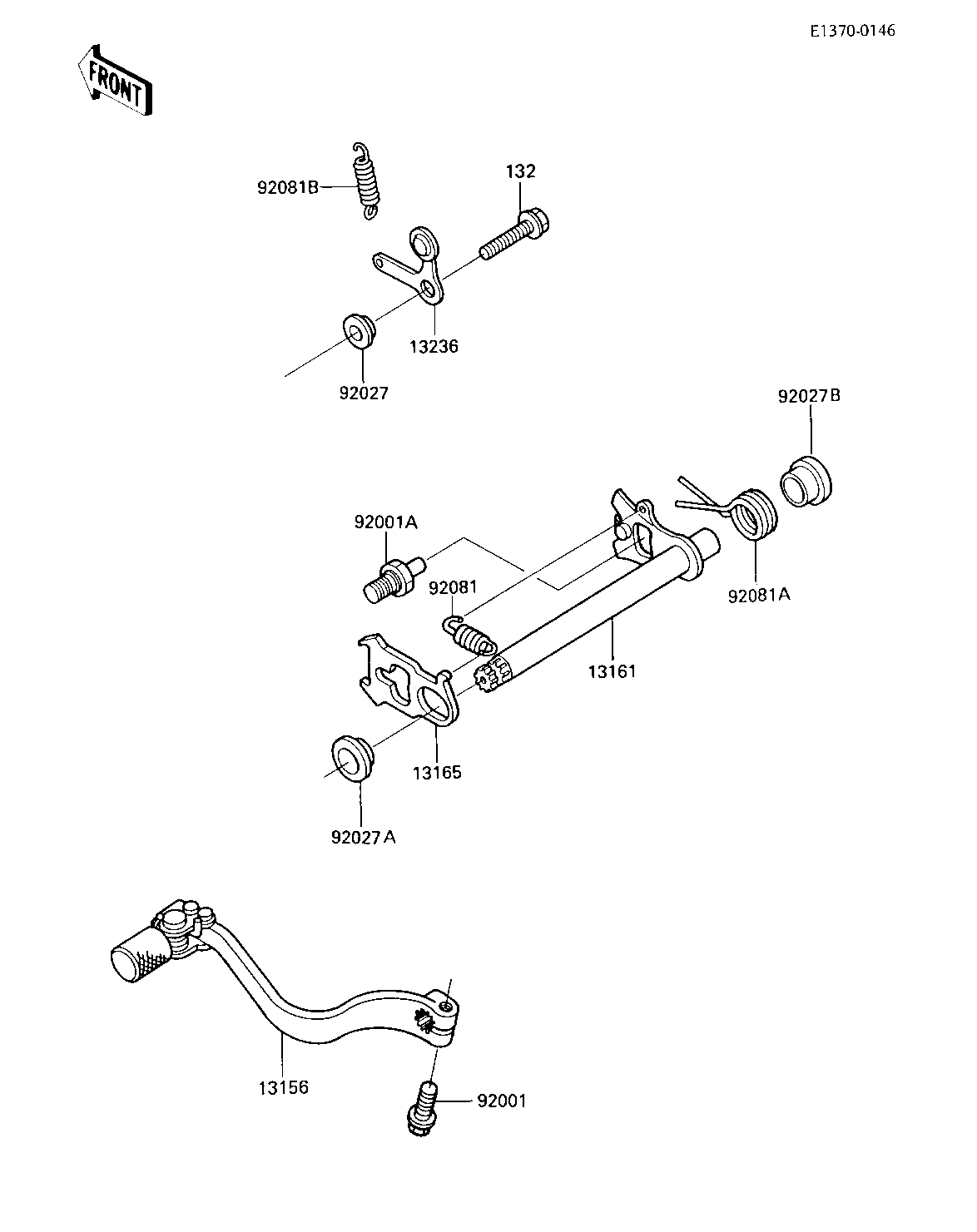

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LEVER-CHANGE,PEDAL 13156 13156-1159 1
LEVER-COMP-CHANGE SH 13161 13161-1101 1
PAWL,CHANGE LEVER 13165 13165-1119 1
LEVER,CHANGE DRUM 13236 13236-1021 1
BOLT,FLANGED,6X22 92001 92001-1352 1
BOLT,RETURN SPRING 92001A 92001-1401 1
COLLAR 92027 92027-1248 1
COLLAR,CHANGE SHAFT, 92027A 92027-1512 1
COLLAR,L=10.6 92027B 92027-1916 1
SPRING-CHANGE LEVER 92081 92081-076 1
SPRING,CHANGE SHAFT 92081A 92081-1716 1
SPRING,CHNG DRUM LEV 92081B 92083-012 1
BOLT-FLANGED-SMALL 132 132G0616 1
