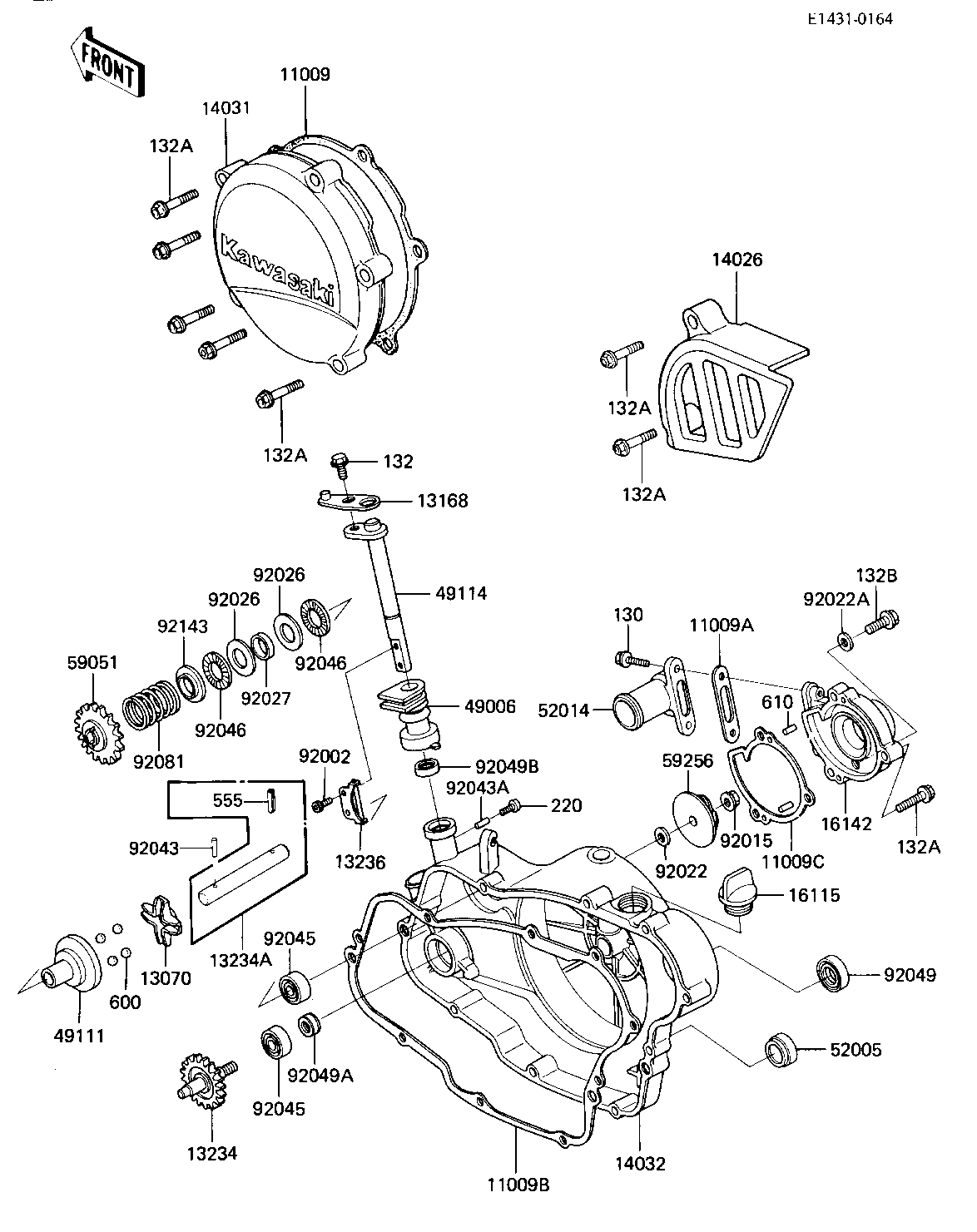

1986 KX125 - ENGINE COVERS/WATER PUMP

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,GENERATOR COV 11009 11009-1266 1
GASKET,ELBOW 11009A 11009-1952 1
GASKET,CLUTCH COVER 11009B 11009-1453 1
GASKET,WATER PUMP CO 11009C 11009-1998 1
GUIDE 13070 13070-1122 1
LEVER,GOVERNOR 13168 13168-1248 1
SHAFT-COMP,WATER PUM 13234 13234-1053 1
SHAFT-COMP,GOVERNOR 13234A 13234-1059 1
LEVER-COMP,GOVERNOR 13236 13236-1182 1
COVER-CHAIN 14026 14026-1119 1
COVER-GENERATOR 14031 14031-1074 1
COVER-CLUTCH 14032 14032-1177 1
FILLER,OIL 16115 16115-018 1
COVER-PUMP,WATER 16142 16142-1058 1
BOOT,GOVERNOR 49006 49006-1171 1
HOLDER-GOVERNOR WEIG 49111 49111-1051 1
SHAFT-GOVERNOR 49114 49114-1051 1
GAUGE,OIL LEVEL 52005 52005-1055 1
ELBOW 52014 52014-5001 1
GEAR-SPUR,GOVERNOR 59051 59051-1126 1
IMPELLER,WATER PUMP 59256 59256-1002 1
BOLT,SOCKET,4X8 92002 92002-1403 2
NUT-6MM 92015 92015-1078 1
WASHER,6X14X2 92022 92022-1393 1
WASHER,8.2X14X1 92022A 92022-1488 1
SPACER,15X28X1 92026 92026-1238 2
COLLAR,15.2X17X4 92027 92027-1839 1
PIN,3X12.8 92043 92043-1256 1
PIN,2X9.8 92043A 92043-1293 1
BEARING-BALL 92045 92045-1212 2
BEARING-NEEDLE,AXK11 92046 92046-1052 2
OIL SEAL SB16244 92049 92049-002 1
SEAL-OIL,MHSD8X18X10 92049A 92049-1366 1
SEAL-OIL,SDO8144 92049B 92049-1207 1
SPRING,GOVERNOR 92081 92081-1769 1
COLLAR 92143 92143-1001 1
BOLT-FLANGED 130 130G0516 2
BOLT-FLANGED-SMALL 132 132G0608 1
BOLT-FLANGED-SMALL 132A 132G0625 19
BOLT-FLANGED-SMALL 132B 132G0810 1
SCREW-PAN-HEAD 3X6 220 220B0306 1
PIN-SPRING 555 555A0312 1
BALL STEEL 5/16' 600 600A1000 4
PIN DOWEL 4X8 610 610A0408 2
