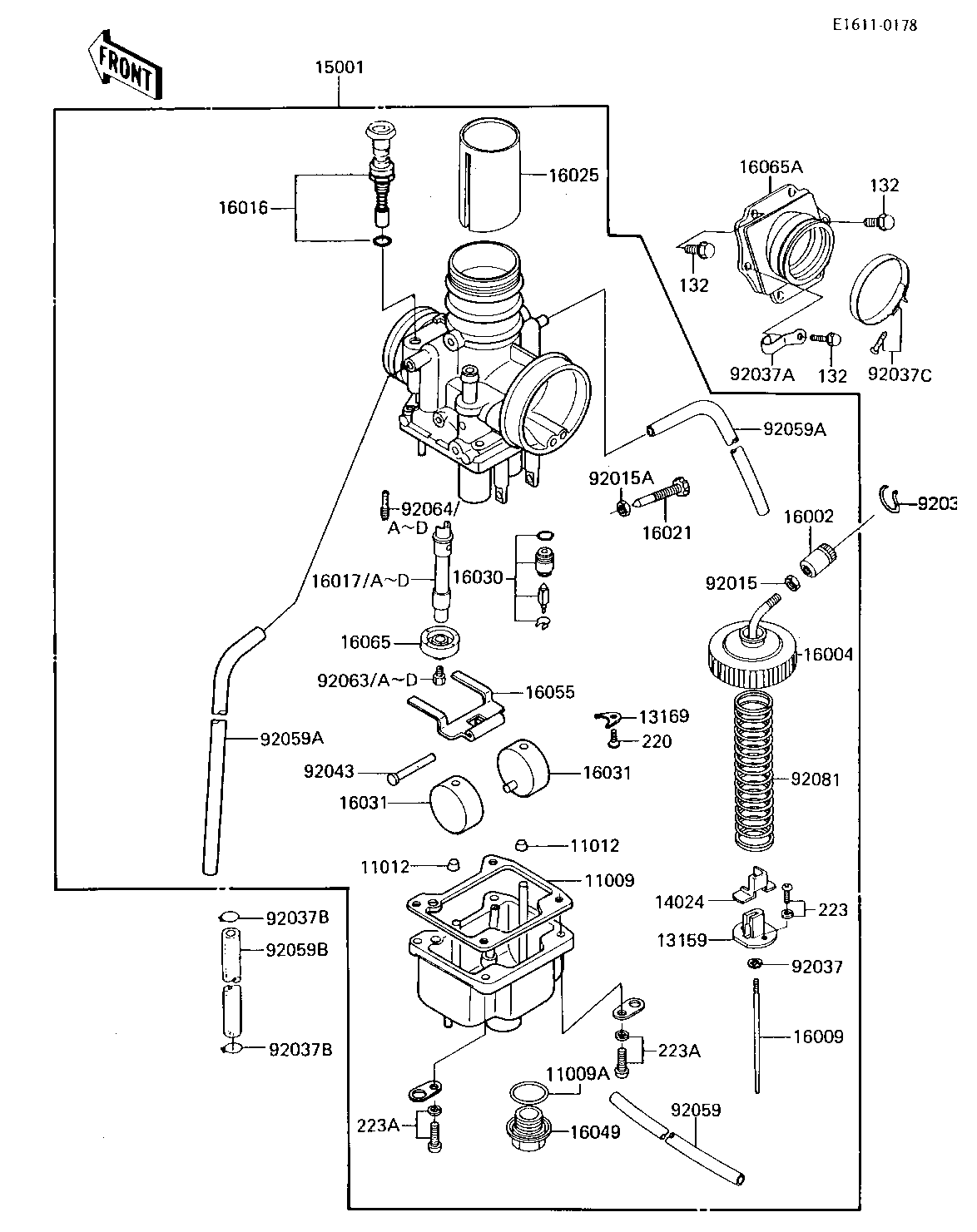

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,FLOAT CHAMBER | 11009 | 11009-1275 | 1 | ||
GASKET-COVER | 11009A | 16038-009 | 1 | ||
CAP,FLOAT | 11012 | 11012-1047 | 2 | ||
CONNECTOR,THROTTLE | 13159 | 13159-1010 | 1 | ||
PLATE, LOCK | 13169 | 13169-1190 | 1 | ||
COVER,THROTTLE,VALVE | 14024 | 14025-1113 | 1 | ||
CARBURETOR-ASSY | 15001 | 15001-1204 | 1 | ||
ADJUSTER,CABLE | 16002 | 16002-1006 | 1 | ||
CAP-CHAMBER,MIXING | 16004 | 16004-1013 | 1 | ||
NEEDLE-JET,6J7-3 | 16009 | 16009-1300 | 1 | ||
PLUNGER ASSY,STARTER | 16016 | 16016-1013 | 1 | ||
JET-NEEDLE,S-2 | 16017 | 16017-1125 | 1 | (OPTION) | |
JET-NEEDLE,R-4 | 16017A | 16017-1212 | 1 | (OPTION) | |
JET-NEEDLE,R-6 | 16017B | 16017-1213 | 1 | (OPTION) | |
JET-NEEDLE,S-0 | 16017C | 16017-1245 | 1 | (OPTION) | |
JET-NEEDLE-R-8 | 16017D | 16017-1246 | 1 | ||
SCREW-THROTTLE STOP | 16021 | 16021-1108 | 1 | ||
VALVE-THROTTLE,CA.3. | 16025 | 16025-1114 | 1 | ||
VALVE-FLOAT,3.3 | 16030 | 16030-1020 | 1 | ||
FLOAT | 16031 | 16031-029 | 2 | ||
COVER,MAIN JET | 16049 | 16049-006 | 1 | ||
ARM,FLOAT | 16055 | 16055-009 | 1 | ||
HOLDER,NEEDLE JET | 16065 | 16065-1045 | 1 | ||
HOLDER-CARBURETOR | 16065A | 16065-1139 | 1 | ||
NUT CABLE ADJUST LOC | 92015 | 16003-004 | 1 | ||
NUT-CABLE ADJUST LOC | 92015A | 16003-006 | 1 | ||
CIRCLIP | 92033 | 92036-018 | 1 | ||
CIRCLIP | 92037 | 16008-010 | 1 | ||
CLAMP CABLE | 92037A | 92037-016 | 1 | ||
CLAMP,CHAIN OILER | 92037B | 92037-147 | 2 | ||
CLAMP,CARBURETOR HOL | 92037C | 92037-1484 | 1 | ||
PIN,FLOAT | 92043 | 16032-008 | 1 | ||
TUBE,3.5X6.5X350 | 92059 | 92059-1211 | 1 | ||
TUBE,4X7X400,OVERFLO | 92059A | 92059-1292 | 2 | ||
TUBE,5.8X10.8X160 | 92059B | 92059-1673 | 1 | ||
MAIN JET NO 360A | 92063 | 92063-032 | 1 | (OPTION) | |
JET-MAIN NO 320A | 92063A | 92063-047 | 1 | (OPTION) | |
JET-MAIN NO 330A | 92063B | 92063-048 | 1 | (OPTION) | |
MAIN JET NO 340A | 92063C | 92063-049 | 1 | ||
JET-MAIN NO 350A | 92063D | 92063-050 | 1 | (OPTION) | |
JET-PILOT NO 30 | 92064 | 92064-022 | 1 | (OPTION) | |
JET-PILOT NO 35 | 92064A | 92064-023 | 1 | ||
JET-PILOT NO 40 | 92064B | 92064-024 | 1 | (OPTION) | |
JET-PILOT NO 45 | 92064C | 92064-044 | 1 | (OPTION) | |
JET-PILOT,#27.5 | 92064D | 92064-1033 | 1 | (OPTION) | |
SPRING,THROTTLE VALV | 92081 | 92081-1432 | 1 | ||
BOLT-FLANGED-SMALL | 132 | 132G0620 | 6 | ||
SCREW PAN HEAD 4X6 | 220 | 220B0406 | 1 | ||
SCREW-PAN-WS-CROS | 223 | 223B0308 | 2 | ||
SCREW-PAN-WS-CROS | 223A | 223B0518 | 4 |
