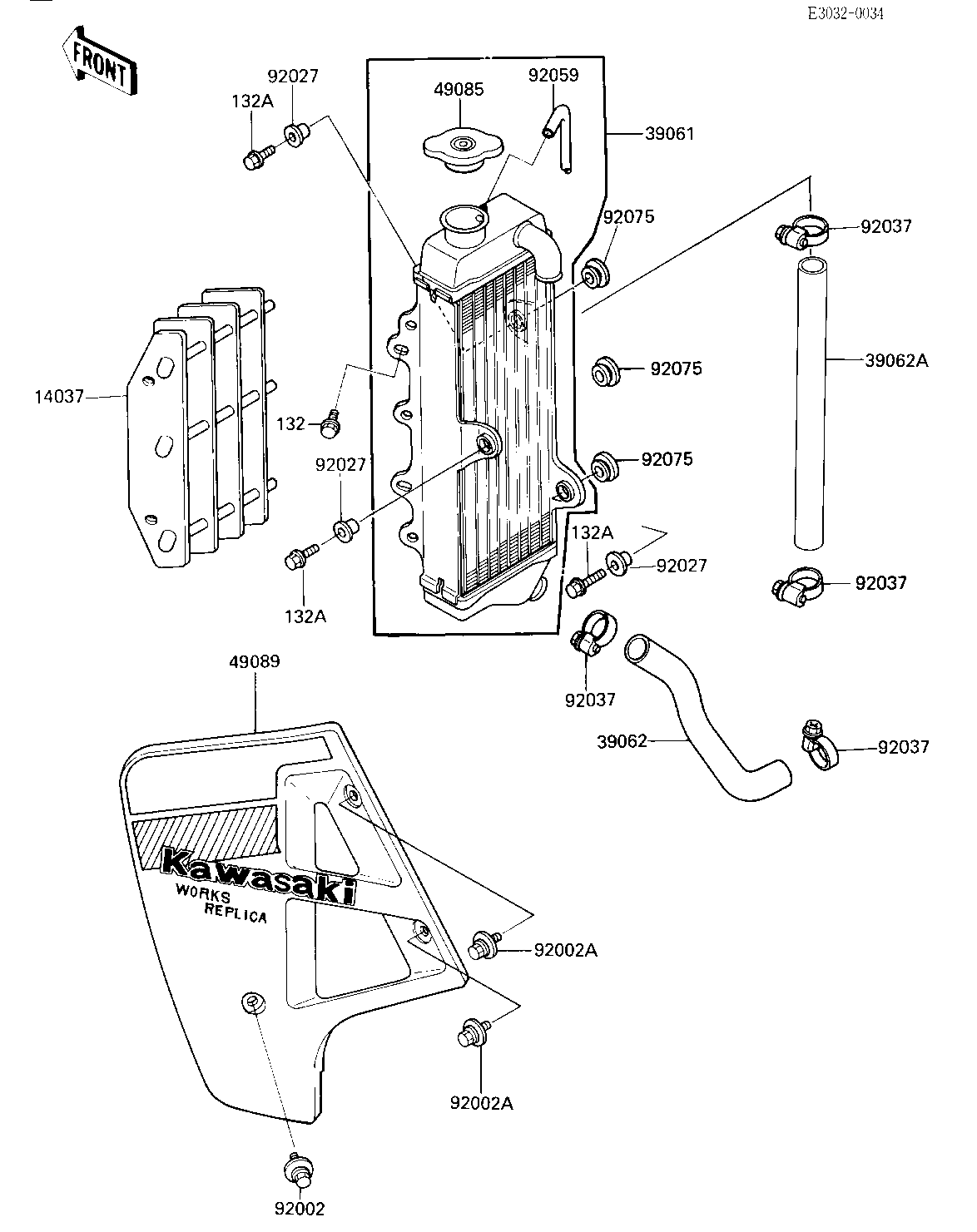

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREEN,RADIATOR 14037 14037-1053 1
RADIATOR-ASSY 39061 39061-1078 1
HOSE-COOLING,RADIATO 39062 39062-1129 1
HOSE-COOLING,RADIATO 39062A 39062-1256 1
CAP-ASSY-PRESSURE 49085 49085-1003 1
SHROUD-ENGINE,LH,L.G 49089 49089-5017-6W 1
BOLT,6X14 92002 92150-1340 1
BOLT,FLANGED,6X10 92002A 92002-1637 2
COLLAR,RADIATOR GUAR 92027 92027-1183 3
CLAMP,COOLING HOSE 92037 92037-1589 4
TUBE,5X9X800 92059 92059-1383 1
DAMPER,RADIATOR 92075 92075-1352 3
BOLT-FLANGED-SMALL 132 132G0610 1
BOLT-FLANGED-SMALL 132A 132G0625 3
