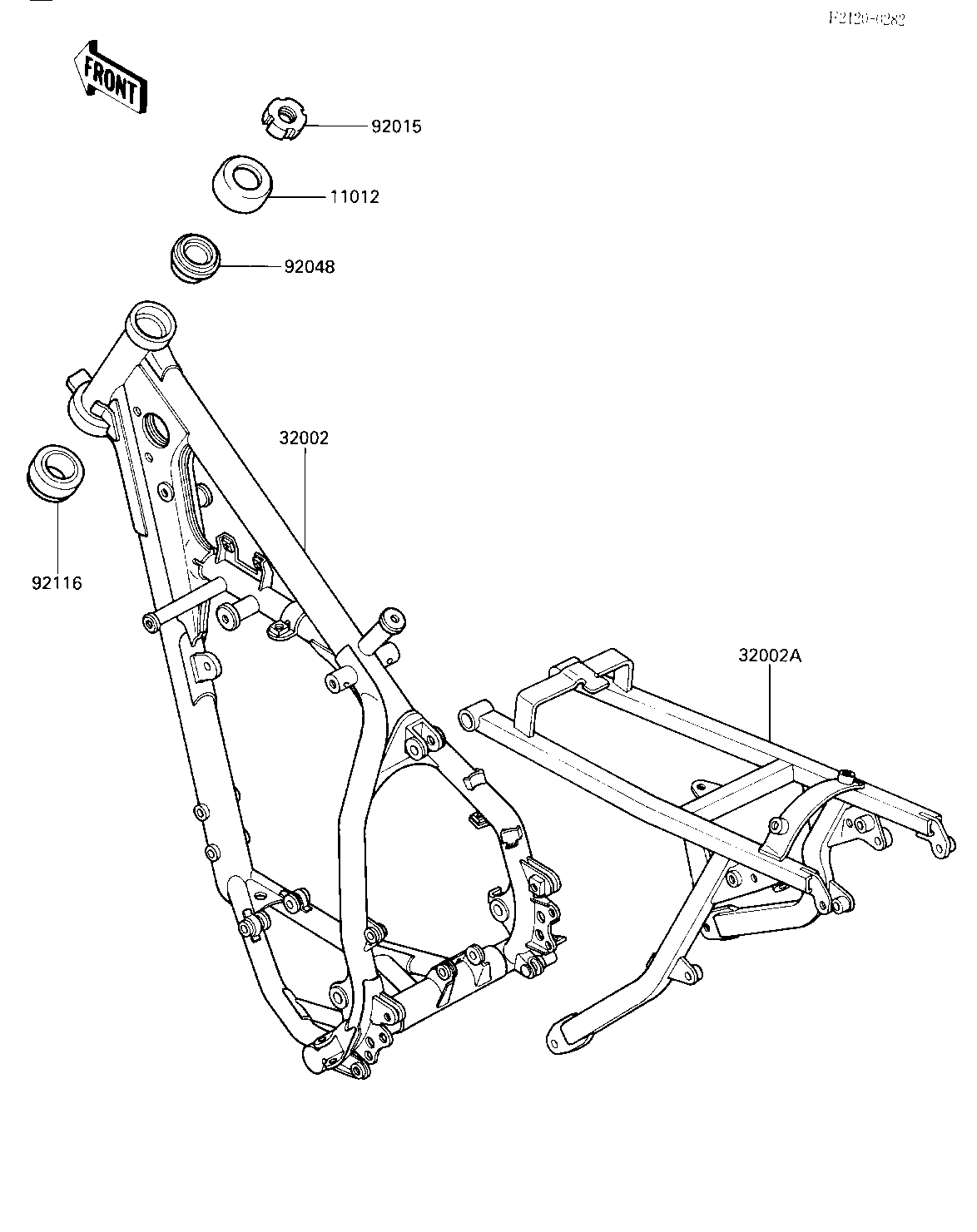

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,STEERING STEM 11012 46098-015 1
FRAME-COMP,FR 32002 32002-1846 1
FRAME-COMP,RR 32002A 32002-1847 1
NUT,25MM,T=12 92015 92015-1467 1
BEARING,STEERING STE 92048 92047-017 1
BEARING,ROLLER,32006 92116 92116-1008 1
