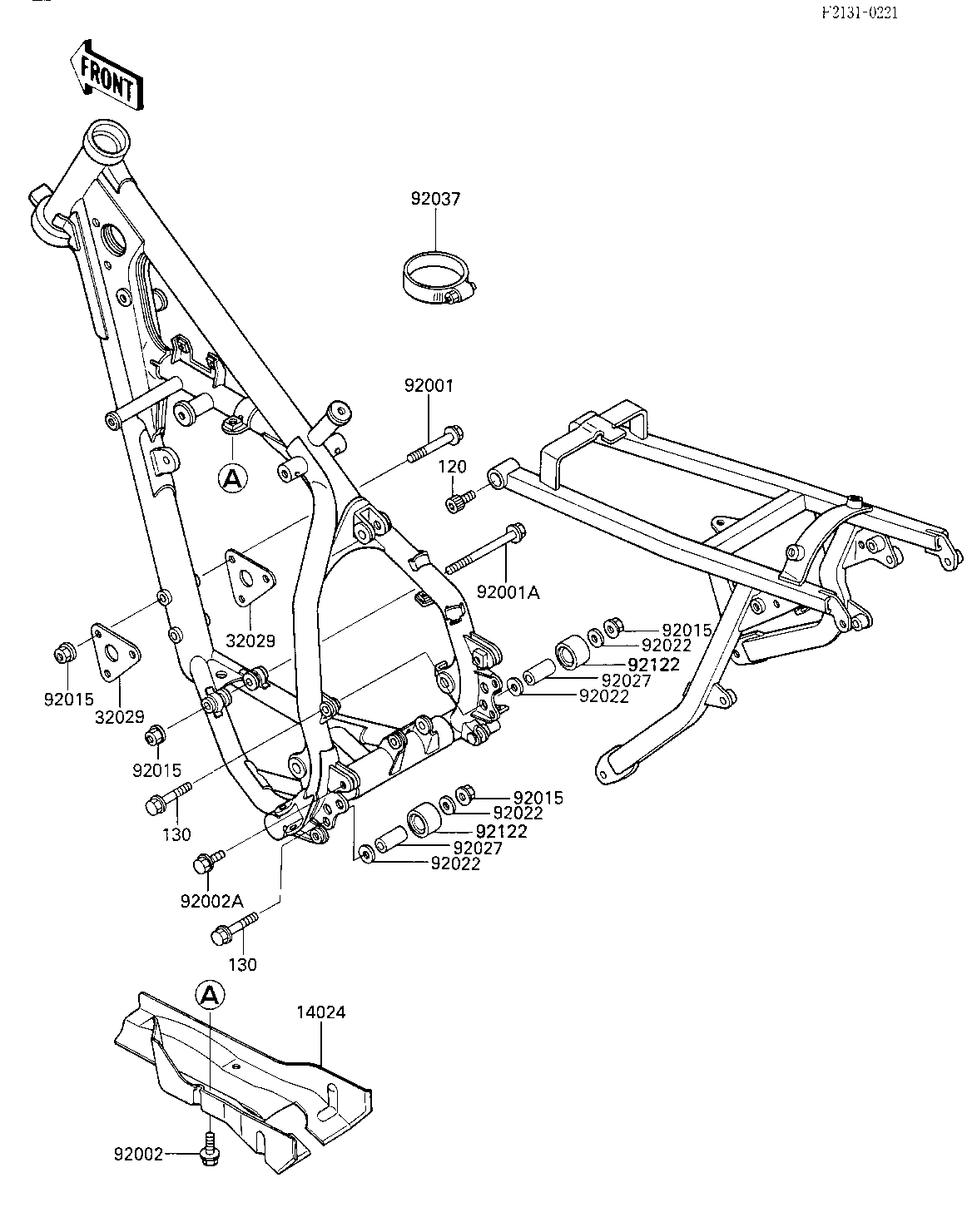

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,AIR FILTER 14024 14024-1172 1
BRACKET-ENGINE 32029 32029-1437 2
BOLT,8X67 92001 92001-1928 3
BOLT,8X130 92001A 92001-1929 1
BOLT,6X14 92002 92150-1340 2
BOLT,FLANGED,8X22 92002A 92002-1676 2
NUT-8MM 92015 92015-1143 6
WASHER,8.5X22X1.5 92022 92022-1629 4
COLLAR,CHAIN ROLLER 92027 92027-1670 2
CLAMP,RESERVE TANK 92037 92037-1706 2
ROLLER,CHAIN GUIDE 92122 92122-1117 2
BOLT 120 120P0816 2
BOLT,FLANGED,8X50 130 130G0850 2
