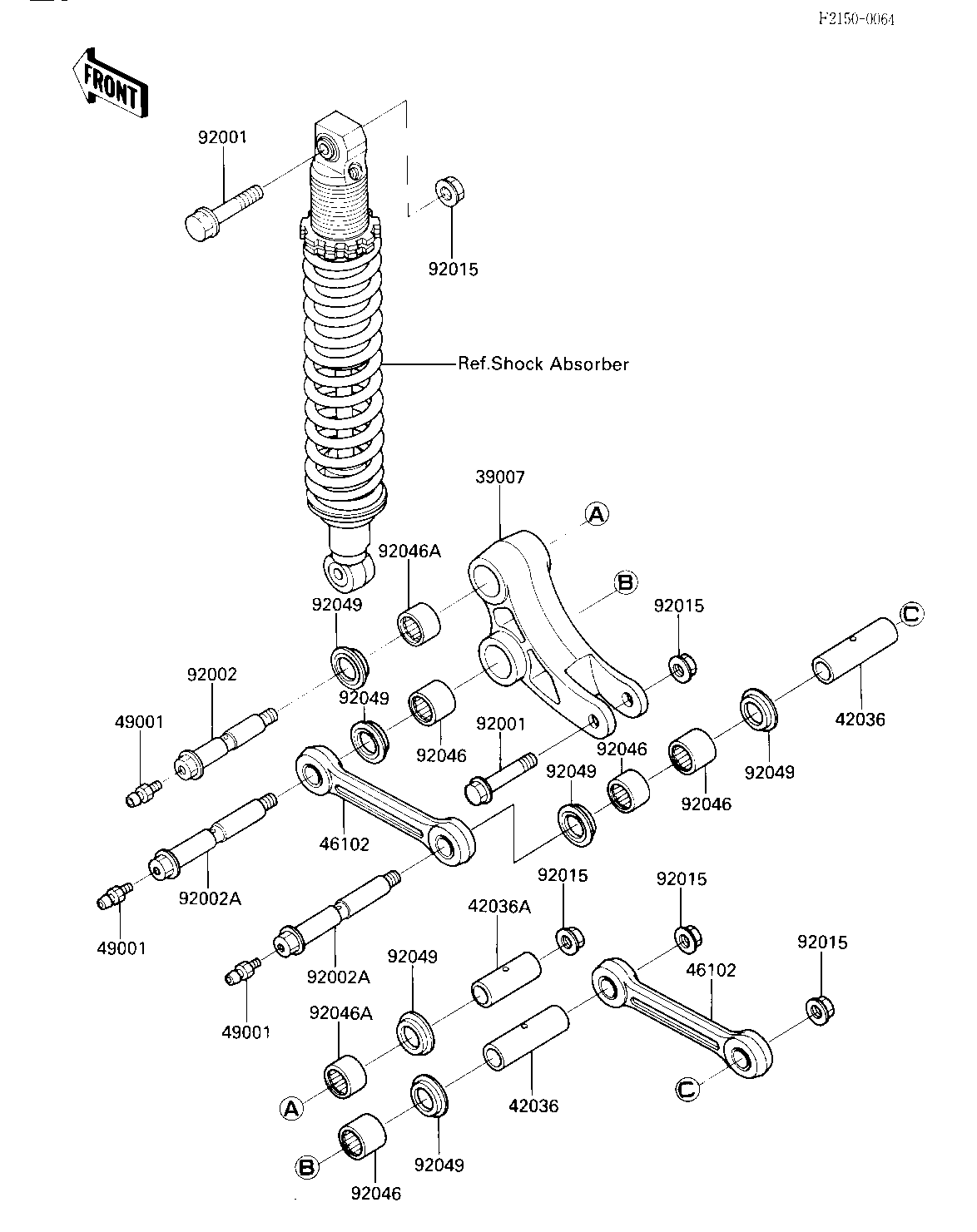

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
ARM-SUSP,UNI TRAK 39007 39007-1090 1
SLEEVE,L=65 42036 42036-1174 2
SLEEVE,L=49 42036A 42036-1175 1
ROD,SUSPENSION 46102 46102-1159 2
NIPPLE-GREASE,ROD BO 49001 49001-1051 3
BOLT,10X50 92001 92001-1913 2
BOLT 92002 92002-1882 1
BOLT 92002A 92002-1883 2
NUT,10MM 92015 92015-1415 5
BEARING-NEEDLE,F-202 92046 92046-1150 4
BEARING-NEEDLE,F-201 92046A 92046-1151 2
SEAL-OIL,MHA20265.2F 92049 92049-1154 6
