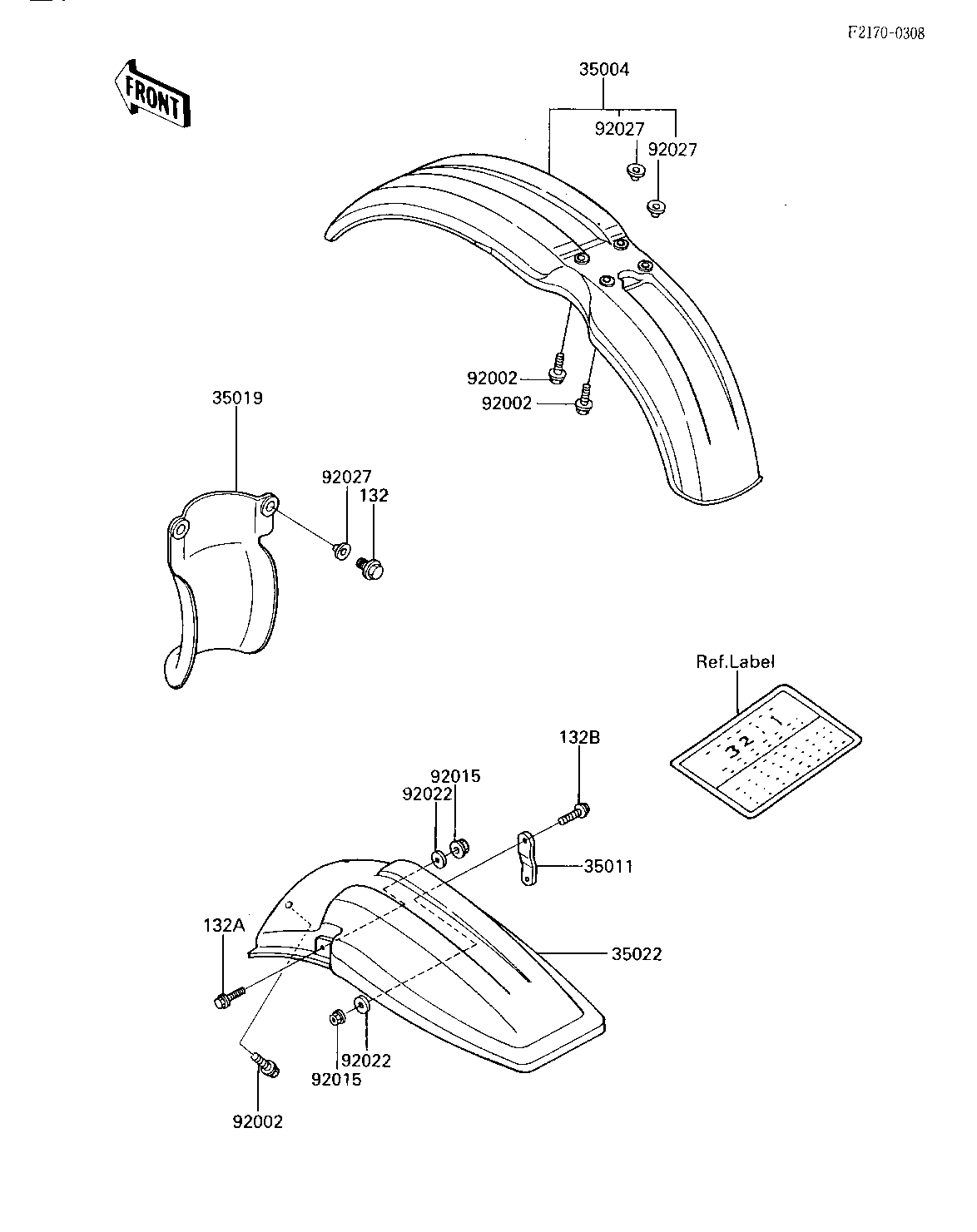

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FENDER-FRONT,L.GREEN 35004 35004-1233-6W 1
STAY,MUFFLER 35011 35011-1262 1
FLAP,AIR FILTER 35019 35019-1159 1
FENDER-COMP-REAR,L.G 35022 35022-1217-6W 1
BOLT 92002 92150-1506 6
NUT-6MM 92015 92015-1078 2
WASHER 6.5X20X1.6T 92022 92022-125 2
COLLAR,FRONT FENDER 92027 92027-1936 6
BOLT-FLANGED-SMALL 132 132G0616 2
BOLT-FLANGED-SMALL 132A 132G0620 1
BOLT-FLANGED-SMALL 132B 132G0630 1
