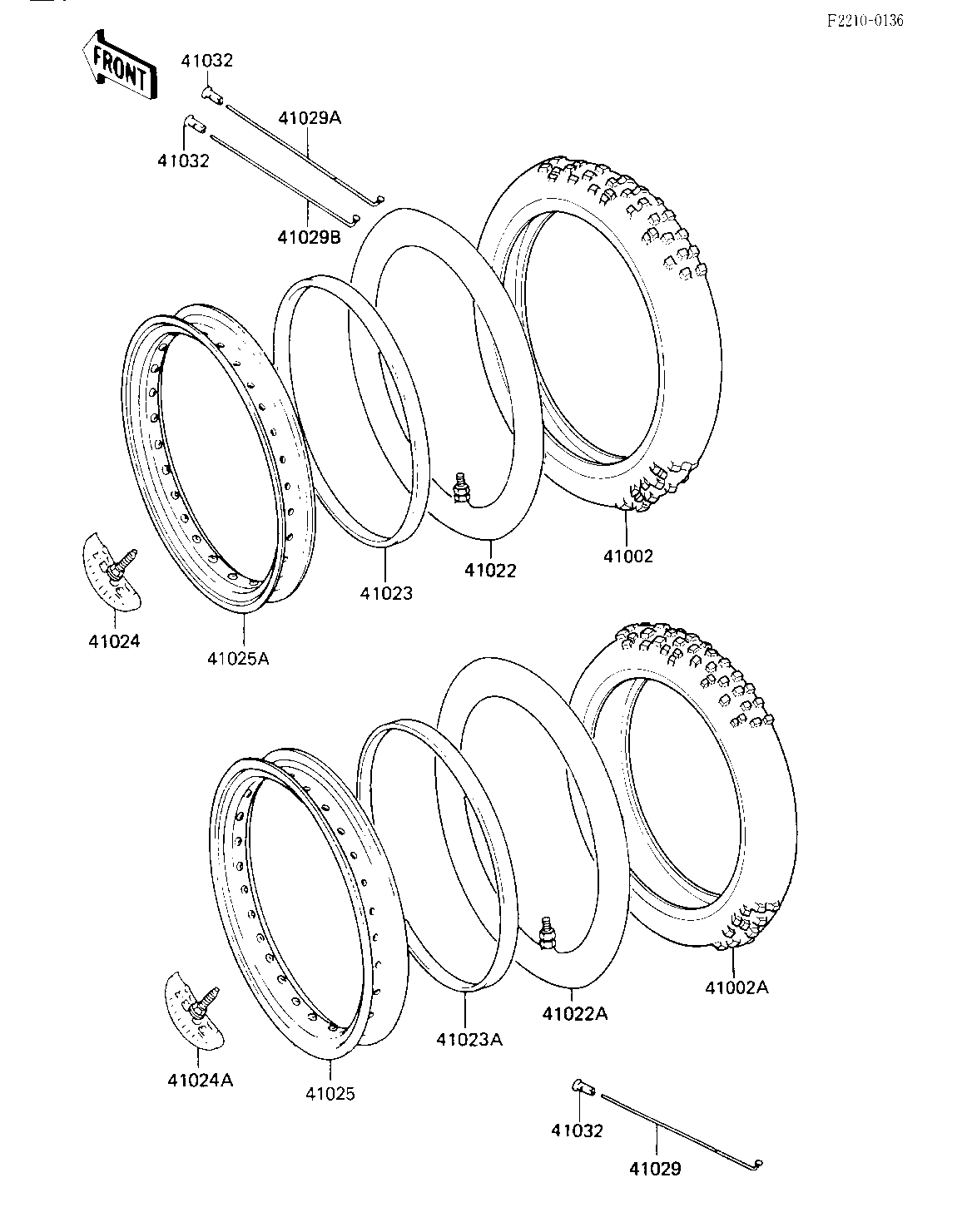

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
TIRE,FR 41002 41002-1593 1
TIRE,RR 41002A 41002-1594 1
TUBE-TIRE,80/100-21( 41022 41022-1118 1
TUBE-TIRE,100/100-18 41022A 41022-1119 1
BAND-RIM,80/100-21(D 41023 41023-1069 1
BAND-RIM,100/100-18( 41023A 41023-1070 1
PROTECTOR,BEAD 1.60A 41024 41024-010 1
PROTECTOR,BEAD,1.85B 41024A 41024-011 1
RIM,RR,1.85X18 41025 41025-1173 1
RIM,FR,1.60X21 41025A 41025-1117 1
SPOKE-INNER,RR,LH 41029 41029-1123 36
SPOKE-INNER,FR,RH 41029A 41029-1152 27
SPOKE-INNER,FR,LH 41029B 41029-1153 9
NIPPLE-SPOKE 41032 41032-1061 72
