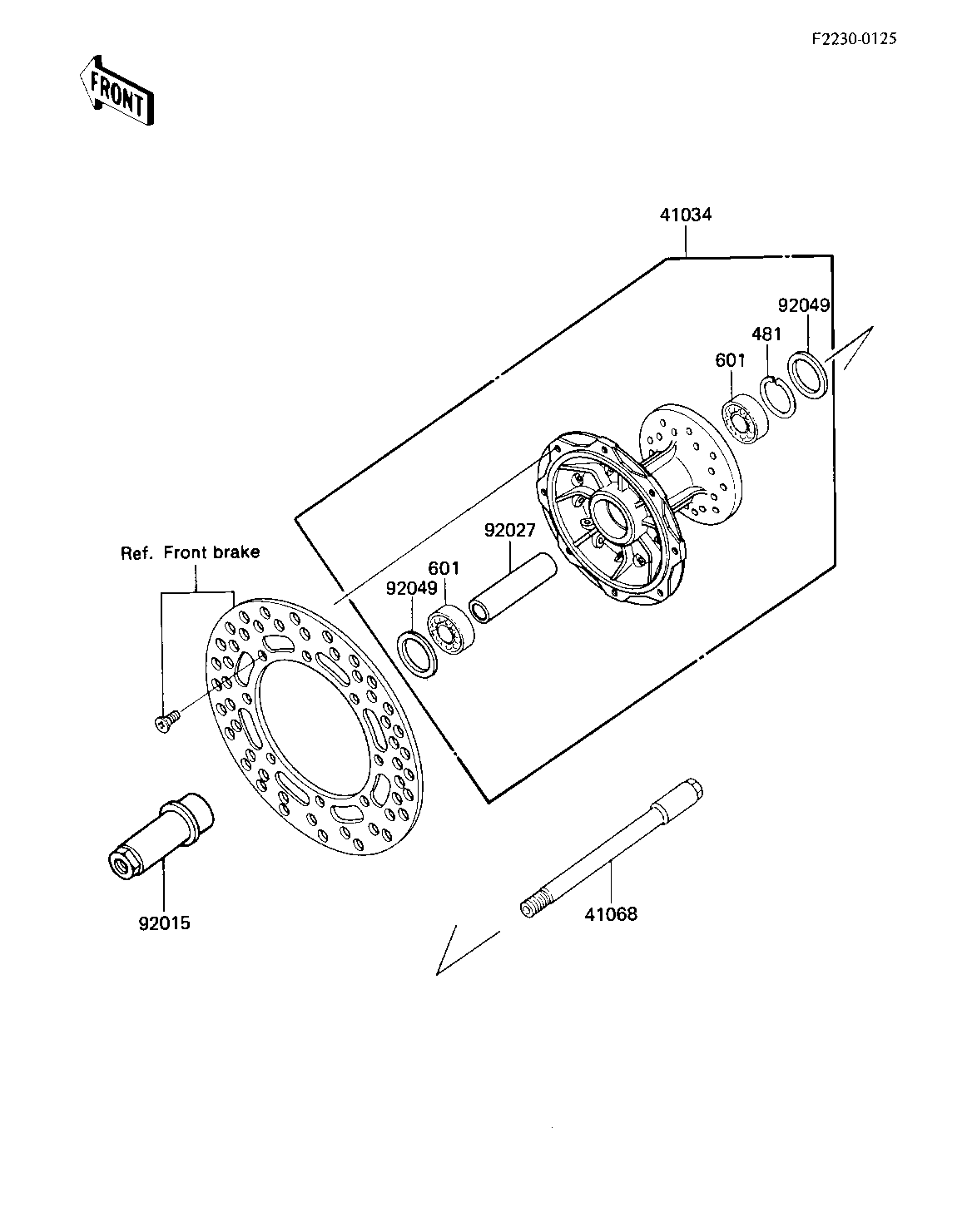

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
DRUM-ASSY,FR BRAKE 41034 41034-1115 1
AXLE,FR 41068 41068-1241 1
NUT,FR AXLE 92015 92015-1462 1
COLLAR,FR BRAKE DRUM 92027 92027-1829 1
SEAL-OIL,BSNC2 22404 92049 92049-1204 2
RING, SNAP,43.5M/M 481 92033-1040 1
BEARING BALL 601 601B6203U 2
