Parts Diagrams |

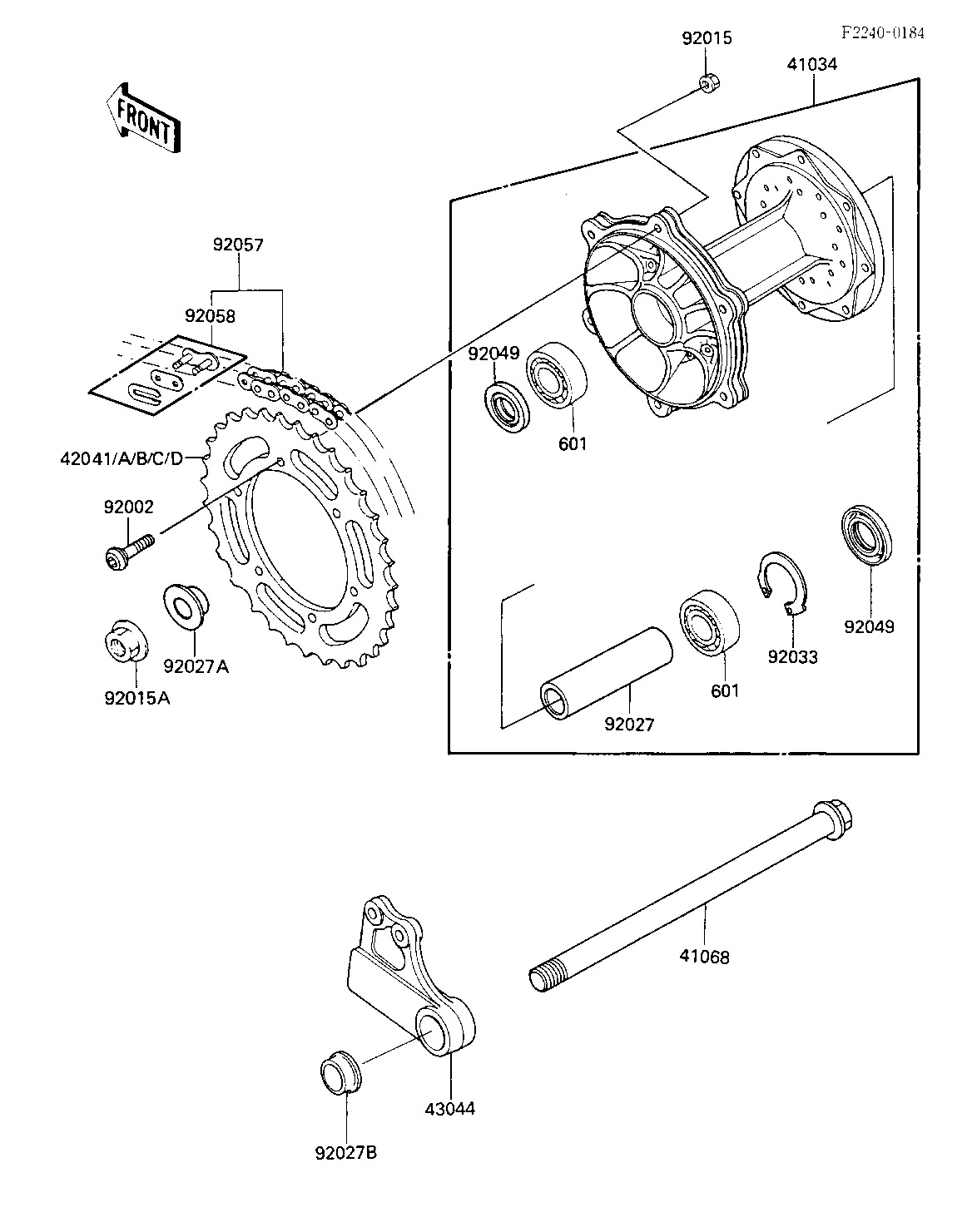

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
DRUM-ASSY,REAR BRAKE | 41034 | 41034-1139 | 1 | ||
AXLE,RR | 41068 | 41068-1180 | 1 | ||
SPROCKET-HUB,48T | 42041 | 42041-1103 | 1 | (OPTION) | |
SPROCKET-HUB,49T,AL | 42041A | 42041-1256 | 1 | (OPTION) | |
SPROCKET-HUB,45T | 42041B | 42041-1154 | 1 | (OPTION) | |
SPROCKET-HUB,46T,AL | 42041C | 42041-1193 | 1 | (OPTION) | |
SPROCKET-HUB,47T,AL | 42041D | 42041-1258 | 1 | ||
HOLDER-COMP-CALIPER | 43044 | 43044-1061 | 1 | ||
BOLT,8MM | 92002 | 92002-1387 | 6 | ||
NUT-8MM | 92015 | 92015-1143 | 6 | ||
NUT,RR AXLE,20MM | 92015A | 92015-1461 | 1 | ||
COLLAR,20.2X25.4X120 | 92027 | 92027-1942 | 1 | ||
COLLAR,20.2X25.4X120 | 92027A | 92027-1942 | 1 | ||
COLLAR,L=13 | 92027B | 92027-1944 | 1 | ||
CIRCLIP,42MM | 92033 | 92033-1041 | 1 | ||
SEAL-OIL,BJNC2 25425 | 92049 | 92049-1203 | 2 | ||
DR CHAIN DID 112L | 92057 | 92057-1200 | 1 | ||
JOINT-CHAIN,DRIVE | 92058 | 92058-1057 | 1 | ||
BEARING-BALL,#6004U | 601 | 601B6004U | 2 |
DRUM-ASSY,REAR BRAKE | |
REF # | 41034 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
AXLE,RR | |
REF # | 41068 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPROCKET-HUB,48T | |
REF # | 42041 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | (OPTION) |
SPROCKET-HUB,49T,AL | |
REF # | 42041A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | (OPTION) |
SPROCKET-HUB,45T | |
REF # | 42041B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | (OPTION) |
SPROCKET-HUB,46T,AL | |
REF # | 42041C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | (OPTION) |
SPROCKET-HUB,47T,AL | |
REF # | 42041D |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOLDER-COMP-CALIPER | |
REF # | 43044 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,8MM | |
REF # | 92002 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
NUT-8MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
NUT,RR AXLE,20MM | |
REF # | 92015A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COLLAR,20.2X25.4X120 | |
REF # | 92027 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COLLAR,20.2X25.4X120 | |
REF # | 92027A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COLLAR,L=13 | |
REF # | 92027B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CIRCLIP,42MM | |
REF # | 92033 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL-OIL,BJNC2 25425 | |
REF # | 92049 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
DR CHAIN DID 112L | |
REF # | 92057 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
JOINT-CHAIN,DRIVE | |
REF # | 92058 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BEARING-BALL,#6004U | |
REF # | 601 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
