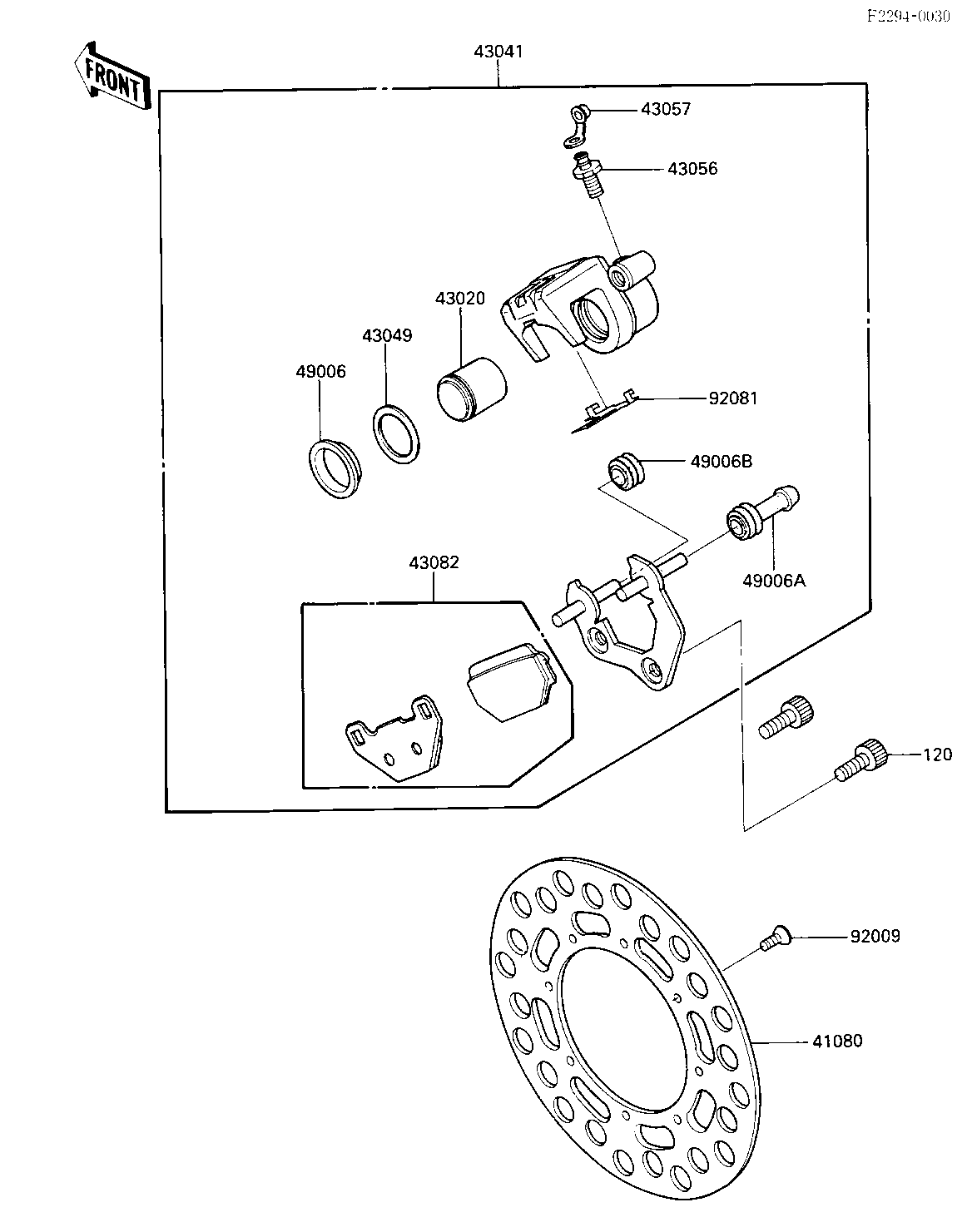

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
DISC,RR 41080 41080-1169 1
PISTON-COMP-BRAKE 43020 43020-1084 1
CALIPER-ASSY 43041 43041-1229 1
PACKING 43049 43049-1016 1
BREEDER 43056 43056-003 1
CAP,BREEDER 43057 43057-003 1
PAD-ASSY-BRAKE,FR 43082 43082-1027 1
BOOT,CALIPER 49006 49006-1053 1
BOOT,CALIPER 49006A 49006-1054 1
BOOT,CALIPER 49006B 49006-1055 1
SCREW,6X10 92009 92009-1375 8
SPRING 92081 92081-1341 1
BOLT-SOCKET,8X20 120 120P0820 2
