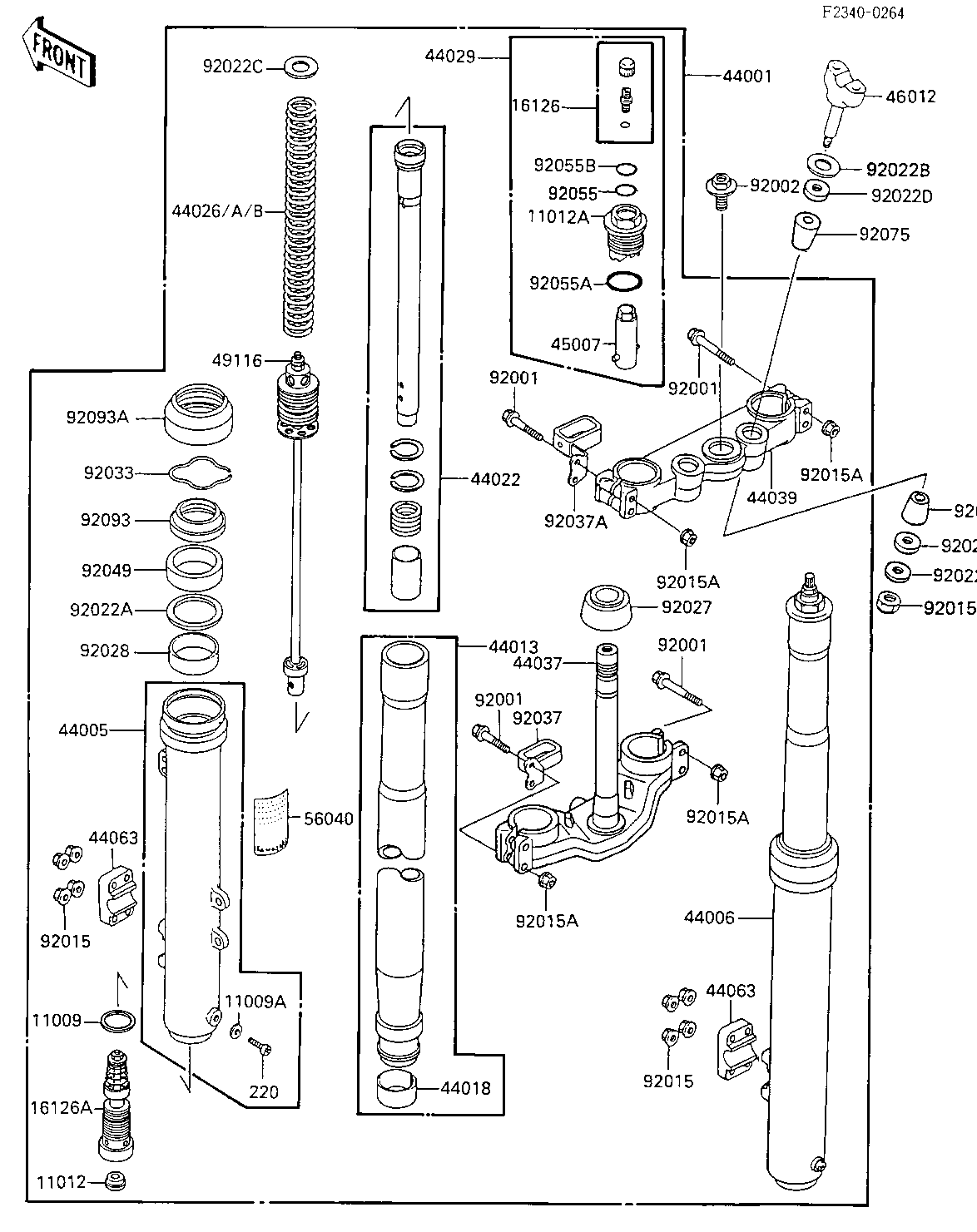

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,FORK CYLINDER | 11009 | 11009-1592 | 2 | ||
GASKET FORK DRAIN PL | 11009A | 44045-002 | 2 | ||
CAP,FORK CYLINDER | 11012 | 11012-1381 | 2 | ||
CAP | 11012A | 11012-1439 | 2 | ||
VALVE AIR | 16126 | 16126-1052 | 2 | ||
VALVE,FORK CYLINDER | 16126A | 16126-1155 | 2 | ||
FORK-FRONT | 44001 | 44001-1598 | 1 | ||
PIPE-LEFT FORK OUTER | 44005 | 44005-1244 | 1 | ||
PIPE-RIGHT FORK OUTE | 44006 | 44006-1243 | 1 | ||
PIPE-FORK INNER | 44013 | 44013-1248 | 2 | ||
PISTON-FORK | 44018 | 44018-1005 | 2 | ||
CYLINDER-FORK | 44022 | 44022-1192 | 2 | ||
SPRING-FRONT FORK,K= | 44026 | 44026-1294 | 2 | (OPTION) | |
SPRING-FRONT FORK,K= | 44026A | 44026-1324 | 2 | ||
SPRING-FRONT FORK,K= | 44026B | 44026-1314 | 2 | (OPTION) | |
SEAT-FORK SPRING | 44029 | 44029-1117 | 2 | ||
HOLDER-FORK UNDER | 44037 | 44037-1192 | 1 | ||
HOLDER-FORK UPPER | 44039 | 44039-1142 | 1 | ||
HOLDER-FRONT AXLE | 44063 | 44063-1008 | 2 | ||
ADJUSTER-SPRING,FRON | 45007 | 45007-1055 | 2 | ||
HOLDER-HANDLE | 46012 | 46012-1138 | 2 | ||
VALVE-ASSY | 49116 | 49116-1065 | 2 | ||
LABEL,FRONT FORK | 56040 | 56040-1120 | 1 | ||
BOLT | 92001 | 92001-1639 | 8 | ||
BOLT,FORK TOP | 92002 | 92002-1399 | 1 | ||
NUT-6MM | 92015 | 92015-1078 | 8 | ||
NUT,FLANGED,8MM | 92015A | 92015-1485 | 8 | ||
NUT,LOCK,10MM | 92015B | 92019-021 | 2 | ||
WASHER,10.2X28X2 | 92022 | 92022-1088 | 2 | ||
WASHER | 92022A | 92022-1299 | 2 | ||
WASHER,12.4X28X2.3,B | 92022B | 92022-1303 | 2 | ||
WASHER,FORK SPRING | 92022C | 92022-1665 | 2 | ||
WASHER | 92022D | 92022-1737 | 4 | ||
COLLAR,FRONT FORK | 92027 | 92027-1427 | 1 | ||
BUSHING | 92028 | 92028-1145 | 2 | ||
RING-SNAP | 92033 | 92033-1077 | 2 | ||
CLAMP | 92037 | 92037-1627 | 1 | ||
CLAMP | 92037A | 92037-1628 | 1 | ||
SEAL-OIL,FORK OUTER | 92049 | 92049-1104 | 2 | ||
"O"RING,FORK TOP CAP | 92055 | 92055-1062 | 2 | ||
RING-O | 92055A | 92055-1123 | 2 | ||
RING-O | 92055B | 92055-1288 | 2 | ||
DAMPER | 92075 | 92075-1776 | 4 | ||
SEAL,FORK DUST | 92093 | 92093-1086 | 2 | ||
SEAL,FORK | 92093A | 92093-1184 | 2 | ||
SCREW PAN HEAD 4X8 | 220 | 220B0408 | 2 |
