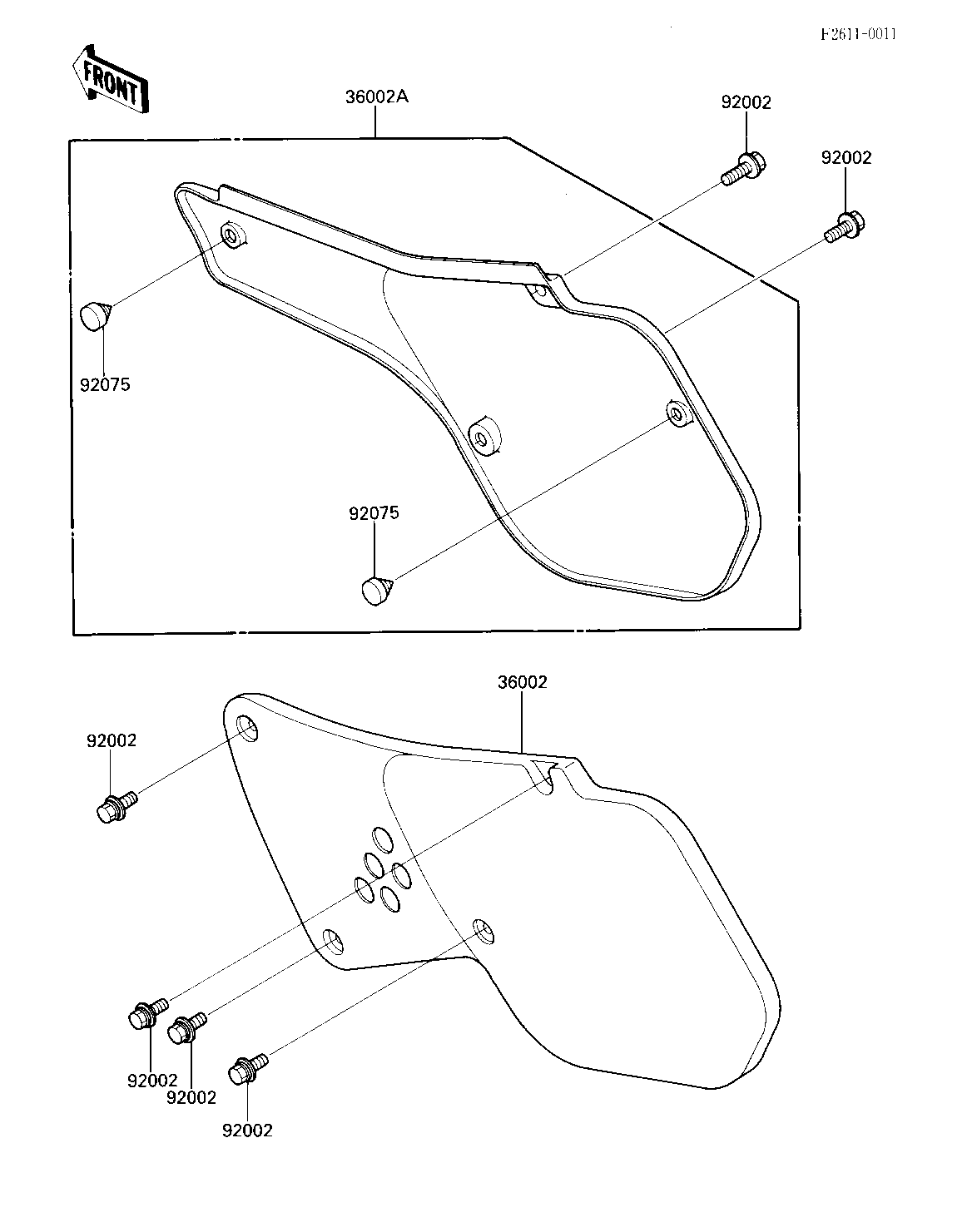

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER-SIDE,LH,L.GREE 36002 36002-5215-AE 1
COVER-SIDE,RH,L.GREE 36002A 36002-5216-AC 1
BOLT 92002 92150-1506 6
DAMPER,SIDE COVER 92075 92075-1598 2
