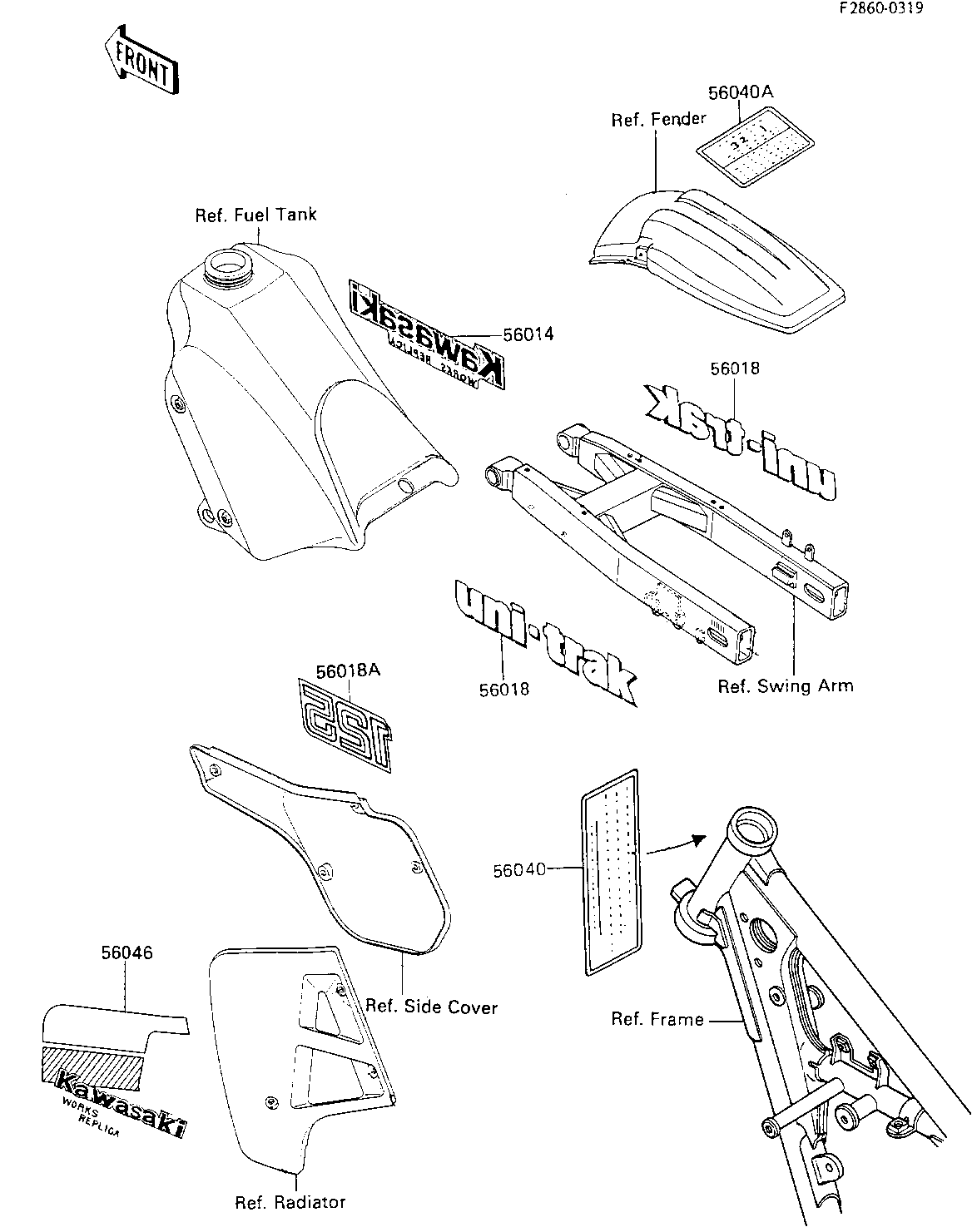

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
EMBLEM,FUEL TANK 56014 56014-1123 1
MARK,SWING ARM,UNI-T 56018 56018-1364 2
MARK,SIDE COVER,125 56018A 56018-1819 1
LABEL,NOISE 56040 56040-1101 1
LABEL-WARNING,GASOLI 56040A 56040-1129 1
PATTERN,SHROUD 56046 56046-1982 1
