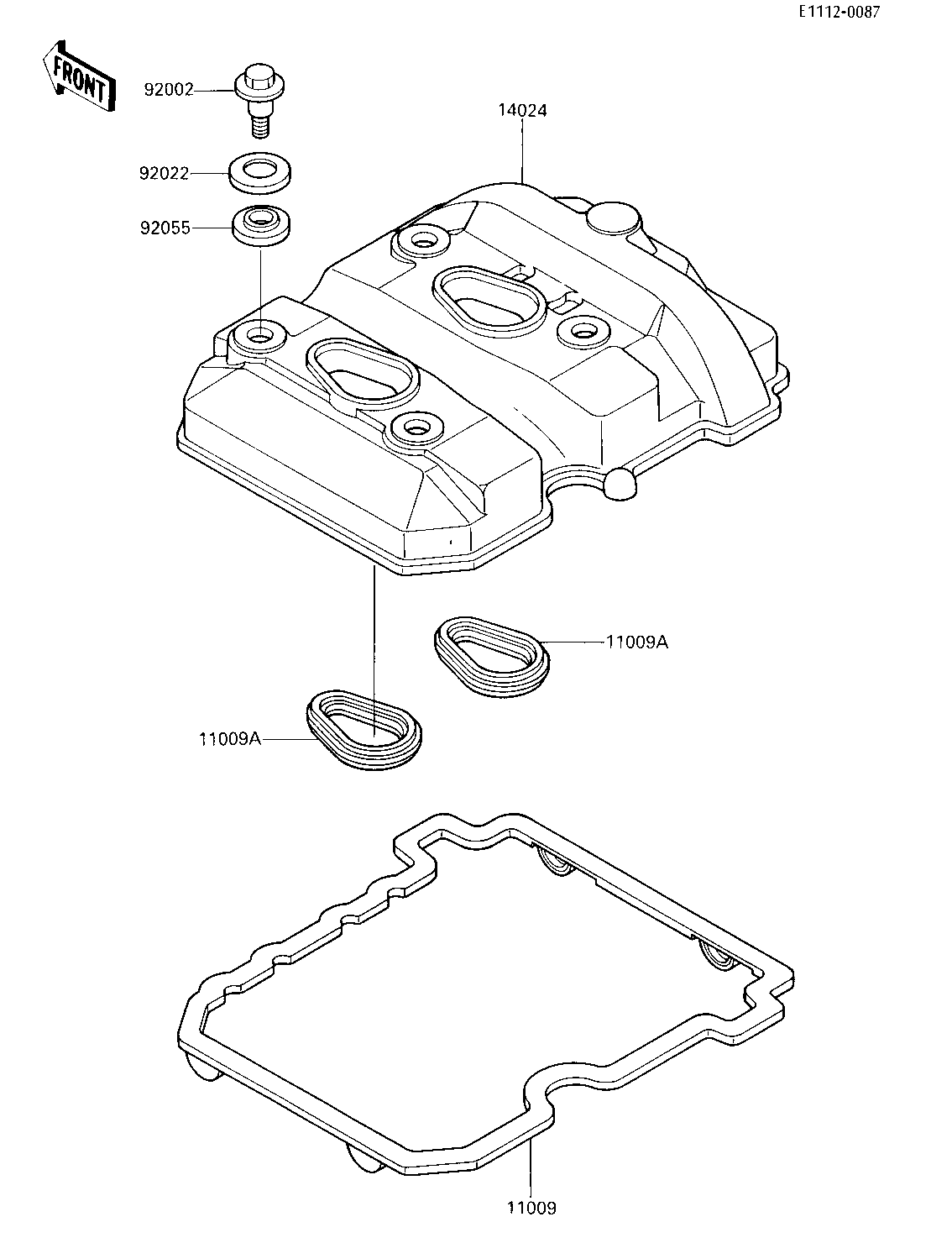

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,CYLINDER HEAD 11009 11009-1574 1
GASKET 11009A 11009-1575 2
COVER,CYLINDER HEAD 14024 14024-1209 1
BOLT 92002 92150-1447 4
WASHER,HEAD COVER BOL 92022 92022-1637 4
RING-O,HEAD COVER BOL 92055 92055-1225 4
