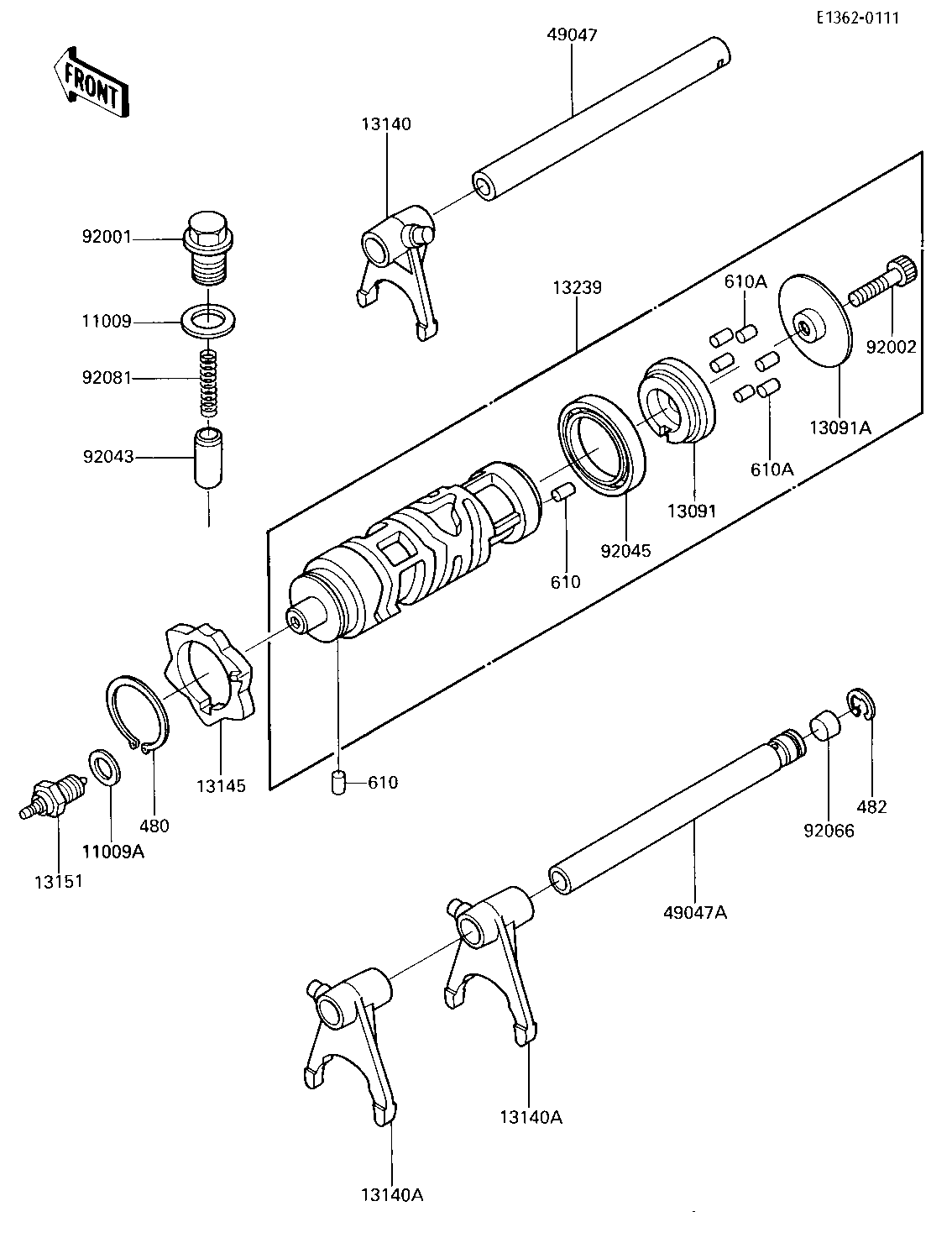

1987 Ninja® 250R - GEAR CHANGE DRUM & FORKS
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,15.5X22X1 | 11009 | 11009-1008 | 1 | ||
GASKET CHECK VALVE | 11009A | 92065-058 | 1 | ||
HOLDER | 13091 | 13091-1417 | 1 | ||
HOLDER,CHANGE DRUM | 13091A | 13091-1464 | 1 | ||
FORK-SHIFT,IN | 13140 | 13140-1148 | 1 | ||
FORK-SHIFT,OUT | 13140A | 13140-1149 | 2 | ||
CAM-CHANGE DRUM | 13145 | 13145-1058 | 1 | ||
SWITCH,NEUTRAL | 13151 | 13151-1007 | 1 | ||
DRUM-ASSY-CHANGE | 13239 | 13239-1131 | 1 | ||
ROD-SHIFT,IN | 49047 | 49047-1066 | 1 | ||
ROD-SHIFT,OUT | 49047A | 49047-1067 | 1 | ||
BOLT,NEUTRAL POSITION | 9200 | 92001-1037 | 1 | ||
BOLT,SOCKET,6X25 | 92002 | 92002-1696 | 1 | ||
PIN-NEUTRAL POSITION | 92043 | 92043-076 | 1 | ||
BEARING-BALL,6806 | 92045 | 92045-1152 | 1 | ||
PLUG | 92066 | 92066-1246 | 1 | ||
SPRING | 92081 | 92081-112 | 1 | ||
CIRCLIP,30MM | 480 | 480J3000 | 1 | ||
CIRCLIP 10MM | 482 | 482J0100 | 1 | ||
PIN-DOWEL,4X6 | 610 | 610A0406 | 2 | ||
PIN DOWEL 4X8 | 610A | 610A0408 | 6 |
