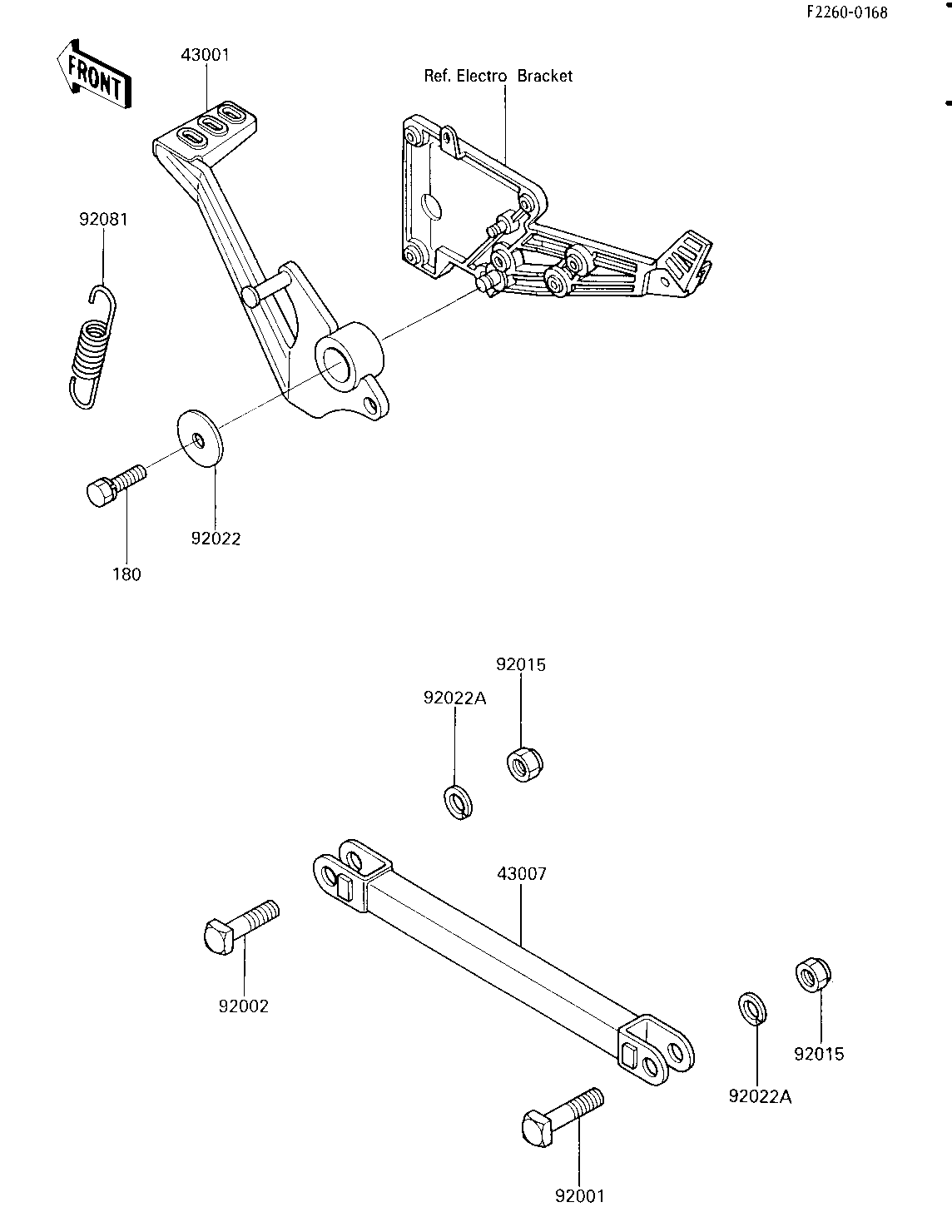

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LEVER-BRAKE,PEDAL 43001 43001-1205 1
ROD-TORQUE 43007 43007-1124 1
BOLT,SQUARE HEAD 92001 92001-1307 1
BOLT,10X32 92002 92002-1708 1
NUT,LOCK,10MM 92015 92019-021 2
WASHER,7X28X1.6 92022 92022-1282 1
WASHER,SPRING,10MM 92022A 92022-1540 2
SPRING,BRAKE PEDAL 92081 92081-1604 1
BOLT-UPSET-WS 180 180D0616 1
