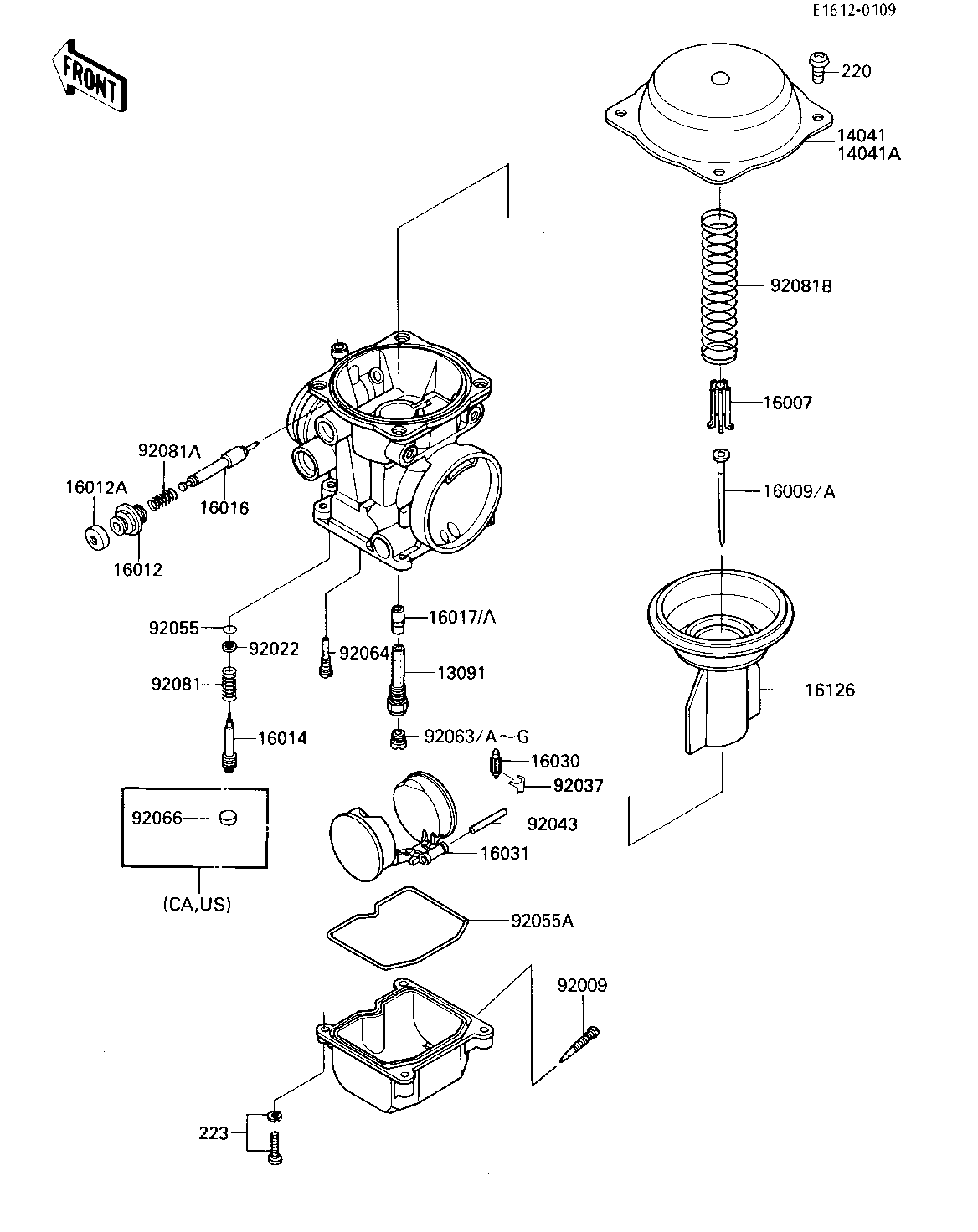

1986 ZL600 Eliminator - CARBURETOR PARTS

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER,NEEDLE JET 13091 13091-1406 4
TOP-CHAMBER,MIXING,OU 14041 14041-1076 2
TOP-CHAMBER,MIXING,IN 14041A 14041-1077 2
SEAT-SPRING 16007 16007-1120 4
NEEDLE-JET,N27X 16009 16009-1309 4 CA
NEEDLE-JET,N27Z (Canada) 16009A 16009-1310 4 CN
CAP-STARTER PLUNGER 16012 16012-1051 4
CAP-STARTER PLUNGER 16012A 16012-1052 4
SCREW-PILOT AIR 16014 16014-1054 4
PLUNGER,STARTER 16016 16016-1061 4
JET-NEEDLE (Canada) 16017 16017-1292 4 CN
JET-NEEDLE 16017A 16017-1314 4 CA
FLOAT VALVE 16030 16030-1007 4
FLOAT 16031 16031-1056 4
VALVE,VACUUM 16126 16126-1159 4
SCREW,DRAIN 92009 92009-1095 4
WASHER,PLAIN 92022 92022-1003 4
CLIP,FLOAT VALVE 92037 16044-007 4
PIN,FLOAT 92043 92043-1148 4
O RING,PILOT ADJ 92055 92055-1002 4
RING-O,FLOAT CHAMBER 92055A 92055-1222 4
MAIN JET,2ND,#95 92063 92063-1001 4
MAIN JET,2ND,#90 92063A 92063-1003 4 CN
MAIN JET,2ND,#90 92063B 92063-1003 4 CA
MAIN JET,#92,2ND 92063C 92063-1004 4 CA
MAIN JET,#92,2ND 92063D 92063-1004 4 CN
MAIN JET,#2ND,#98 92063E 92063-1005 4 CA
MAIN JET,2ND,#85 92063F 92063-1023 4 CN
MAIN JET,2ND #88 92063G 92063-1024 4
PILOT JET,#35 92064 92064-1035 4
PLUG,PILOT SCREW 92066 92066-1051 4 CA
SPRING,PIROT ADJ SCRW 92081 92081-1002 4
SPRING,STARTER PLUNGE 92081A 92081-1761 4
SPRING,VACUUM VALVE 92081B 92081-1912 4
SCREW PAN HEAD 4X8 220 220B0408 15
SCREW-PAN-WS-CROS 223 223C0416 16
