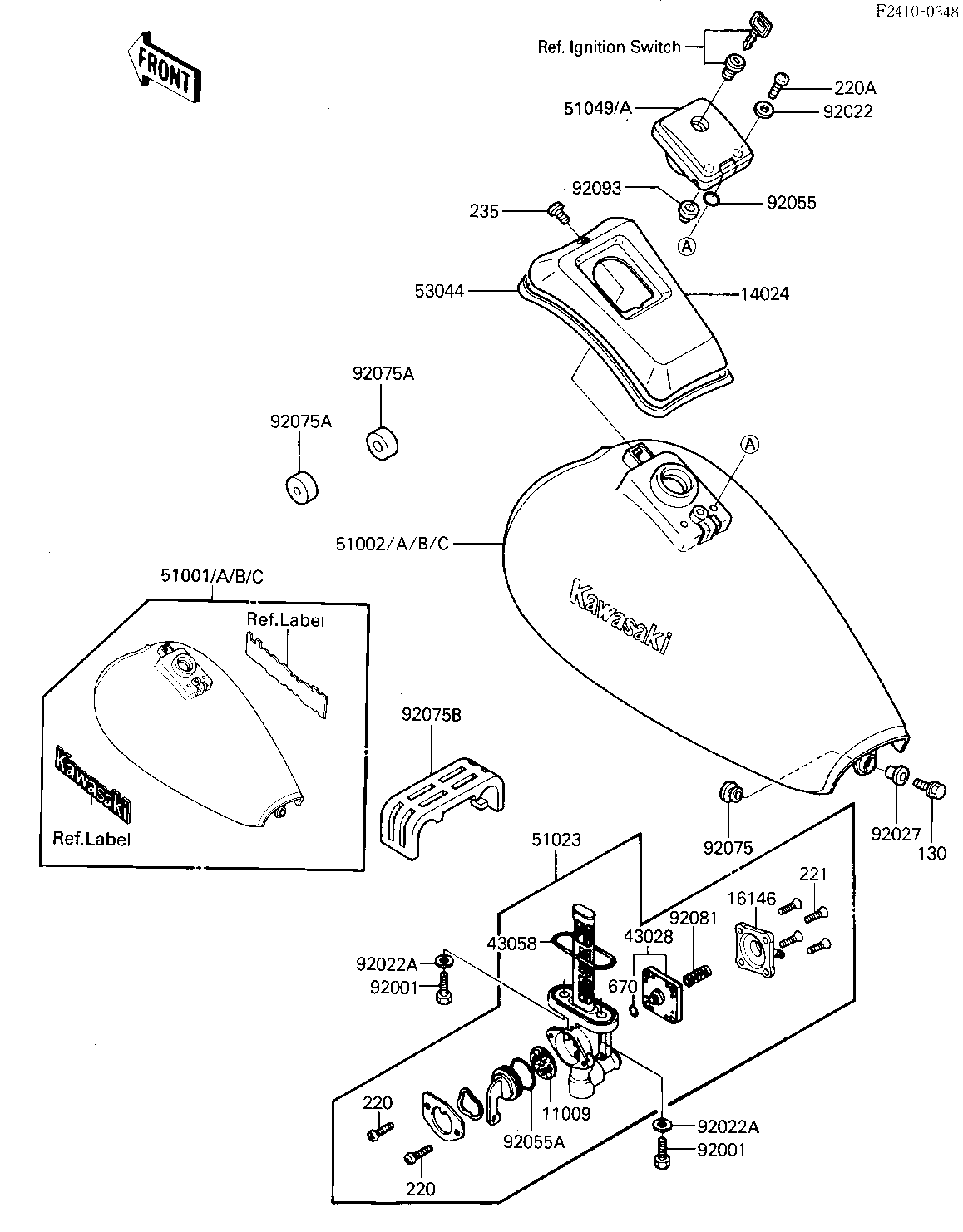

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,FUEL TAP | 11009 | 11009-1188 | 1 | ||
COVER,FUEL TANK CAP,E | 14024 | 14024-1237-H8 | 1 | US | |
COVER-ASSY,TAP DIAPHR | 16146 | 16146-1010 | 1 | ||
DIAPHRAGM VALVE ASSY | 43028 | 43028-1021 | 1 | ||
"O" RING | 43058 | 51039-003 | 1 | ||
TANK-COMP-FUEL,C.W.RE | 51001 | 51001-1242-H3 | 1 | US | |
TANK-COMP-FUEL,EBONY | 51001A | 51001-1242-H8 | 1 | US | |
TANK-COMP-FUEL,C.W.RE | 51001B | 51001-1255-H3 | 1 | CA | |
TANK-COMP-FUEL,EBONY | 51001C | 51001-1255-H8 | 1 | CA | |
TANK-COMP-FUEL,EBONY | 51002 | 51002-5221-H8 | 1 | CN | |
TANK-COMP-FUEL,L.RED | 51002A | 51002-5222-7V | 1 | CN | |
TANK-COMP-FUEL,EBONY | 51002B | 51002-5223-H8 | 1 | CA | |
TANK-COMP-FUEL,L.RED | 51002C | 51002-5224-7V | 1 | CA | |
TAP ASSY,FUEL | 51023 | 51023-1157 | 1 | ||
CAP-TANK,FUEL | 51049 | 51049-1071 | 1 | ||
TRIM | 53044 | 53044-1160 | 1 | ||
BOLT,6X20,FUEL TAP | 92001 | 92001-1091 | 2 | ||
WASHER,PLAIN | 92022 | 92022-1038 | 2 | ||
WASHER-PLAIN | 92022A | 92022-183 | 2 | ||
COLLAR | 92027 | 92027-1920 | 1 | ||
"0" RING | 92055 | 92055-1023 | 2 | ||
"0" RING,FUEL TAP LEV | 92055A | 92055-1085 | 1 | ||
DAMPER | 92075 | 92075-1057 | 1 | ||
DAMPER RUBBER,FL TANK | 92075A | 92075-125 | 2 | ||
DAMPER,FUEL TANK,CNT | 92075B | 92075-1848 | 1 | ||
SPRING,DIAPHRAGM VALV | 92081 | 92081-1240 | 1 | ||
OIL SEAL,FUEL TANK | 92093 | 92093-1030 | 1 | CA | |
BOLT,FLANGED,6X25 | 130 | 130B0625 | 1 | ||
SCREW PAN HEAD 3X8 | 220 | 220B0308 | 2 | ||
SCREW PAN HEAD 5X10 | 220A | 220B0510 | 2 | ||
SCREW-CSK-CROS,4X14 | 221 | 221B0414 | 4 | ||
SCREW (5X10) | 235 | 235C0510 | 1 | ||
"O" RING,4MM | 670 | 670B1504 | 1 |
